Physics equipment

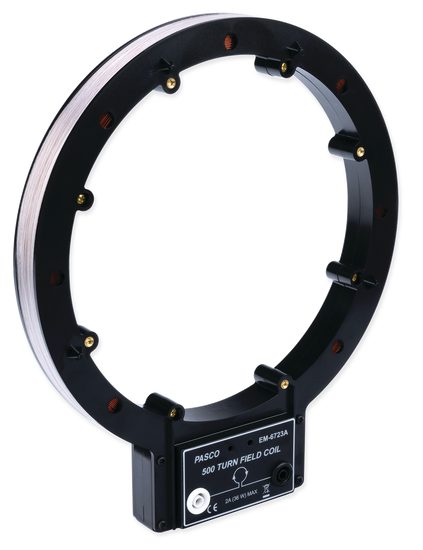

500-Turn Field Coil
A 500-turn wire coil on a bobbin that accepts banana-plug contacts for current or voltage measurement. It can also be mounted on a PASCO Helmholtz base.
Specifications
- Brand
- PASCO · EM-6723
- Turns
- 500
- Maximum Current
- 2 A
- Wire
- copper, 22 AWG (0.64 mm diameter)
- Inner Radius
- 10.06 cm
- Out Radius
- 11.37 cm
- Coil Width
- 1.6 cm
- Body Material
- Polycarbonate plastic
On request
Variants & pricing
500-Turn Field Coil
EM-6723On request
