Photo 1 of 2
Power supplies & measuring instruments

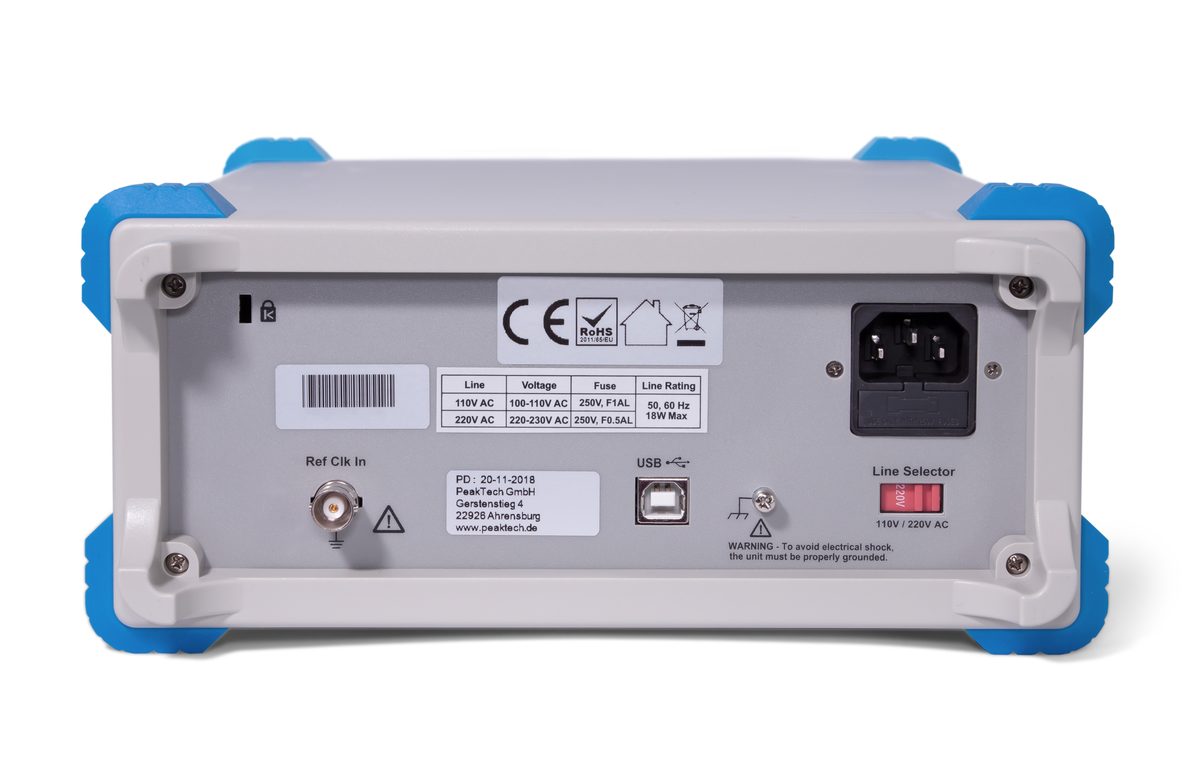

Arbitrary waveform generator, 1 channel, 1 µHz–5 MHz, P 4120
1-channel arbitrary waveform generator with graphical controls and menu buttons. Includes multiple stored waveforms and an internal editor for creating new waveforms. Suitable for education, research and development.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 4120
- USB
- Yes
- Amplitude
- 0 - 25 Vpp
- Bandwidth
- 5 MHz
- Channels
- 1 channel
- Display Type
- Colour TFT
- Freq. resolution
- 1 µHz
- Sampling Rate
- 125 MS/s
- Sine
- 1 µHz - 5 MHz
- Square
- 1 µHz - 5 MHz
- Ramp
- 1 µHz - 1 MHz
- Pulse
- 1 µHz - 5 MHz
- Arbitrary
- 1 µHz - 5 MHz
from
€330.00
Variants & pricing
Arbitrary waveform generator, 1 channel, 1 µHz–5 MHz, P 4120
P 4120€330.00
