Photo 1 of 2
Microscopes & optics

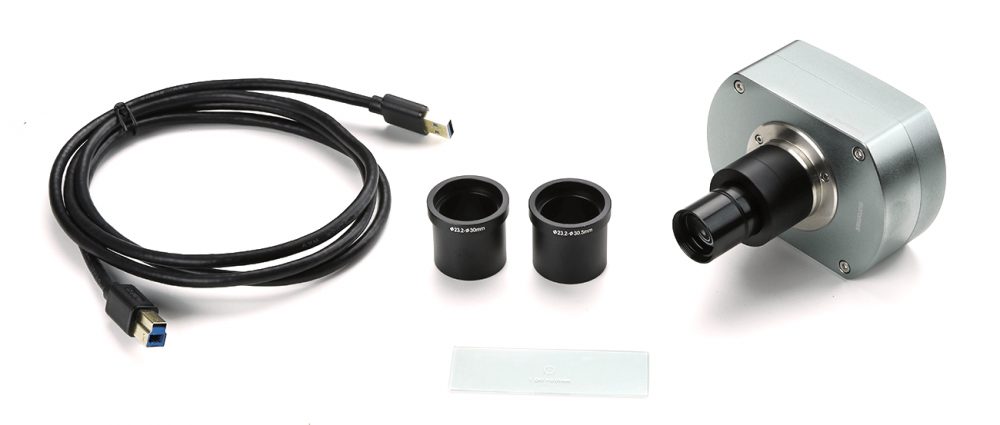

CMEX-5/10/20 Pro Microscopy Cameras
The CMEX-5/10/20 Pro are high-speed microscopy cameras with 5.1 to 20 megapixel CMOS sensors, 12-bit ADC and 24-bit colour depth. They deliver great colour reproduction and a high signal-to-noise ratio, and connect via a USB 3.0 interface (USB 2.0 compatible) with excellent software.
Specifications
- Brand
- Euromex · DC.5000 +1
- Type
- High speed cameras
- Sensor
- 5.1 to 20 Mpix CMOS
- ADC
- 12 bits
- Color depth
- 24 bits
- Signal/noise
- High signal/noise ratio
- Interface
- USB 3.0 (USB 2.0 compatible)
from
€501.00
Variants & pricing
- Píxels (Mp)
- 5.1
- Sensor
- 1/2.5” CMOS
- Pixel size (μm)
- 2.2 x 2.2
- Resolutions
- 2560 x 19221280 x 960640 x 480
- Max. frames (p/sec)
- 1439100
- Signal/ Noise (db)
- 39
- Dynamic (db)
- 68
- Sensitivity V/lux-sec
- 1.76
DC.5000€501.00- Píxels (Mp)
- 10
- Sensor
- 1/2.3” CMOS
- Pixel size (μm)
- 1.67 x 1.67
- Resolutions
- 3584 x 27461792 x 1372
- Max. frames (p/sec)
- 825
- Signal/ Noise (db)
- 35.5
- Dynamic (db)
- 63.5
- Sensitivity V/lux-sec
- 0.31
DC.10000€542.00
