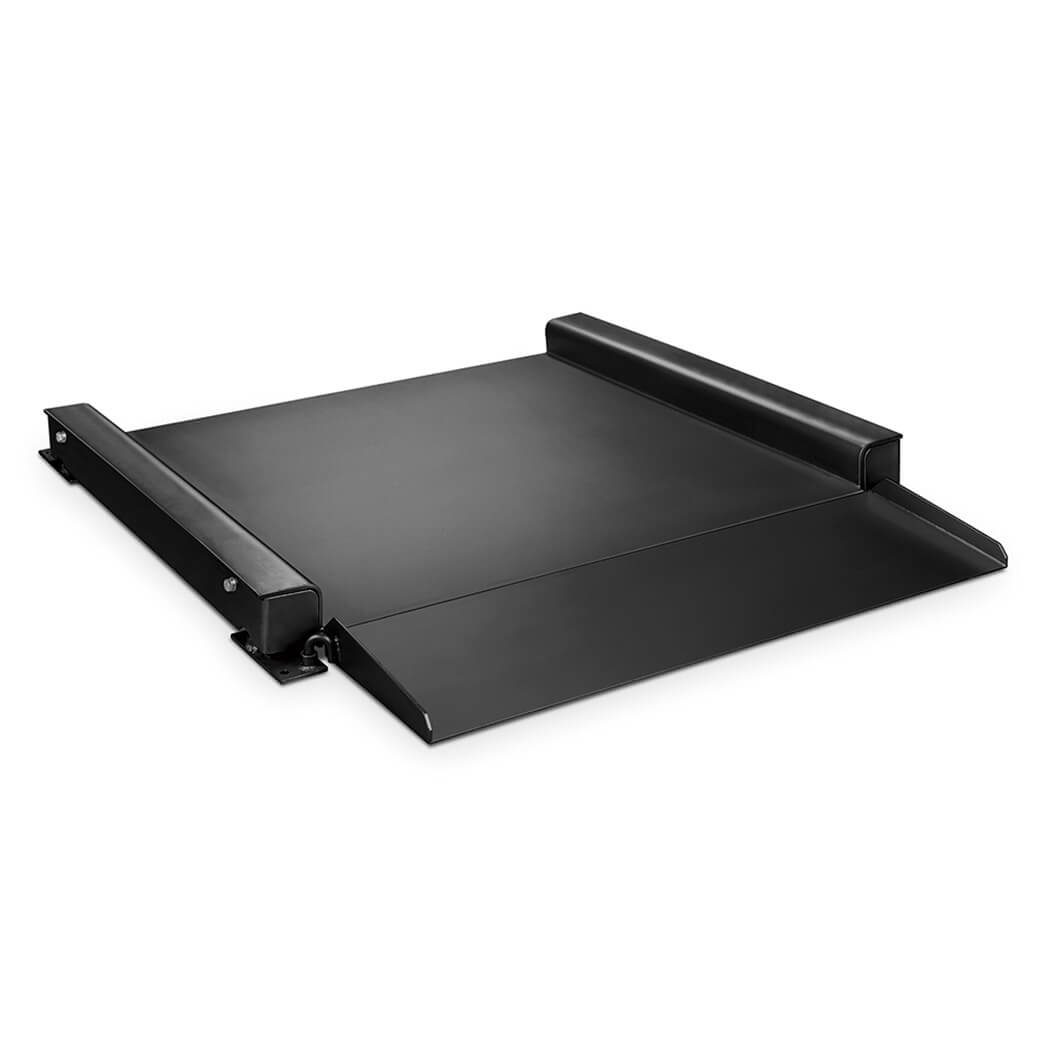

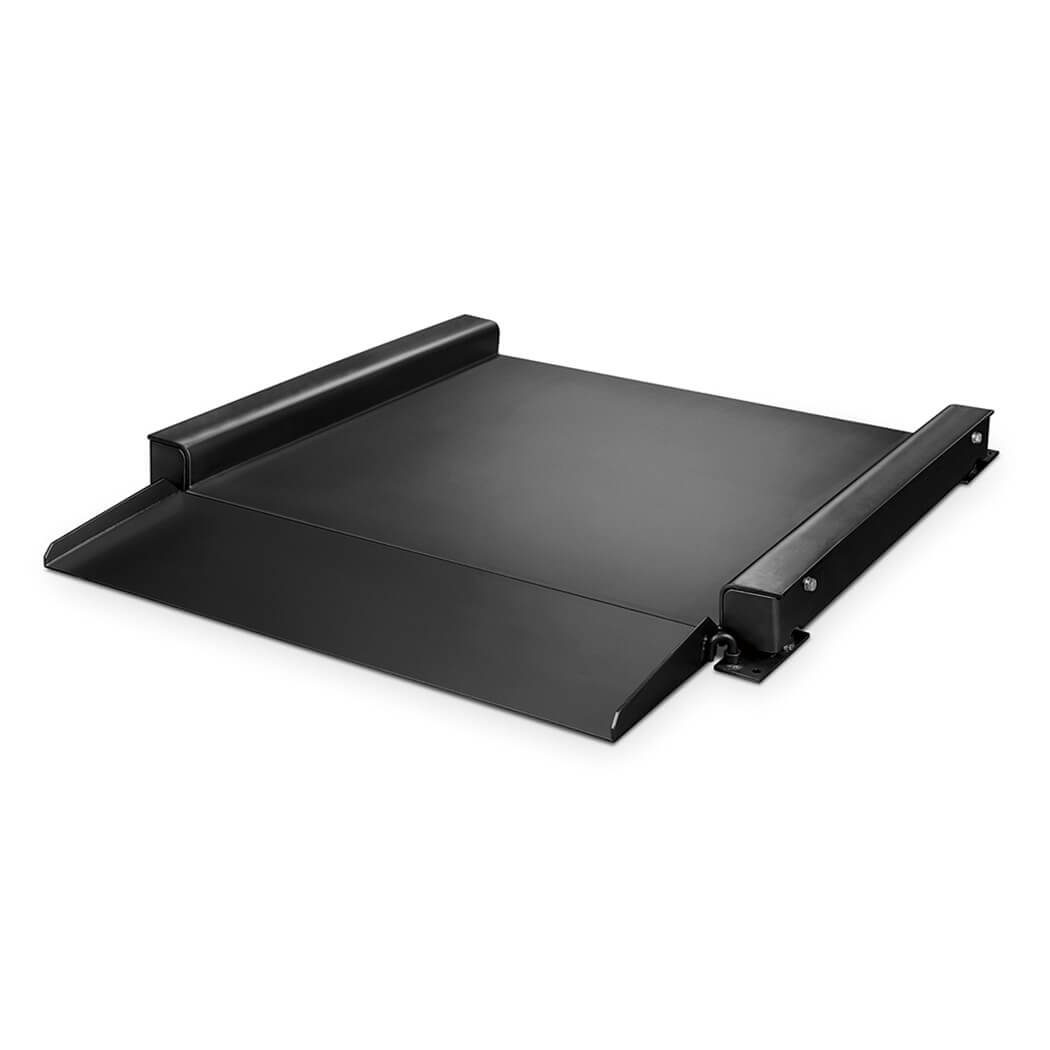

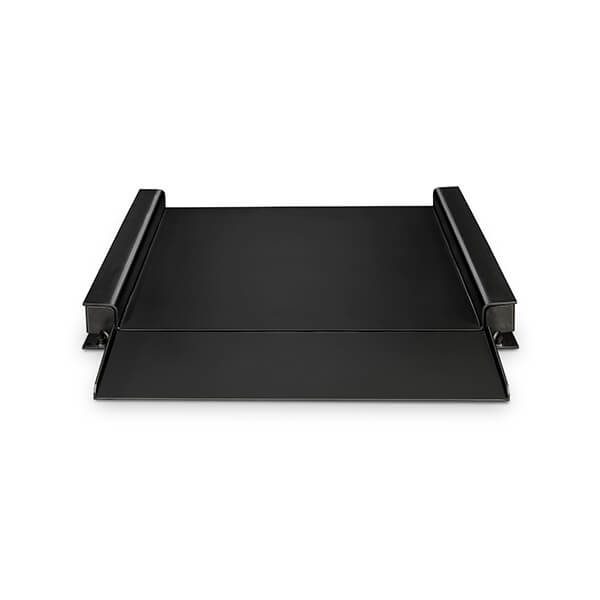

Defender™ 5000 low-profile floor platforms

Ultra-low painted steel platforms with a built-in ramp and four alloy steel load cells with adjustable feet, for drive-through weighing without a pit.

Specifications

Brand: OHAUS · 30540661 +1
Maximum Capacity: 600–1500 kg
Readability: 0.2–0.5 kg
Readability (Certified): 0.2–0.5 kg
Platform Size: 1000 mm x 1000 mm / 1250 mm x 1250 mm
Legal for Trade: EC Type Approvable
Protection Rating: IP65
Dimensions: 1300 mm x 114 mm x 1186 mm (LxHxW) / 1550 mm x 114 mm x 1436 mm (LxHxW)
Net Weight: 136–195 kg
Platform Construction: Painted Steel
Working Environment: -10°C – 40°C, 85%RH, non-condensing

from

€1,955.00

All options (2)

Variants & pricing

Maximum Capacity	Readability	Readability (Certified)	Platform Size	Dimensions	Net Weight	Cat. No.	Price	Quantity	Add
600 kg	0.2 kg	0.2 kg	1,000 mm x 1,000 mm	1,300 mm x 114 mm x 1,186 mm (LxHxW)	136 kg	30540661	€1,955.00
1,500 kg	0.5 kg	0.5 kg	1,250 mm x 1,250 mm	1,550 mm x 114 mm x 1,436 mm (LxHxW)	195 kg	30540662	€2,195.00

Maximum Capacity
600 kg
Readability
0.2 kg
Readability (Certified)
0.2 kg
Platform Size
1,000 mm x 1,000 mm
Dimensions
1,300 mm x 114 mm x 1,186 mm (LxHxW)
Net Weight
136 kg
30540661€1,955.00
Maximum Capacity
1,500 kg
Readability
0.5 kg
Readability (Certified)
0.5 kg
Platform Size
1,250 mm x 1,250 mm
Dimensions
1,550 mm x 114 mm x 1,436 mm (LxHxW)
Net Weight
195 kg
30540662€2,195.00
