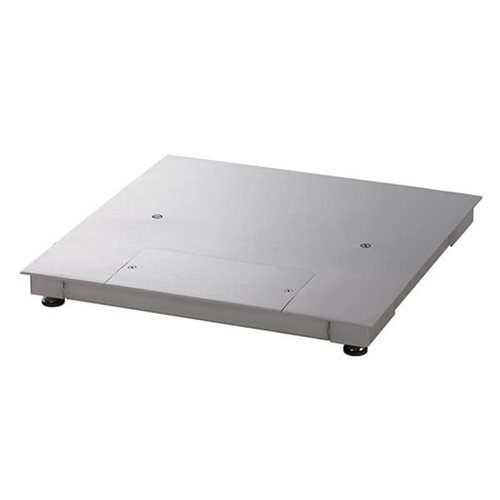

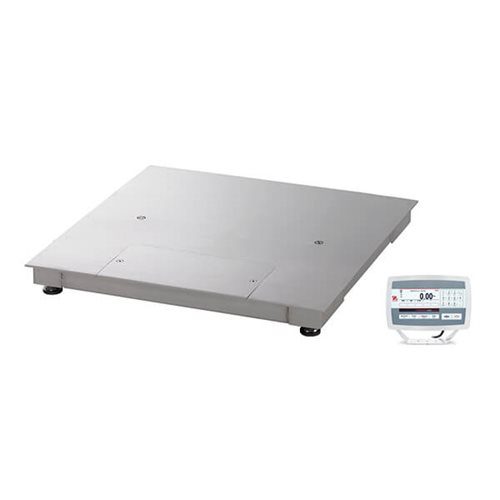

Defender™ 5000 washdown DF52 floor scales

Complete stainless steel floor and pit-mount scales for wet industrial areas, with four hermetically sealed IP68 load cells and a washdown indicator.

Specifications

Brand: OHAUS · 30525406 +21
Maximum Capacity: 300–3000 kg
Readability: 0.05–1 kg
Readability (Certified): 0.1–1 kg
Platform Size: 800 mm x 800 mm / 1000 mm x 1000 mm / 1500 mm x 1250 mm / 1500 mm x 1500 mm
Legal for Trade: EC Type Approvable / EC Type Approved
Dimensions: 800 mm x 90 mm x 800 mm (LxHxW) / 1000 mm x 90 mm x 1000 mm (LxHxW) / 1500 mm x 90 mm x 1250 mm (LxHxW) / 1500 mm x 90 mm x 1500 mm (LxHxW)
Battery Life: 20 Hours with Rechargeable Battery
Units of Measurement: Metric Tons / Gram / Kilogram / Pound / Tonne / Custom / Ounce / Pound:Ounce / Metric Tons / Gram / Kilogram
Display: Dot matrix LCD with white LED backlight
Working Environment: -10°C – 40°C, 85%RH, non-condensing
Tare Range: To capacity by subtraction
Outputs: 4 - 20mA / 2 In/4 Out digital I/O
Platform Construction: Stainless Steel
Net Weight: 77.78–207.78 kg
Protection Rating: IP67
Power: Rechargeable Battery (Not Included) / AC Power (Included)
Communication: Ethernet (Available as an Accessory) / 2nd RS232/RS485/USB (available as an accessory) / RS232 (Included) / WiFi/Bluetooth (available as an accessory)

from

€4,940.00

All options (22)

Variants & pricing

Maximum Capacity	Readability	Readability (Certified)	Platform Size	Dimensions	Units of Measurement	Legal for Trade	Net Weight	Cat. No.	Price
300 kg	0.05 kg	0.1 kg	800 mm x 800 mm	800 mm x 90 mm x 800 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	77.78 kg	30525406	€4,940.00
300 kg	0.1 kg	0.1 kg	800 mm x 800 mm	800 mm x 90 mm x 800 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	77.78 kg	30525438	€5,060.00
300 kg	0.05 kg	0.1 kg	1,000 mm x 1,000 mm	1,000 mm x 90 mm x 1,000 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	101.78 kg	30525408	€5,425.00
300 kg	0.1 kg	0.1 kg	1,000 mm x 1,000 mm	1,000 mm x 90 mm x 1,000 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	101.78 kg	30525440	€5,550.00
600 kg	0.1 kg	0.2 kg	800 mm x 800 mm	800 mm x 90 mm x 800 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	77.78 kg	30525407	€4,940.00
600 kg	0.2 kg	0.2 kg	800 mm x 800 mm	800 mm x 90 mm x 800 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	77.78 kg	30525439	€5,060.00
600 kg	0.1 kg	0.2 kg	1,000 mm x 1,000 mm	1,000 mm x 90 mm x 1,000 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	101.78 kg	30525409	€5,385.00
600 kg	0.2 kg	0.2 kg	1,000 mm x 1,000 mm	1,000 mm x 90 mm x 1,000 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	101.78 kg	30525441	€5,510.00
600 kg	0.1 kg	0.2 kg	1,500 mm x 1,250 mm	1,500 mm x 90 mm x 1,250 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	173.78 kg	30525411	€6,750.00
600 kg	0.2 kg	0.2 kg	1,500 mm x 1,250 mm	1,500 mm x 90 mm x 1,250 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	173.78 kg	30525443	€6,865.00
600 kg	0.1 kg	0.2 kg	1,500 mm x 1,500 mm	1,500 mm x 90 mm x 1,500 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	207.78 kg	30525414	€7,175.00
600 kg	0.2 kg	0.2 kg	1,500 mm x 1,500 mm	1,500 mm x 90 mm x 1,500 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	207.78 kg	30525446	€7,275.00
1,500 kg	0.2 kg	0.5 kg	1,000 mm x 1,000 mm	1,000 mm x 90 mm x 1,000 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	101.78 kg	30525410	€5,425.00
1,500 kg	0.5 kg	0.5 kg	1,000 mm x 1,000 mm	1,000 mm x 90 mm x 1,000 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	101.78 kg	30525442	€5,550.00
1,500 kg	0.2 kg	0.5 kg	1,500 mm x 1,250 mm	1,500 mm x 90 mm x 1,250 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	173.78 kg	30525412	€6,750.00
1,500 kg	0.5 kg	0.5 kg	1,500 mm x 1,250 mm	1,500 mm x 90 mm x 1,250 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	173.78 kg	30525444	€6,865.00
1,500 kg	0.2 kg	0.5 kg	1,500 mm x 1,500 mm	1,500 mm x 90 mm x 1,500 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	207.78 kg	30525415	€7,190.00
1,500 kg	0.5 kg	0.5 kg	1,500 mm x 1,500 mm	1,500 mm x 90 mm x 1,500 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	207.78 kg	30525447	€7,305.00
3,000 kg	0.5 kg	1 kg	1,500 mm x 1,250 mm	1,500 mm x 90 mm x 1,250 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	173.78 kg	30525413	€6,750.00
3,000 kg	1 kg	1 kg	1,500 mm x 1,250 mm	1,500 mm x 90 mm x 1,250 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	173.78 kg	30525445	€6,865.00
3,000 kg	0.5 kg	1 kg	1,500 mm x 1,500 mm	1,500 mm x 90 mm x 1,500 mm (LxHxW)	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce	EC Type Approvable	207.78 kg	30525416	€7,190.00
3,000 kg	1 kg	1 kg	1,500 mm x 1,500 mm	1,500 mm x 90 mm x 1,500 mm (LxHxW)	Metric Tons;Gram;Kilogram	EC Type Approved	207.78 kg	30525448	€7,305.00

Maximum Capacity
300 kg
Readability
0.05 kg
Readability (Certified)
0.1 kg
Platform Size
800 mm x 800 mm
Dimensions
800 mm x 90 mm x 800 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
77.78 kg
30525406€4,940.00
Maximum Capacity
300 kg
Readability
0.1 kg
Readability (Certified)
0.1 kg
Platform Size
800 mm x 800 mm
Dimensions
800 mm x 90 mm x 800 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
77.78 kg
30525438€5,060.00
Maximum Capacity
300 kg
Readability
0.05 kg
Readability (Certified)
0.1 kg
Platform Size
1,000 mm x 1,000 mm
Dimensions
1,000 mm x 90 mm x 1,000 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
101.78 kg
30525408€5,425.00
Maximum Capacity
300 kg
Readability
0.1 kg
Readability (Certified)
0.1 kg
Platform Size
1,000 mm x 1,000 mm
Dimensions
1,000 mm x 90 mm x 1,000 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
101.78 kg
30525440€5,550.00
Maximum Capacity
600 kg
Readability
0.1 kg
Readability (Certified)
0.2 kg
Platform Size
800 mm x 800 mm
Dimensions
800 mm x 90 mm x 800 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
77.78 kg
30525407€4,940.00
Maximum Capacity
600 kg
Readability
0.2 kg
Readability (Certified)
0.2 kg
Platform Size
800 mm x 800 mm
Dimensions
800 mm x 90 mm x 800 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
77.78 kg
30525439€5,060.00
Maximum Capacity
600 kg
Readability
0.1 kg
Readability (Certified)
0.2 kg
Platform Size
1,000 mm x 1,000 mm
Dimensions
1,000 mm x 90 mm x 1,000 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
101.78 kg
30525409€5,385.00
Maximum Capacity
600 kg
Readability
0.2 kg
Readability (Certified)
0.2 kg
Platform Size
1,000 mm x 1,000 mm
Dimensions
1,000 mm x 90 mm x 1,000 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
101.78 kg
30525441€5,510.00
Maximum Capacity
600 kg
Readability
0.1 kg
Readability (Certified)
0.2 kg
Platform Size
1,500 mm x 1,250 mm
Dimensions
1,500 mm x 90 mm x 1,250 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
173.78 kg
30525411€6,750.00
Maximum Capacity
600 kg
Readability
0.2 kg
Readability (Certified)
0.2 kg
Platform Size
1,500 mm x 1,250 mm
Dimensions
1,500 mm x 90 mm x 1,250 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
173.78 kg
30525443€6,865.00
Maximum Capacity
600 kg
Readability
0.1 kg
Readability (Certified)
0.2 kg
Platform Size
1,500 mm x 1,500 mm
Dimensions
1,500 mm x 90 mm x 1,500 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
207.78 kg
30525414€7,175.00
Maximum Capacity
600 kg
Readability
0.2 kg
Readability (Certified)
0.2 kg
Platform Size
1,500 mm x 1,500 mm
Dimensions
1,500 mm x 90 mm x 1,500 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
207.78 kg
30525446€7,275.00
Maximum Capacity
1,500 kg
Readability
0.2 kg
Readability (Certified)
0.5 kg
Platform Size
1,000 mm x 1,000 mm
Dimensions
1,000 mm x 90 mm x 1,000 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
101.78 kg
30525410€5,425.00
Maximum Capacity
1,500 kg
Readability
0.5 kg
Readability (Certified)
0.5 kg
Platform Size
1,000 mm x 1,000 mm
Dimensions
1,000 mm x 90 mm x 1,000 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
101.78 kg
30525442€5,550.00
Maximum Capacity
1,500 kg
Readability
0.2 kg
Readability (Certified)
0.5 kg
Platform Size
1,500 mm x 1,250 mm
Dimensions
1,500 mm x 90 mm x 1,250 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
173.78 kg
30525412€6,750.00
Maximum Capacity
1,500 kg
Readability
0.5 kg
Readability (Certified)
0.5 kg
Platform Size
1,500 mm x 1,250 mm
Dimensions
1,500 mm x 90 mm x 1,250 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
173.78 kg
30525444€6,865.00
Maximum Capacity
1,500 kg
Readability
0.2 kg
Readability (Certified)
0.5 kg
Platform Size
1,500 mm x 1,500 mm
Dimensions
1,500 mm x 90 mm x 1,500 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
207.78 kg
30525415€7,190.00
Maximum Capacity
1,500 kg
Readability
0.5 kg
Readability (Certified)
0.5 kg
Platform Size
1,500 mm x 1,500 mm
Dimensions
1,500 mm x 90 mm x 1,500 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
207.78 kg
30525447€7,305.00
Maximum Capacity
3,000 kg
Readability
0.5 kg
Readability (Certified)
1 kg
Platform Size
1,500 mm x 1,250 mm
Dimensions
1,500 mm x 90 mm x 1,250 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
173.78 kg
30525413€6,750.00
Maximum Capacity
3,000 kg
Readability
1 kg
Readability (Certified)
1 kg
Platform Size
1,500 mm x 1,250 mm
Dimensions
1,500 mm x 90 mm x 1,250 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
173.78 kg
30525445€6,865.00
Maximum Capacity
3,000 kg
Readability
0.5 kg
Readability (Certified)
1 kg
Platform Size
1,500 mm x 1,500 mm
Dimensions
1,500 mm x 90 mm x 1,500 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Legal for Trade
EC Type Approvable
Net Weight
207.78 kg
30525416€7,190.00
Maximum Capacity
3,000 kg
Readability
1 kg
Readability (Certified)
1 kg
Platform Size
1,500 mm x 1,500 mm
Dimensions
1,500 mm x 90 mm x 1,500 mm (LxHxW)
Units of Measurement
Metric Tons;Gram;Kilogram
Legal for Trade
EC Type Approved
Net Weight
207.78 kg
30525448€7,305.00
