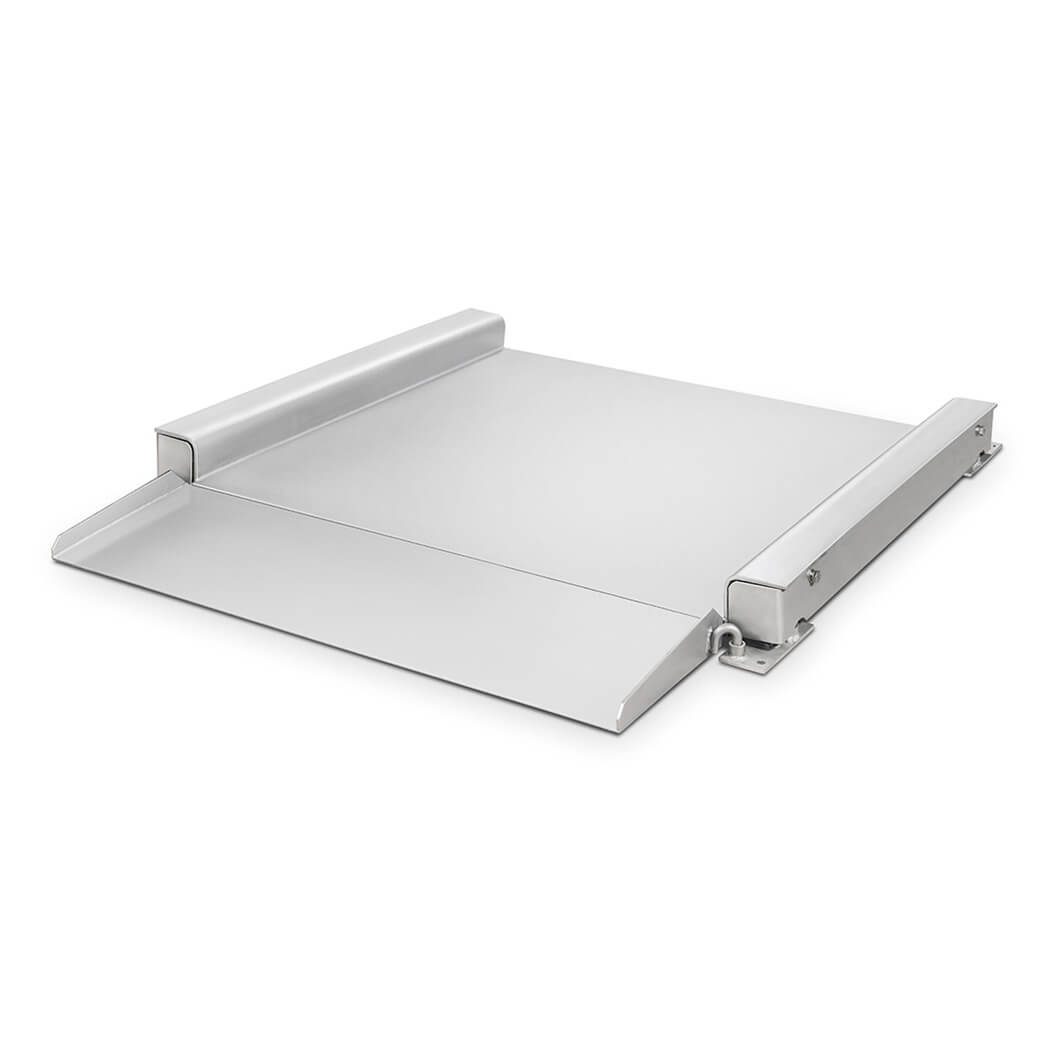

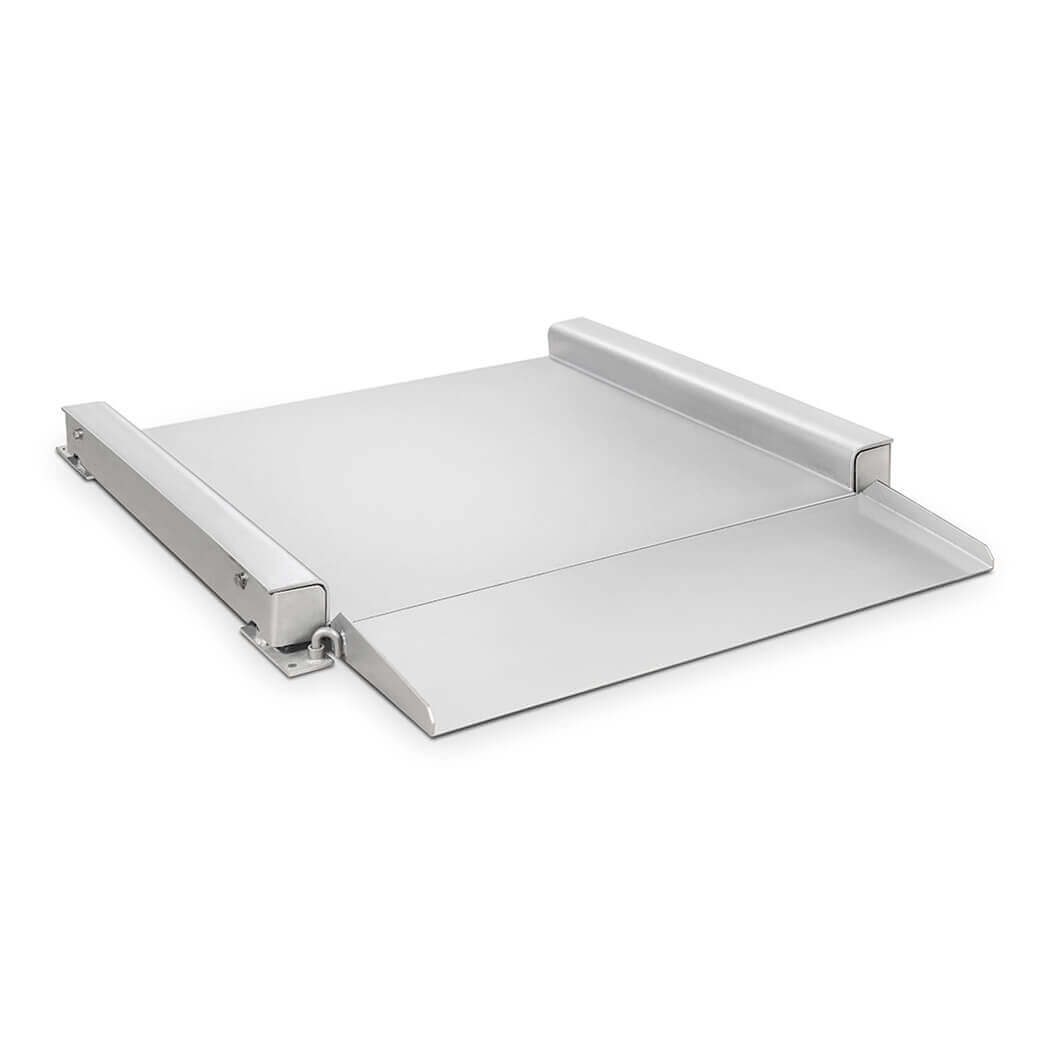

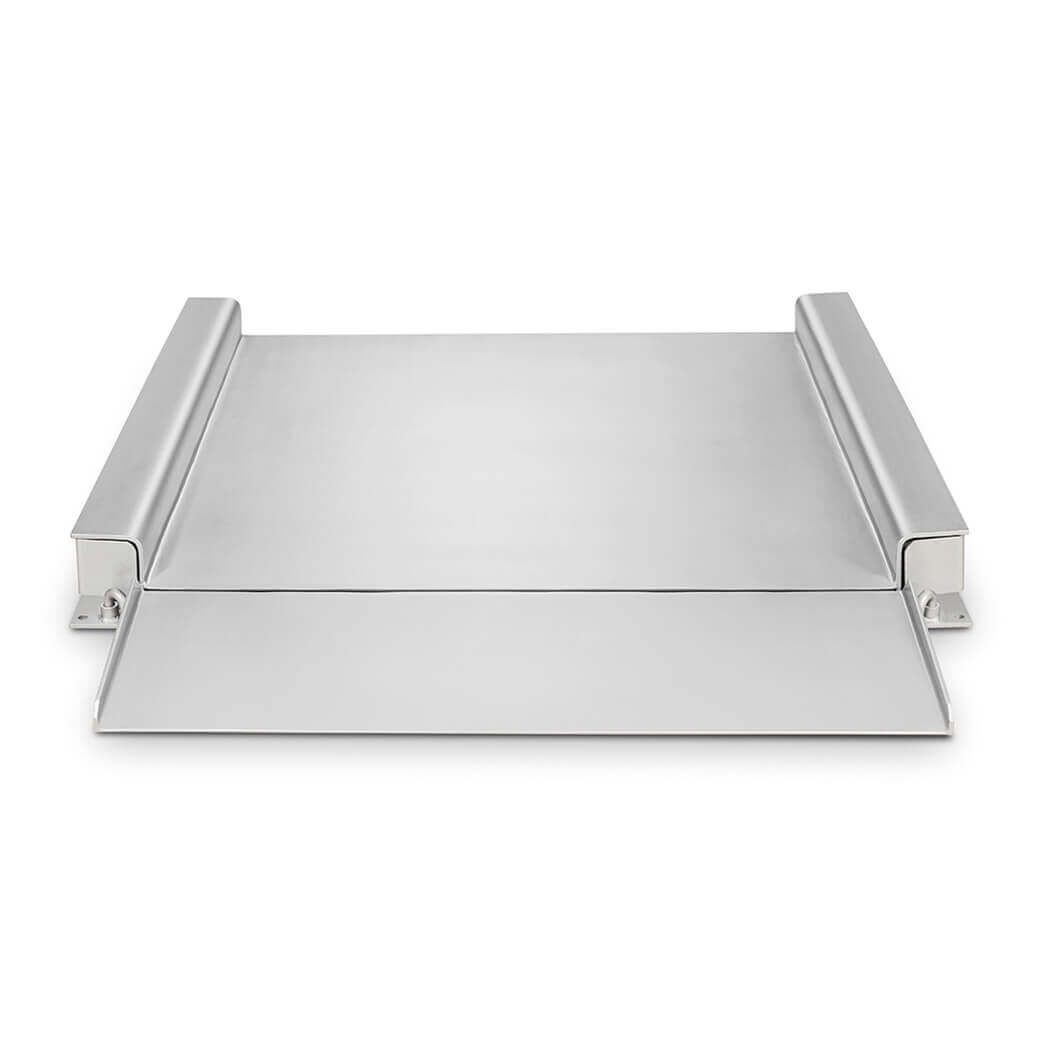

Defender™ 5000 washdown low-profile floor platforms

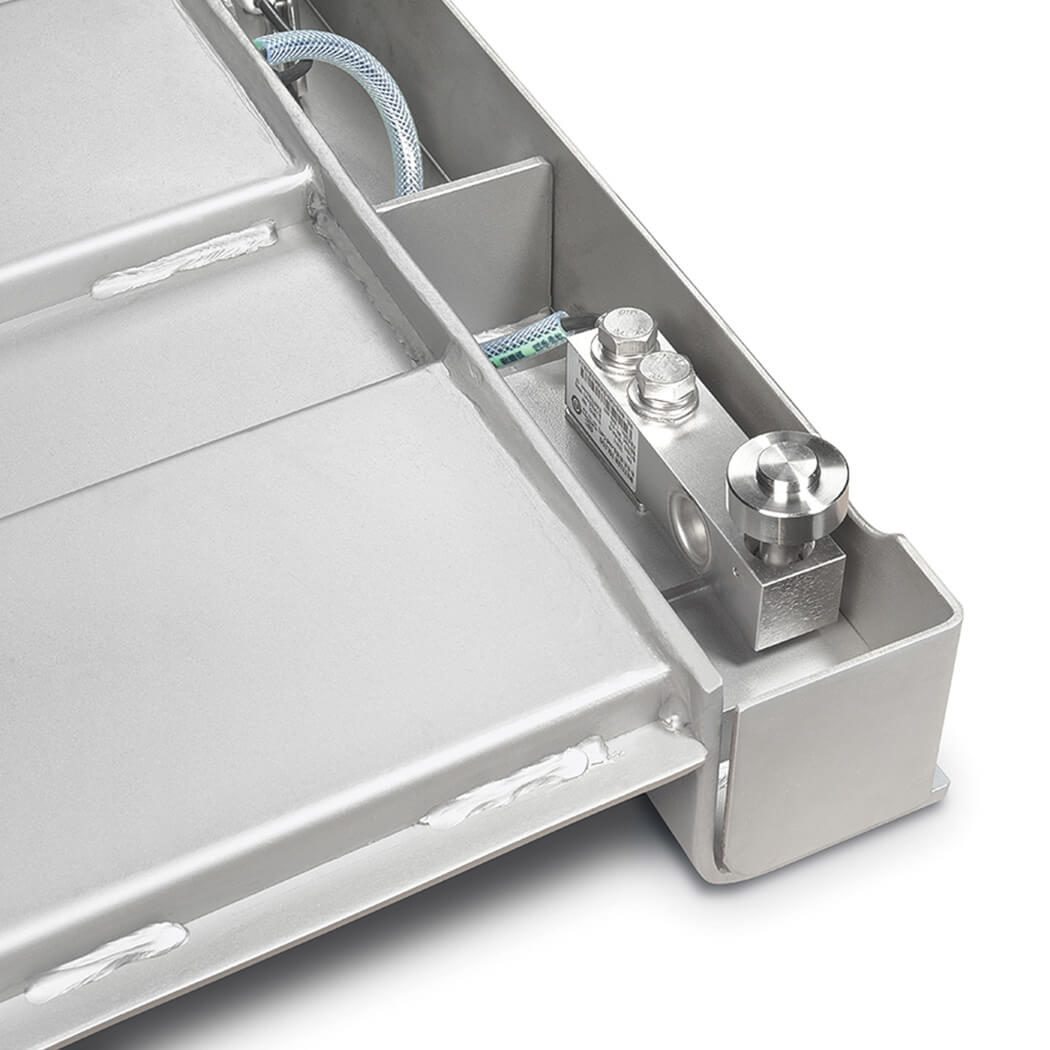

Ultra-low stainless steel platforms with a built-in ramp and four IP68 stainless steel load cells with adjustable feet, for drive-through weighing in wet areas.

Specifications

Brand: OHAUS · 30540663 +1
Maximum Capacity: 600–1500 kg
Readability: 0.2–0.5 kg
Readability (Certified): 0.2–0.5 kg
Platform Size: 1000 mm x 1000 mm / 1250 mm x 1250 mm
Legal for Trade: EC Type Approvable
Protection Rating: IP67
Dimensions: 1300 mm x 114 mm x 1186 mm (LxHxW) / 1550 mm x 114 mm x 1436 mm (LxHxW)
Net Weight: 136–195 kg
Platform Construction: Stainless Steel
Working Environment: -10°C – 40°C, 85%RH, non-condensing

from

€4,560.00

All options (2)

Variants & pricing

Maximum Capacity	Readability	Readability (Certified)	Platform Size	Dimensions	Net Weight	Cat. No.	Price	Quantity	Add
600 kg	0.2 kg	0.2 kg	1,000 mm x 1,000 mm	1,300 mm x 114 mm x 1,186 mm (LxHxW)	136 kg	30540663	€4,560.00
1,500 kg	0.5 kg	0.5 kg	1,250 mm x 1,250 mm	1,550 mm x 114 mm x 1,436 mm (LxHxW)	195 kg	30540664	€5,120.00

Maximum Capacity
600 kg
Readability
0.2 kg
Readability (Certified)
0.2 kg
Platform Size
1,000 mm x 1,000 mm
Dimensions
1,300 mm x 114 mm x 1,186 mm (LxHxW)
Net Weight
136 kg
30540663€4,560.00
Maximum Capacity
1,500 kg
Readability
0.5 kg
Readability (Certified)
0.5 kg
Platform Size
1,250 mm x 1,250 mm
Dimensions
1,550 mm x 114 mm x 1,436 mm (LxHxW)
Net Weight
195 kg
30540664€5,120.00
