Power supplies & measuring instruments

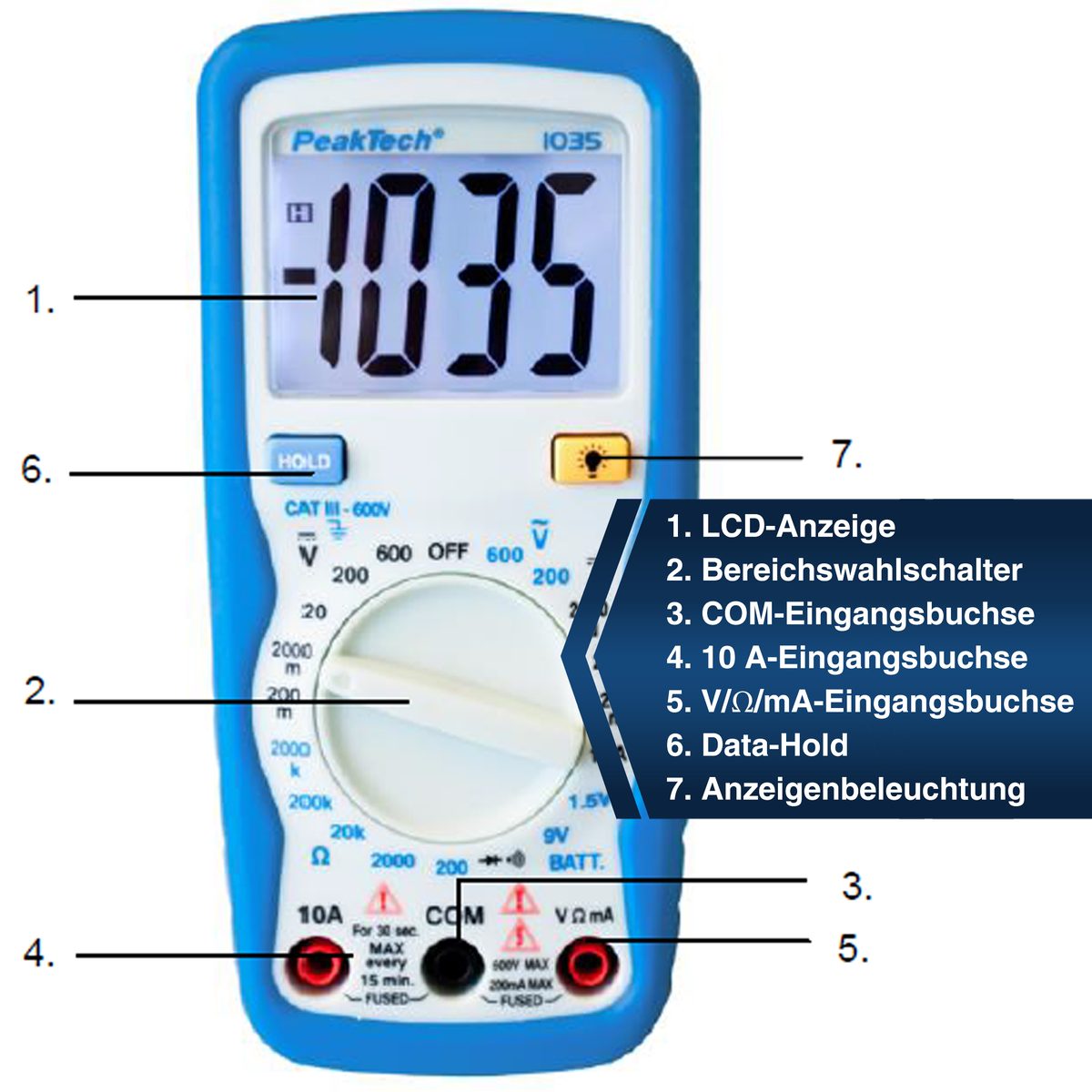

Digital multimeter, 600 V AC/DC, 2000 counts, P 1035
Compact handheld multimeter with a backlit 3½-digit LCD with large segments. Measures DC and AC voltage, DC current and resistance; includes fast audible continuity testing and diode testing.

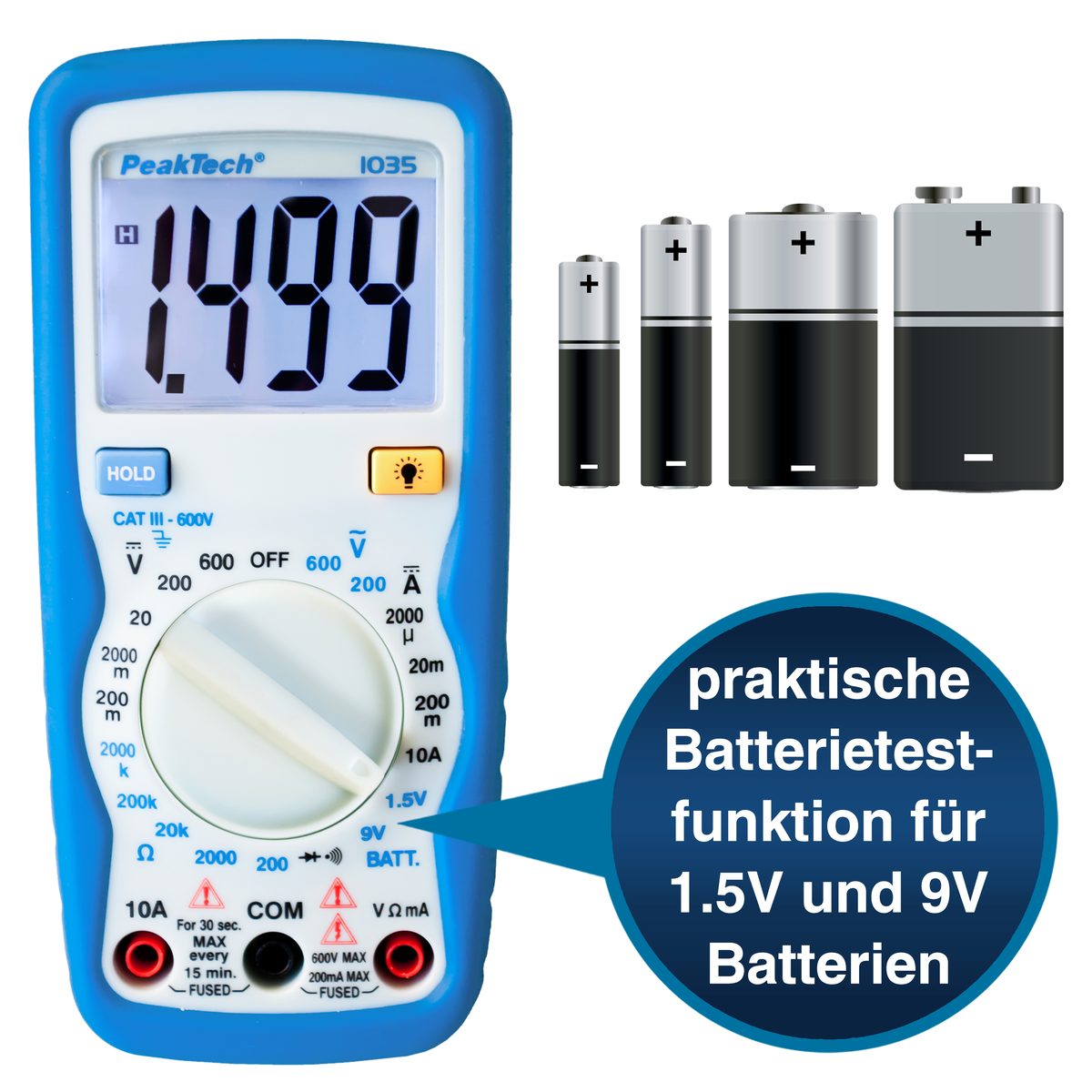

Manual range selection provides a fast reading. The battery test for 1.5 V and 9 V batteries applies a small load resistance: depleted batteries show a voltage drop, allowing a more informative test than voltage measurement alone.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1035
- Basic Accuracy DC
- ± 0,5 %
- Battery Test
- 1,5 V, 9 V
- Display counts
- 2 000
- Display Type
- LCD
- OHM resolution min.
- 0,1 Ω
- Over voltage category
- CAT III 600 V
- Range selection
- Manual
- V AC resolution min.
- 100 mV
- V DC Resolution min.
- 0,1 mV
- V DC max.
- 600 V
- OHM max.
- 2000 kΩ
- mA DC max.
- 200 mA
- mV DC max.
- 2000 mV
- µA DC max.
- 2000 µA
- V AC max.
- 600 V
- A DC max.
- 10 A
from
€33.00
Variants & pricing
Digital multimeter, 600 V AC/DC, 2000 counts, P 1035
P 1035€33.00
