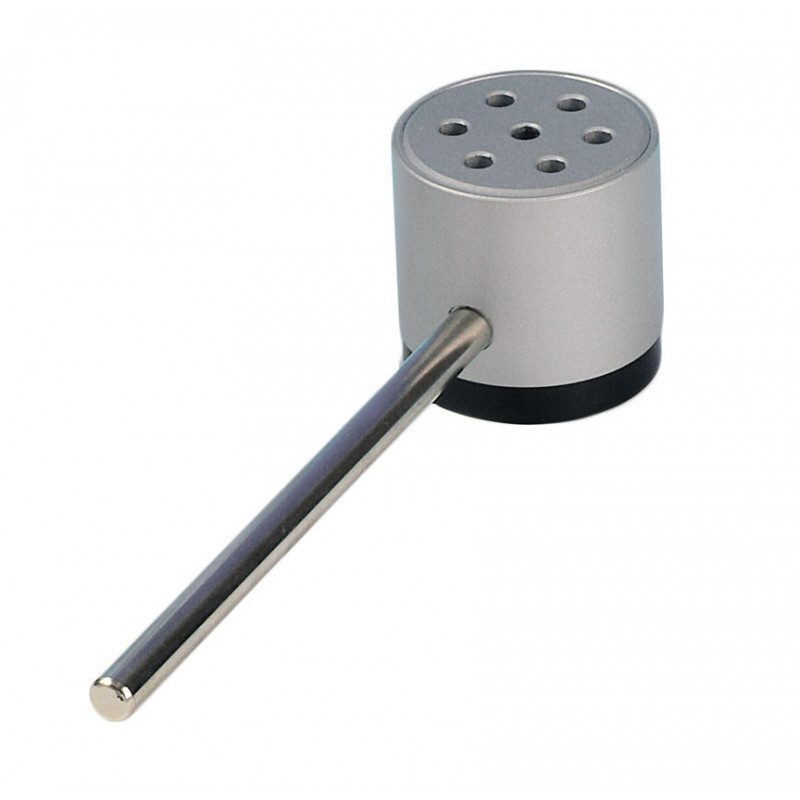

Dynamic capsule

Built on the dynamic transducer principle, with electrical connection via two 4 mm jacks; its impedance is largely independent of frequency. Suitable for use as a microphone with the P3180-1A LF amplifier. Frequency range: 200 Hz to 4 kHz; impedance: 300 ohms at 3400 Hz; D = 55 mm; support: 153 x 10 mm.
