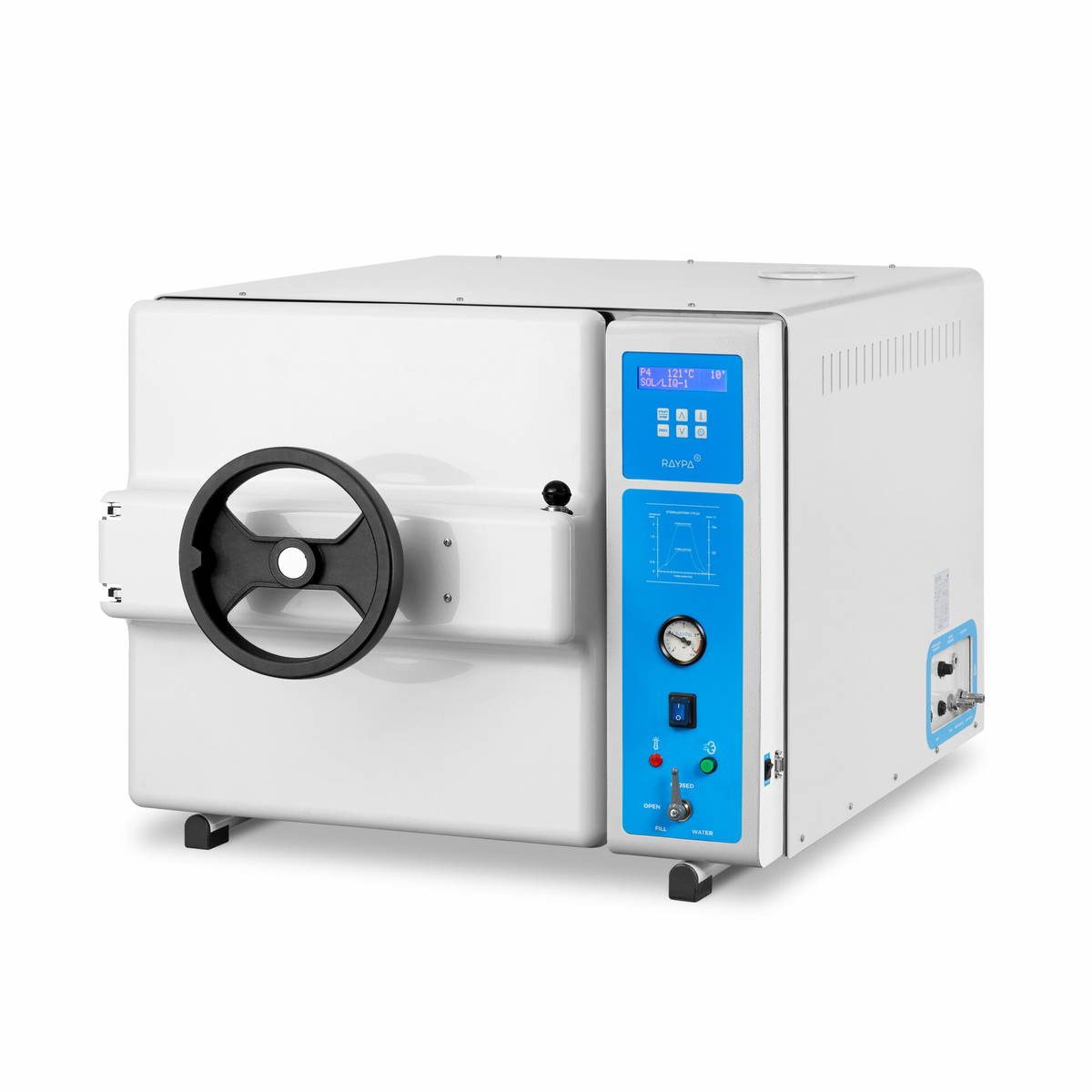

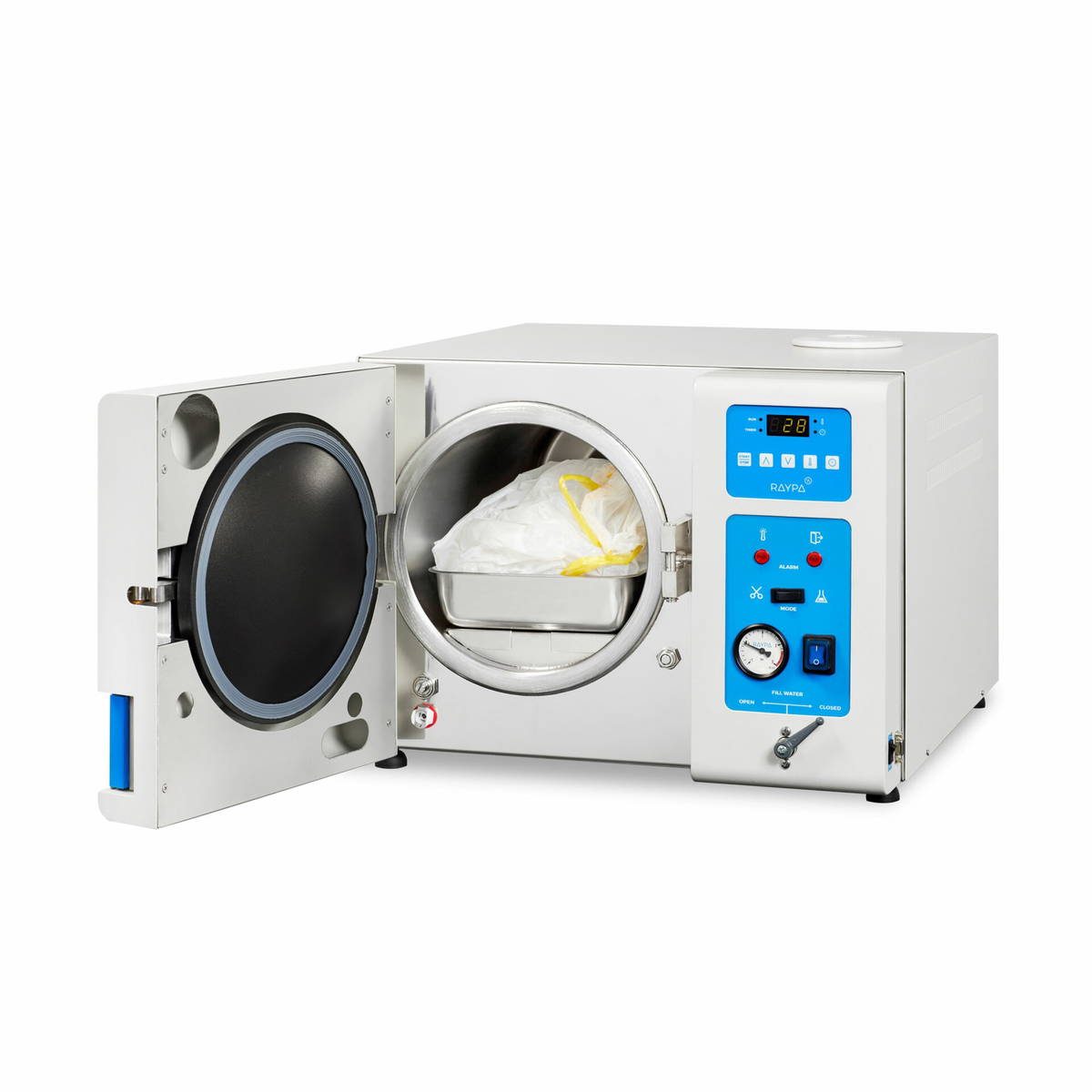

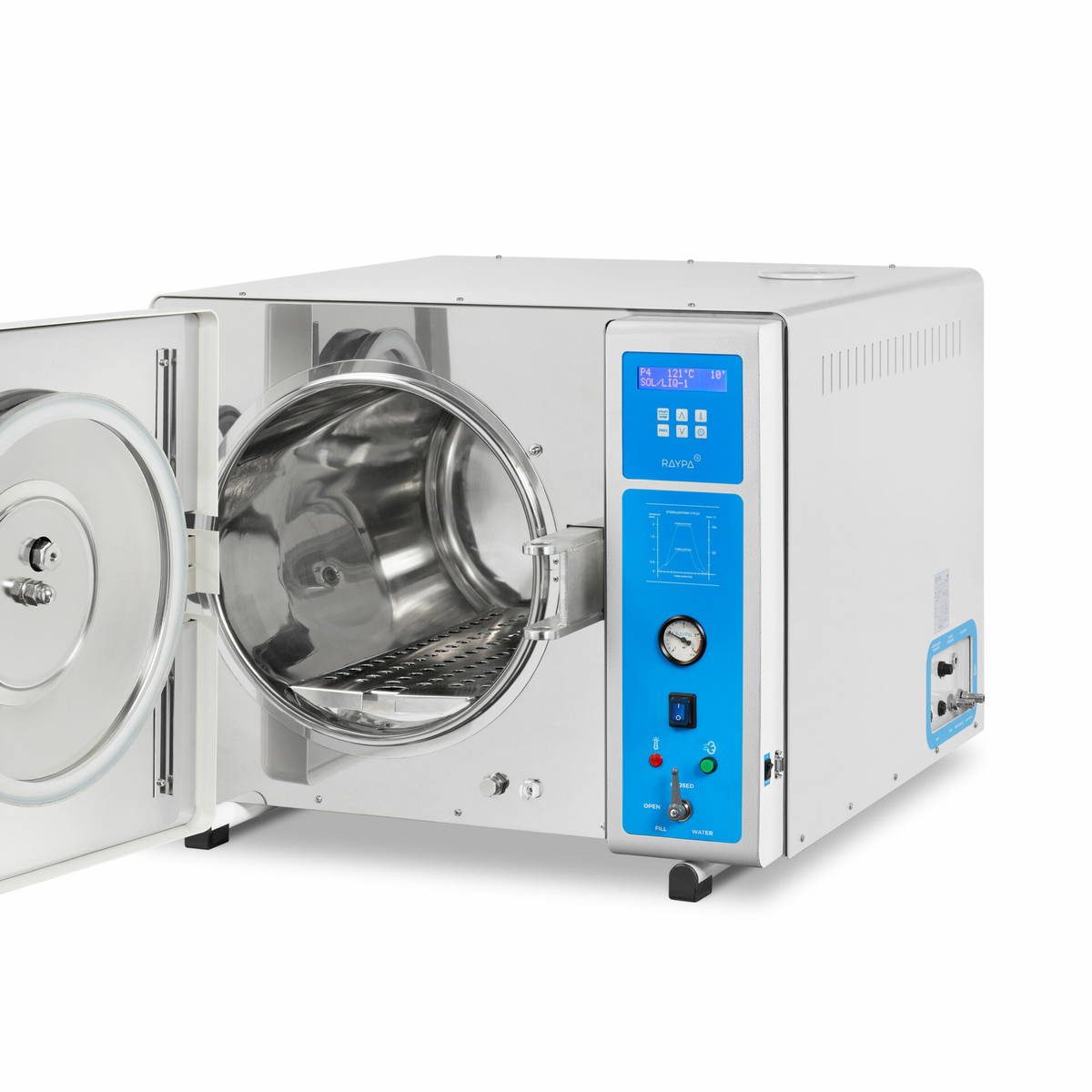

Front-loading benchtop autoclaves without drying, AHS-N series

Name: Front-loading benchtop autoclaves without drying, AHS-N series
Brand: RAYPA

AHS-N series front-loading benchtop autoclaves are designed to sterilize a wide variety of laboratory materials economically and simply.

The AHS-N series benchtop autoclaves meet the basic sterilization needs of laboratories in industrial, educational and research facilities, increasing productivity and simplifying sterilization.

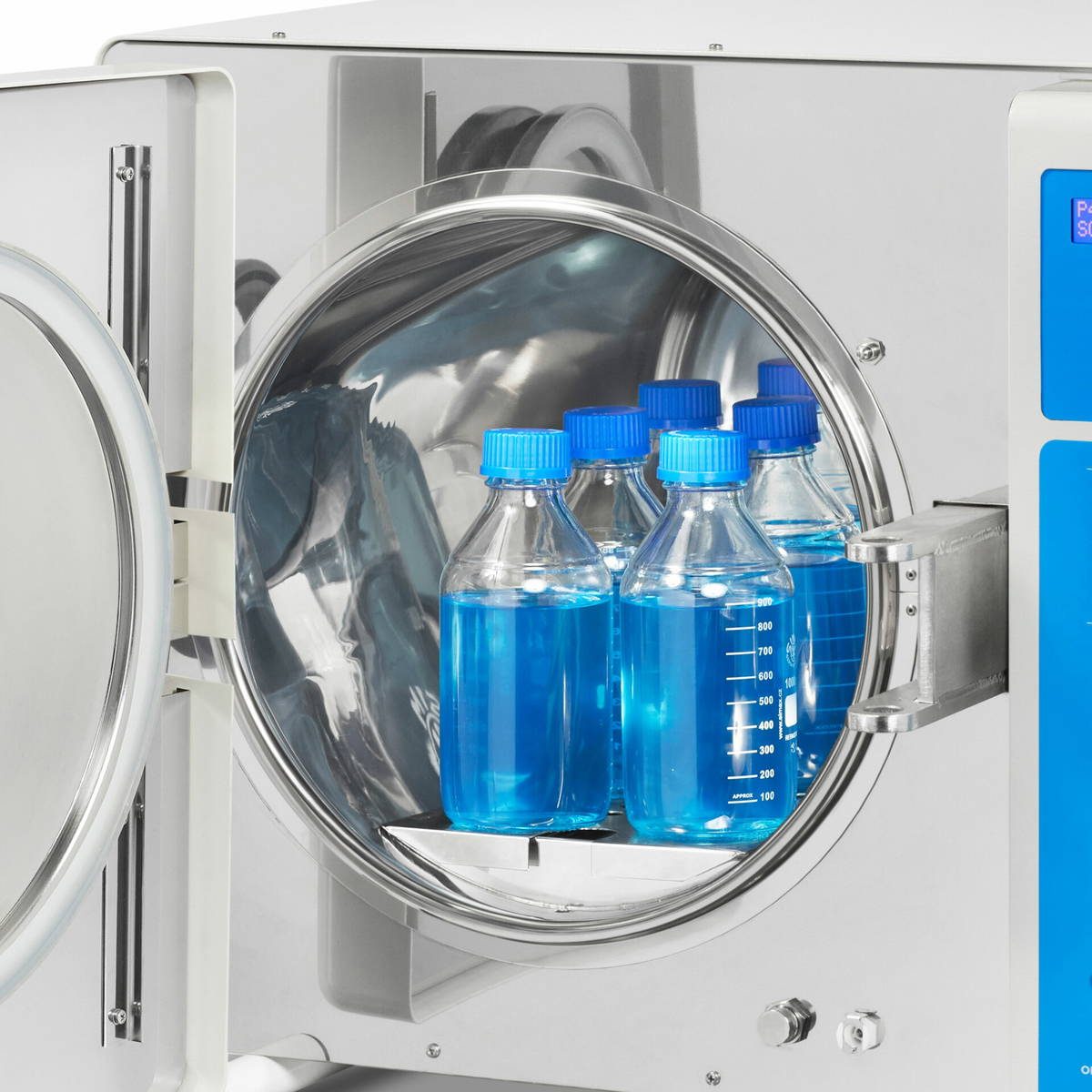

They are designed for sterilizing a wide range of solid and liquid loads, including glass, plastics, metal utensils, liquids, culture media and other laboratory items.

Suitable for the general laboratory, they are optimized for easy operation, include numerous safety features to protect users in daily routine work, and are easy to install as plug-and-play equipment.

Economical, cost-effective and robust in performance
Low consumption of laboratory resources
Excellent construction materials

Also listed in: Food technology: Food microbiology

Specifications

Brand: RAYPA · AH-21-N2 +2
Voltage (V): 230
Frequency (Hz): 50/60
Note: Other voltages and electrical configurations available on request.

On request

All options (3)

Variants & pricing

Total/usable volume of the chamber (L)	Usable dimensions of the chamber (Ø max. x D mm)	Volume of the built-in water tank (L)	External dimensions (L x D x H mm)	Maximum number of trays	Tray size (L x D mm)	Net weight (Kg)	Power (W)	Cat. No.	Price
22/21	210 x 430	6	560 x 680 x 425	4 or 5	190 x 350	45	2000	AH-21-N2	On request
55/50	360 x 400	10	805 x 805 x 650	5	315 x 330	93	2800	AHS-50-N	On request
79/75	360 x 600	10	805 x 1005 x 650	5	315 x 530	110	3200	AHS-75-N	On request

Total/usable volume of the chamber (L)
22/21
Usable dimensions of the chamber (Ø max. x D mm)
210 x 430
Volume of the built-in water tank (L)
6
External dimensions (L x D x H mm)
560 x 680 x 425
Maximum number of trays
4 or 5
Tray size (L x D mm)
190 x 350
Net weight (Kg)
45
Power (W)
2000
AH-21-N2On request
Total/usable volume of the chamber (L)
55/50
Usable dimensions of the chamber (Ø max. x D mm)
360 x 400
Volume of the built-in water tank (L)
10
External dimensions (L x D x H mm)
805 x 805 x 650
Maximum number of trays
5
Tray size (L x D mm)
315 x 330
Net weight (Kg)
93
Power (W)
2800
AHS-50-NOn request
Total/usable volume of the chamber (L)
79/75
Usable dimensions of the chamber (Ø max. x D mm)
360 x 600
Volume of the built-in water tank (L)
10
External dimensions (L x D x H mm)
805 x 1005 x 650
Maximum number of trays
5
Tray size (L x D mm)
315 x 530
Net weight (Kg)
110
Power (W)
3200
AHS-75-NOn request
