Hydraulic Press, Working Model

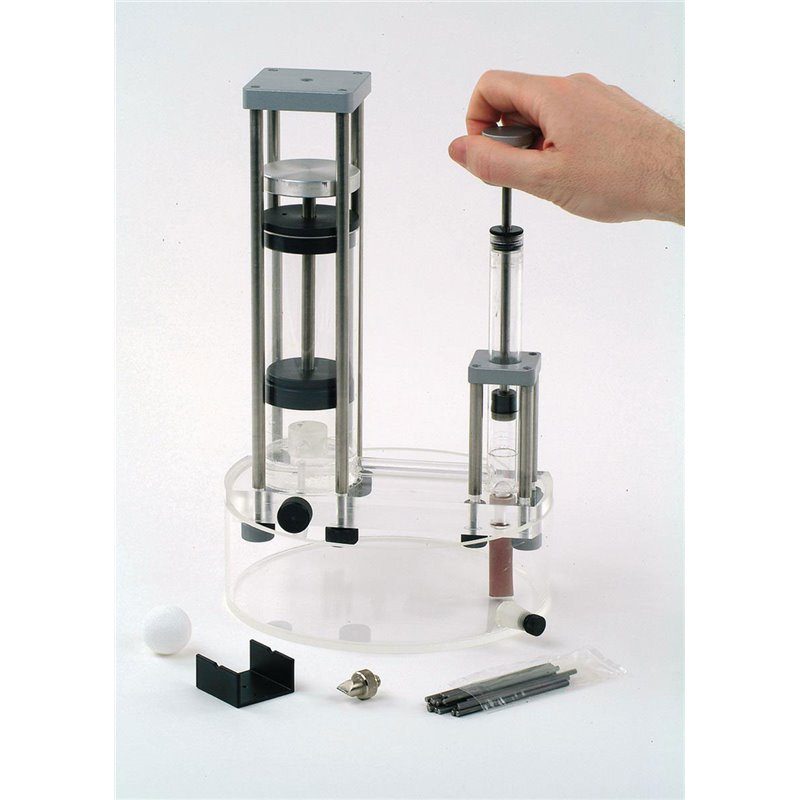

Acrylic working model for demonstrating hydraulic force transmission, piston movement and valve clearance. The 1:12 piston-area ratio enables a pressing force of up to 500 N; a drain-connector vat is required separately.
