Power supplies & measuring instruments

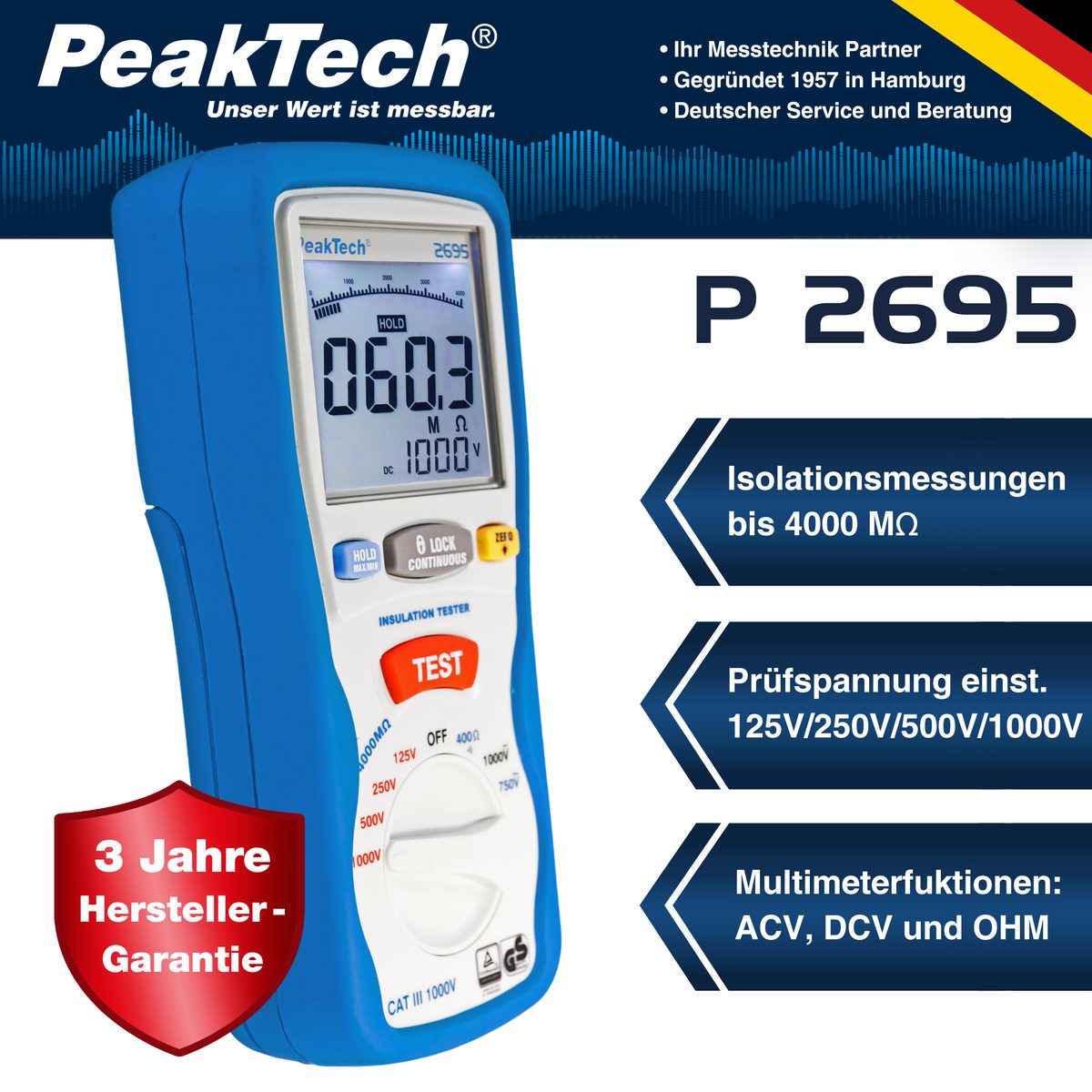

Insulation tester 125/250/500/1000 V /4000 MΩ, P 2695
Digital insulation meter for testing cables, components and their insulation. Select the test voltage with the rotary switch; pressing the Test button applies the selected voltage to the device or cable under test. Four selectable voltage values cover different insulation tests.
P 2695 also measures DC voltage, AC voltage and resistance. A locking button prevents accidental application of up to 1000 V through unintended button operation.
Specifications
- Brand
- PeakTech · P 2695
- Display counts
- 4.000
- Display Type
- LCD
- GS - Tested safety
- Yes
- Over voltage category
- CAT III 1000 V
- Test voltage
- 125 V, 250 V, 500 V, 1000 V
- OHM max.
- 4000 MΩ
from
€193.00
Variants & pricing
Insulation tester 125/250/500/1000 V /4000 MΩ, P 2695
P 2695€193.00
