Kirchhoff-Bunsen Spectroscope

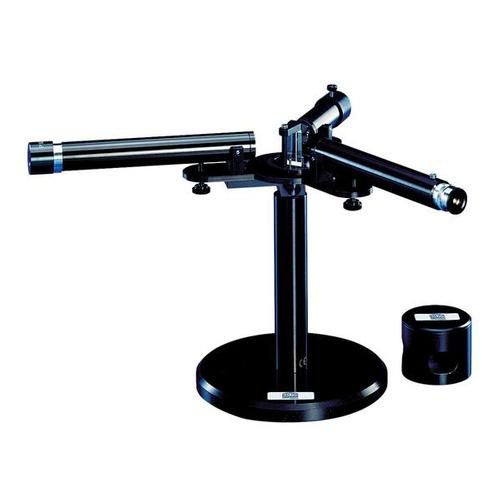

Desktop spectroscope for observing and measuring emission and absorption spectra. It features an adjustable slit, a condenser, a flint-glass prism and an observation telescope with a sliding eyepiece. The scale tube carries a reference division that is superimposed on the spectrum's image plane by reflection at the front surface of the prism. A removable prism hood is included, making it ideal for schools and universities.

Specifications:

• Observation tube: moveable, with locking screw and sliding eyepiece; objective f = 160 mm, 18 mm dia.
• Slit tube: stationary, with symmetrical slit; objective f = 160 mm, 18 mm dia.
• Scale tube: stationary, 200-division scale that can be calibrated in wavelengths
• Eyepiece: f = 90 mm, 18 mm dia.
• Prism: flint glass (60°), dispersion (nF – nC): 0.017, base length 20 mm, height 30 mm
• Weight: 4.8 kg
