Power supplies & measuring instruments

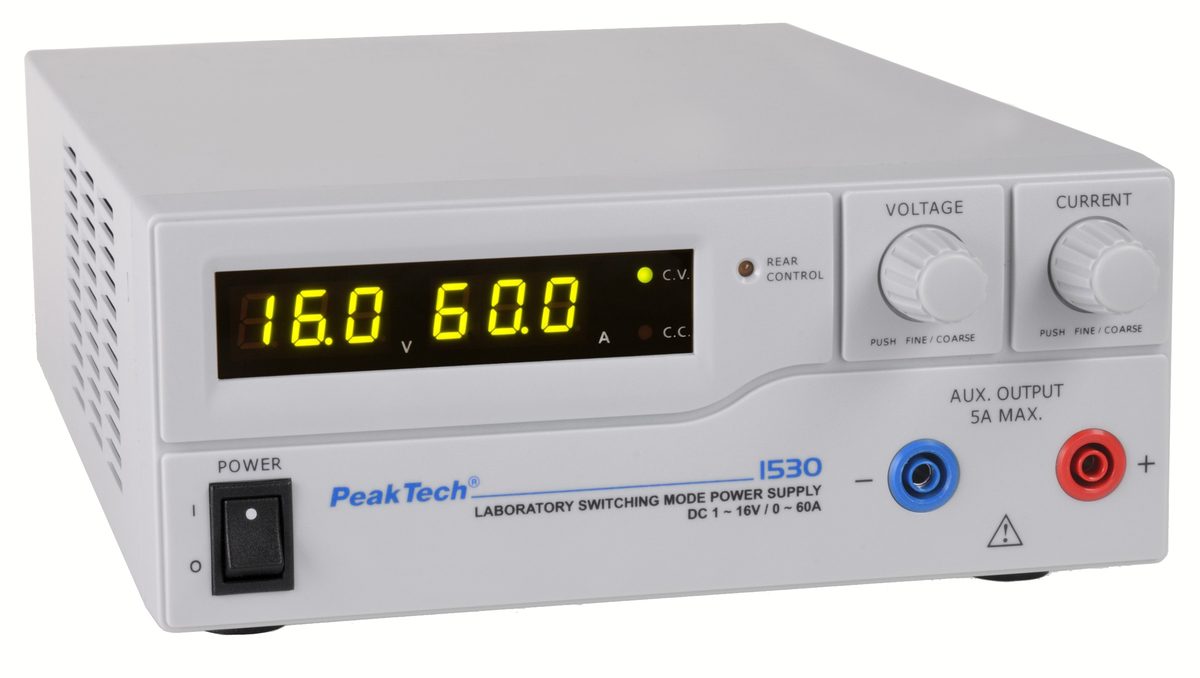

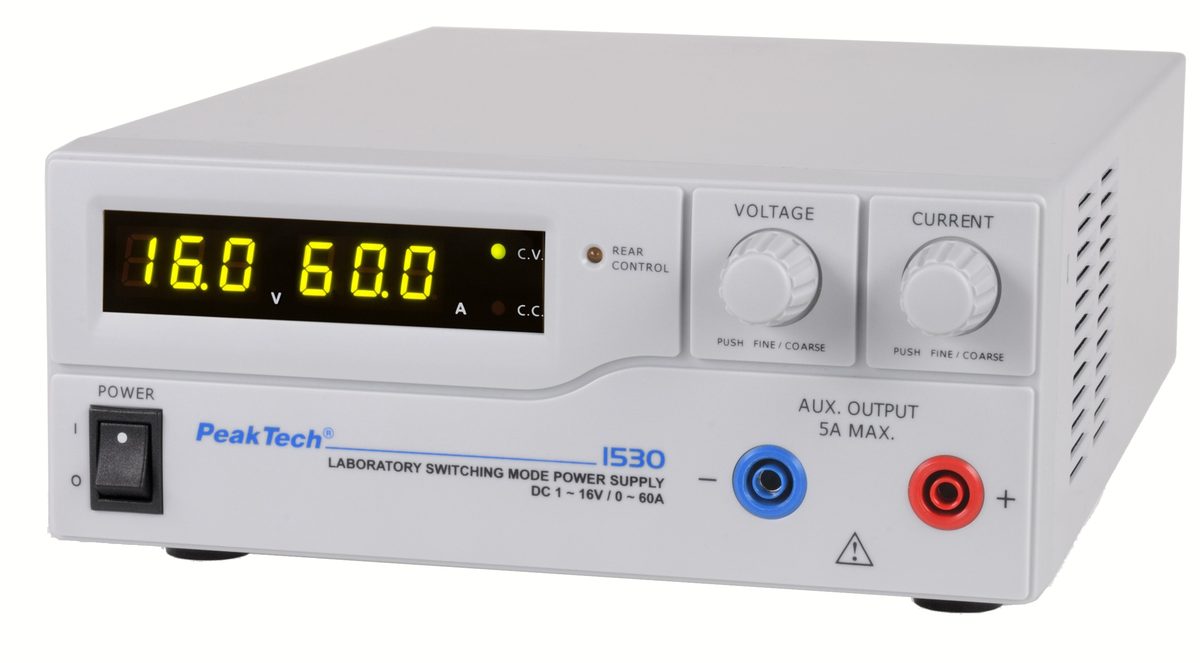

Laboratory power supply DC 1 - 16 V / 0 - 60 A, P 1530
High-power DC supply with a maximum output of 16 V / 60 A and continuous power of 960 W.

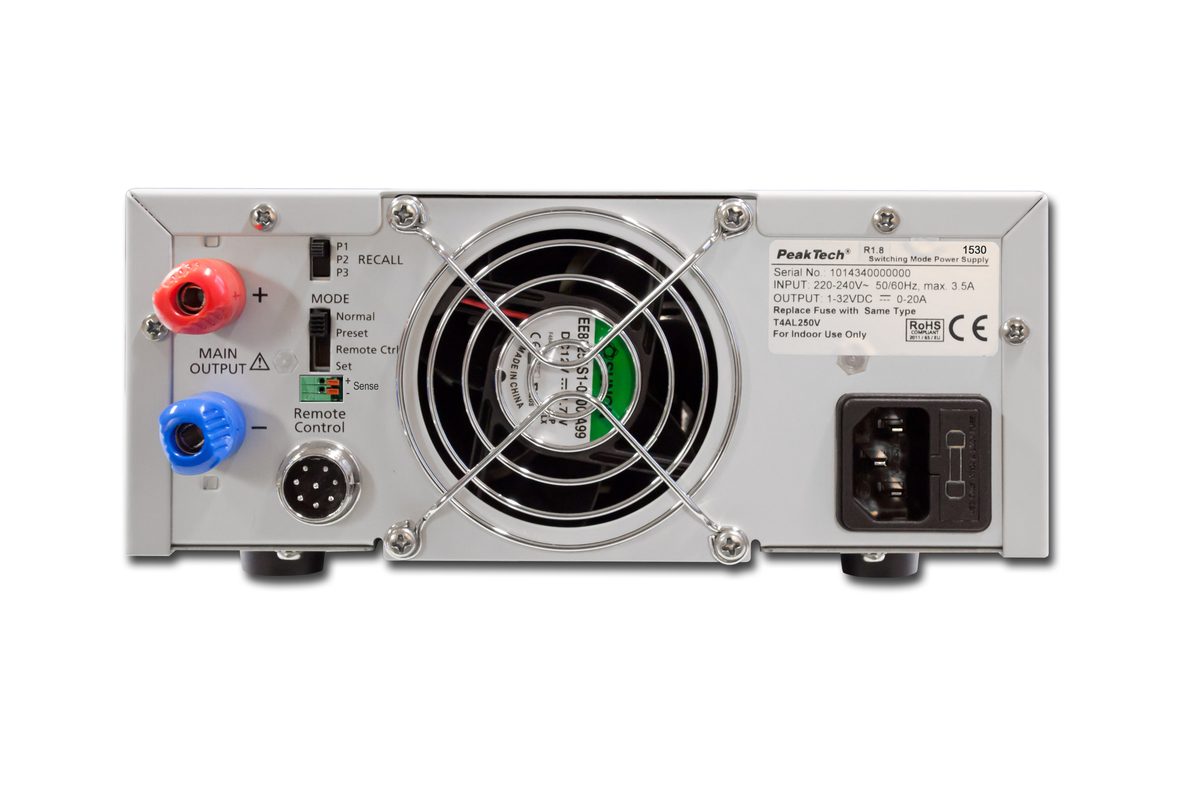

Dual-function controls for coarse and fine adjustment, rotary encoders and microprocessor control allow precise voltage and current settings. A rear socket provides analogue remote control, and a preset switch selects three preset output values.
Fan control adjusts the rotational speed to the temperature and output power.
The output voltage and current limit can be set without a connected load.
Compact power supply for professional industrial and mechanical-engineering applications.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1530
- Channels
- 1 CH
- Display Type
- Segment
- Input connector
- IEC socket
- Input voltage
- 230 VAC / 50 Hz
- Output Connection
- 4 mm socket, Pole terminal (rear)
- Output Current
- 0 - 60 A
- Output Voltage
- 1 - 16 V DC
- Remote Control
- Yes (analog)
from
€561.00
Variants & pricing
Laboratory power supply DC 1 - 16 V / 0 - 60 A, P 1530
P 1530€561.00
