Photo 1 of 6
Power supplies & measuring instruments

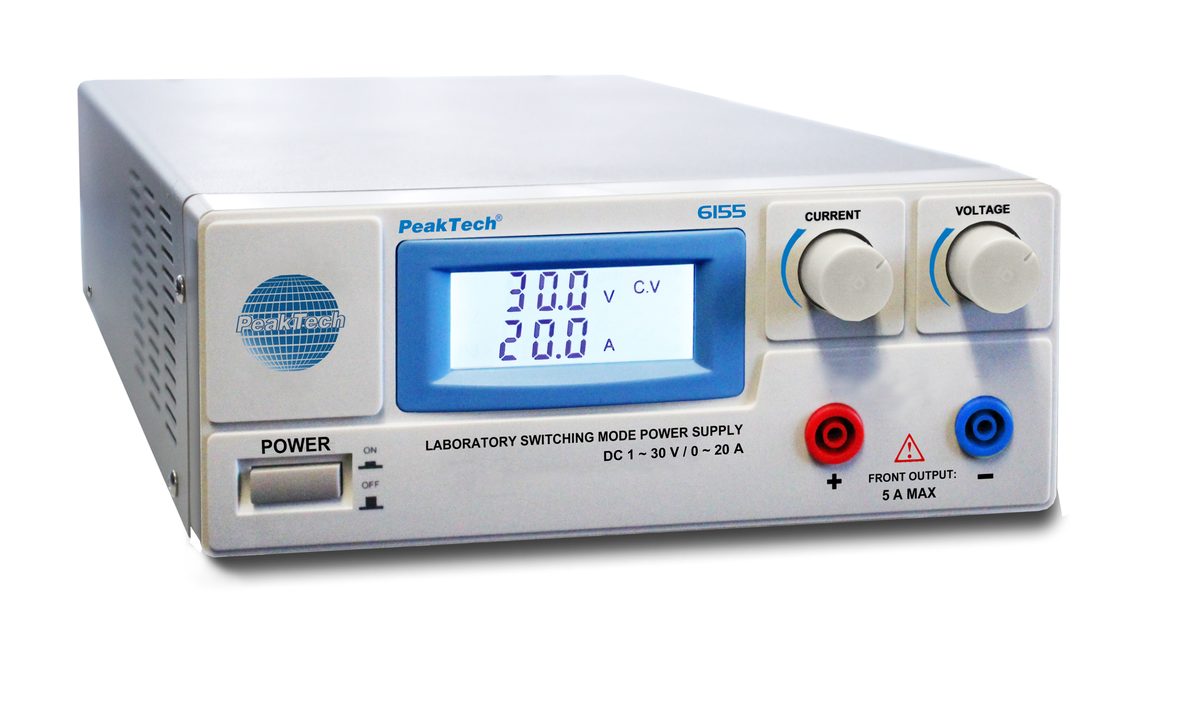

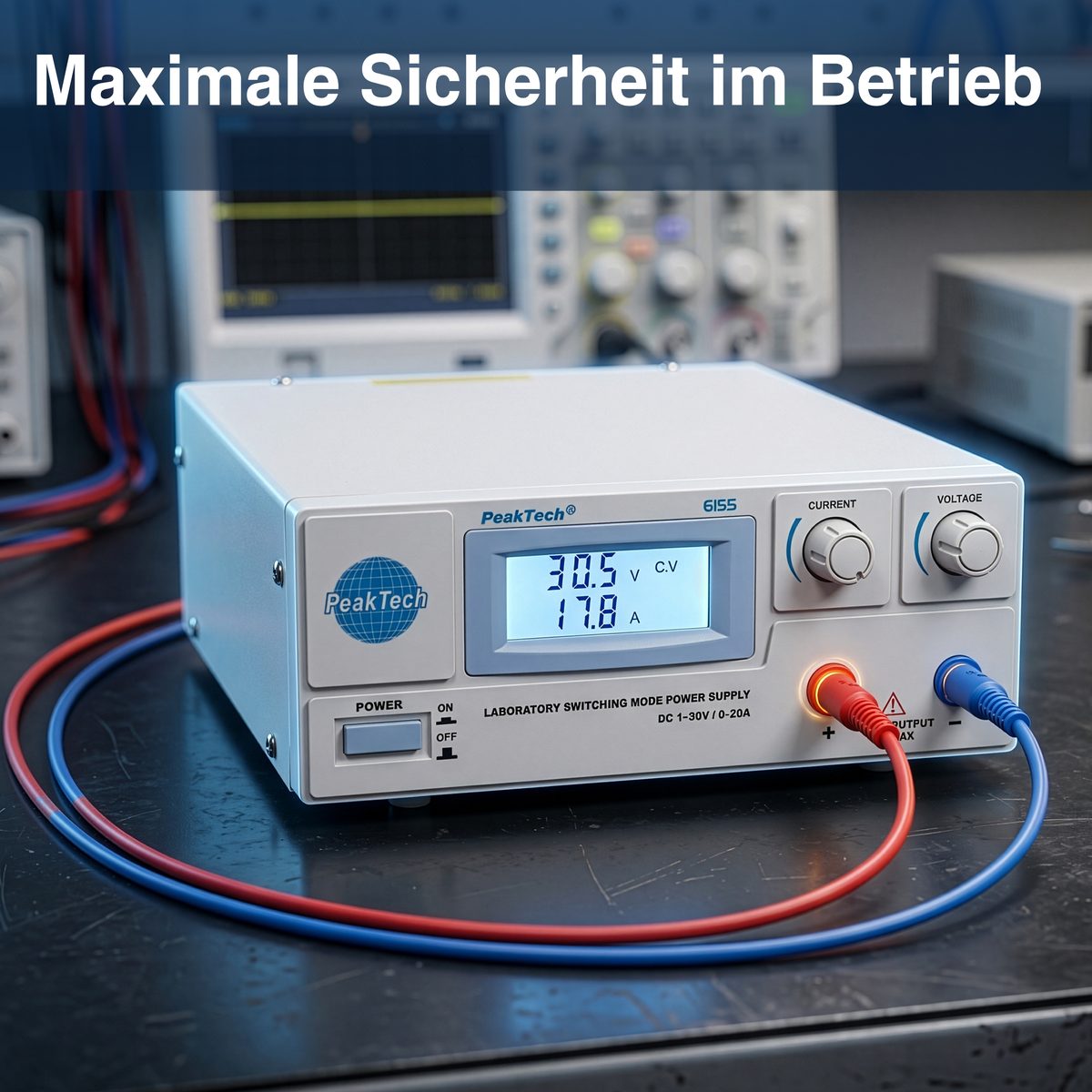

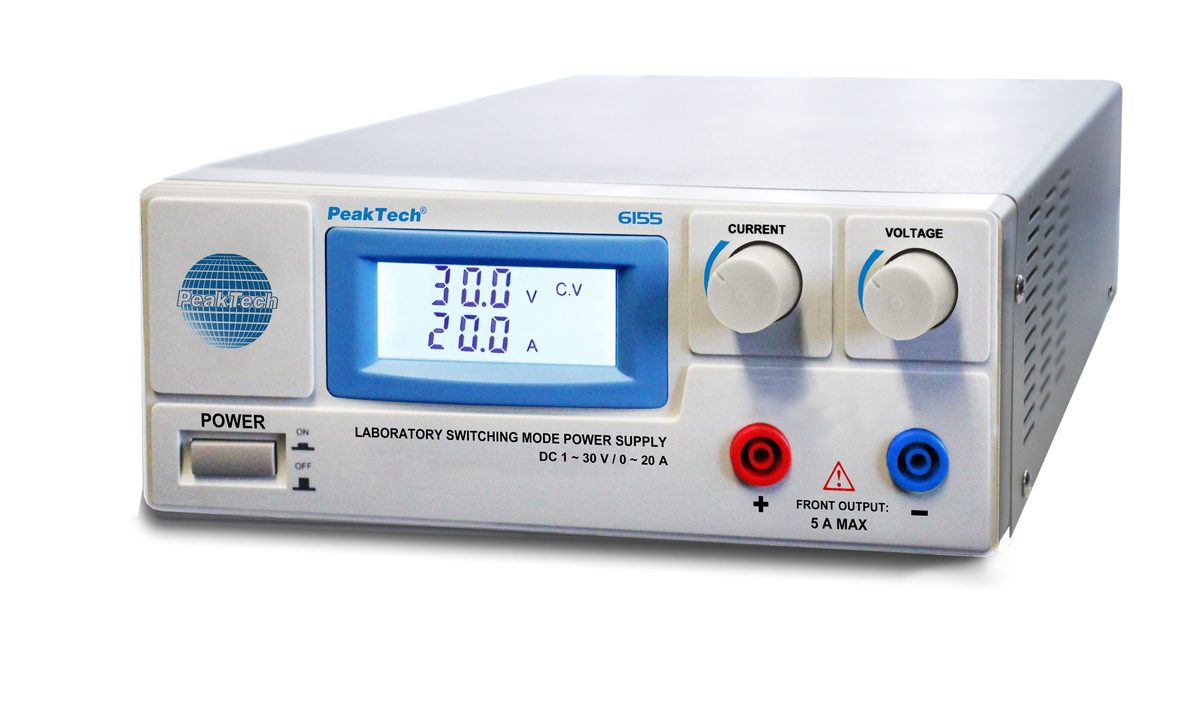

Laboratory Switching Mode Power Supply, P 6155

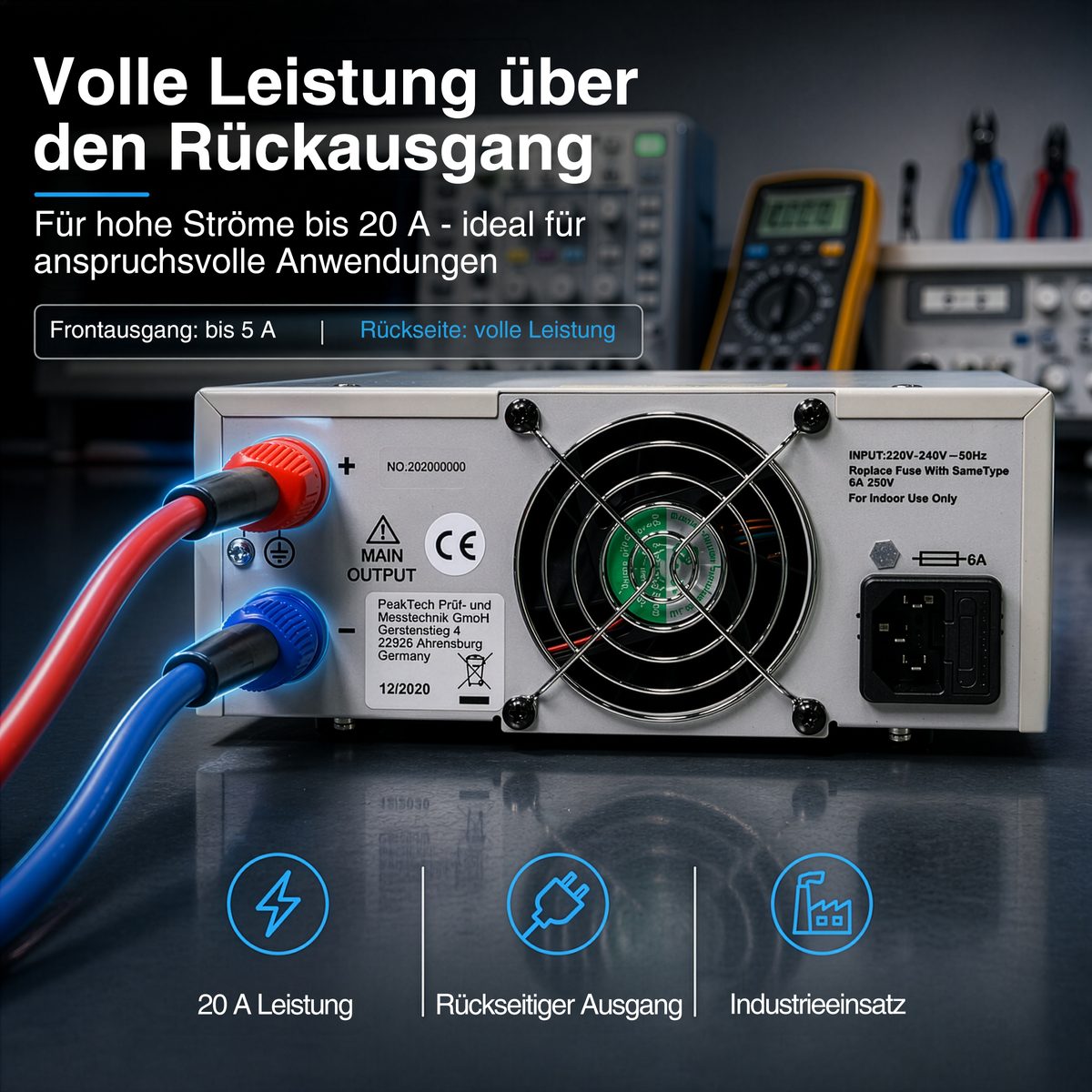

Laboratory switching power supply with a 1–30 V output and current up to 20 A. A rotary switch adjusts the voltage. An illuminated LCD shows the values. The front main switch provides controlled shutdown. Front sockets supply only up to 5 A; rear pole terminals supply up to 20 A. For professional and hobby electronics applications.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 6155
- Channels
- 1 CH
- Display Type
- LCD
- Input connector
- IEC socket
- Input voltage
- 230 VAC / 50 Hz
- Output Connection
- 4 mm socket, Pole terminal (rear)
- Output Current
- 0 - 20 A
- Output Voltage
- 1 - 30 V DC
- Remote Control
- □
from
€264.00
Variants & pricing
Laboratory Switching Mode Power Supply, P 6155
P 6155€264.00
