LRC Circuit Experiment

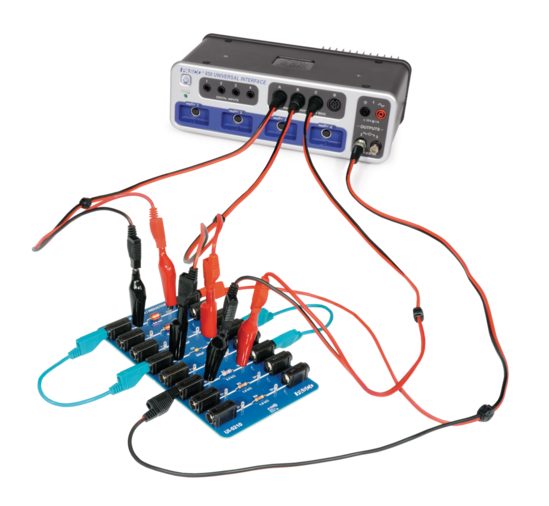

The complete solution for examining the response of a series LRC circuit at various driving frequencies. This complete solution is designed for use with PASCO Capstone software.

Included in the kit:

• 1× Resistor-Capacitor-Inductor Network (UI-5210)
• 4× Unshrouded Voltage Sensor (UI-5100)
• 1× Banana Plug Cord Sets, 30 cm (SE-7123)
• 1× BNC Function Generator Output Cable (unshrouded) (UI-5119)
• 1× Resistor-Capacitor-Inductor Network (UI-5210)
• 4× Unshrouded Voltage Sensor (UI-5100)
• 1× Banana Plug Cord Sets, 30 cm (SE-7123)
• 1× BNC Function Generator Output Cable (unshrouded) (UI-5119)
