Heating, drying & sterilisation

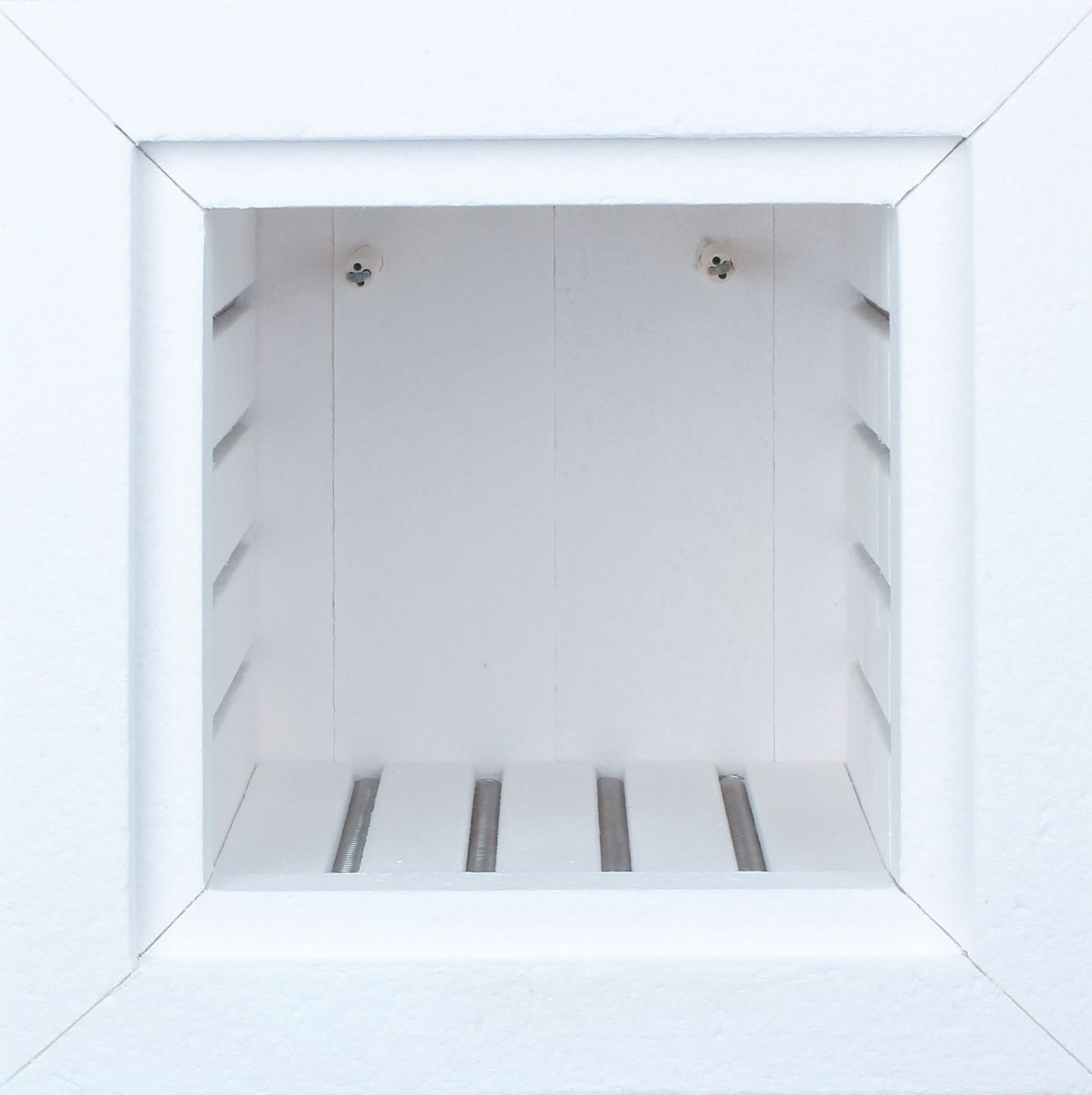

Muffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
The FHP is a muffle furnace for ash determination, enamelling, fusions and condensate drying. It offers 4-sided heating with open ceramic-fibre heating wires, ceramic-fibre insulation and a powder-coated steel housing, plus a temperature adjustment function (±50.0°C) and 1°C / 1 min resolution. A ceramic-fibre plate is included and it is operated via a jog-dial PID controller with a backlit LCD; the program allows 4 patterns of 10 segments.
Specifications
- Brand
- Witeg · DH.WFH22.P03 +9
- Temperature adjustment
- Adjustment function (±50.0°C)
- Resolution
- 1°C, 1 min
- Heating
- 4-sided heating, open ceramic-fibre heating wires
- Insulation
- Ceramic-fibre insulation
- Housing
- Powder-coated steel
- Included
- Ceramic-fibre plate
- Display
- Backlit LCD
- Controller
- Jog-dial PID control, programmable (4 patterns of 10 segments)
- Certification
- CE, serial-number traceability
from
€2,305.00
Variants & pricing
Muffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
DH.WFH22.P03€2,305.00Muffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
DH.WFH22.P05€2,622.00Muffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
DH.WFH22.P12€3,347.00Muffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
DH.WFH22.P14€3,397.00Muffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
DH.WFH22.P27On requestMuffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
DH.WFH22.P63€9,764.00Muffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
DH.WFH23.P12€3,674.00Muffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
DH.WFH23.P14€3,885.00Muffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
DH.WFH23.P27€6,173.00Muffle Furnace FHP, 3/4.5/12/14/27/63 L, 1,200°C
DH.WFH23.P63€10,003.00
