Physics equipment

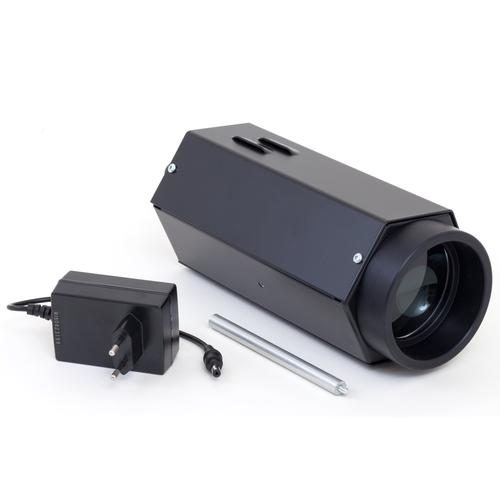

Optical Lamp with Axial Lamp Adjustment
This ultra-bright light source is designed for optical bench experiments and projection. It has a metal housing with condenser, a movable element for axial lamp alignment, a mounting stem with screw fitting, and an included plug-in power supply. The LED lamp uses an 18 V, 10 W secondary supply; the condenser has a 100 mm focal length and 80 mm diameter.
Specifications
- Brand
- 3B Scientific · 1020630
- Plug-in power supply: . .
- . .
- Primary
- 100 – 240 V AC, 50/60 Hz
- Secondary
- 18 V, 10 W (LED)
- Lamp: . .
- . .
- Condenser focal length
- 100 mm
- Condenser diameter
- 80 mm
- Shaft
- 125 mm x 10 mm Ø
- Dimensions
- 240 mm x 115 mm x 220 mm approx.
- Weight
- 1.5 kg approx.
from
€461.00
Variants & pricing
Optical Lamp with Axial Lamp Adjustment
1020630€461.00
