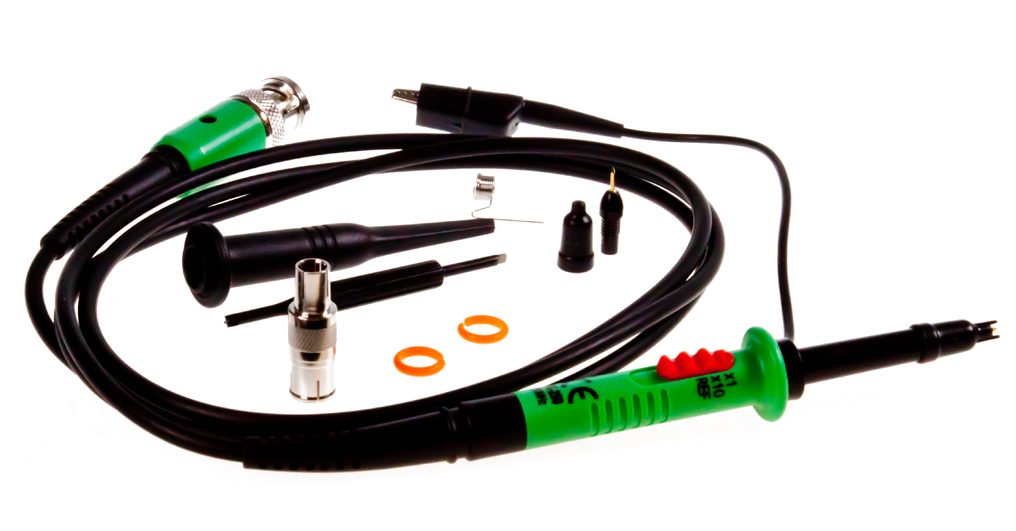

Oscilloscope probe, 250 MHz, 10:1/1:1, P TK-250
Universal probe for standard oscilloscopes. A side crocodile clip provides the ground connection; the metal outer BNC connector has ground contact. The probe tip has a metal contact for the test voltage. A cable clamp maintains a permanent connection to the pin or cable being measured; additional accessories are included.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P TK-250
- Attenuation
- 1:1, 10:1
- Bandwidth
- 250 MHz
- Contains
- Attachments, Calibration tool, Osc. probe
- Input connector
- Hook (inflexible), Test probe
- Output Connection
- BNC Plug
- Package unit
- 1 pc.
from
€55.00
Variants & pricing
Oscilloscope probe, 250 MHz, 10:1/1:1, P TK-250
P TK-250€55.00
