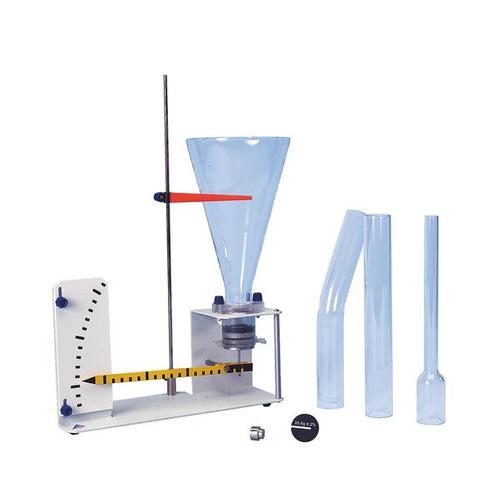

Pascal's Law Apparatus for Quantitative Measurement of Bottom Pressure
This apparatus demonstrates the hydrostatic paradox and enables quantitative measurement of bottom pressure as a function of liquid-column height. It uses glass vessels of different shapes with the same base area and height.
Specifications
- Brand
- 3B Scientific · 1002957
- Height of the vessels
- 220 mm
- Tube diameter at the bottom
- 22 mm
- Total height
- 350 mm
- Base-plate area
- 260 mm x 100 mm
- Lever arm lengths
- 20 mm, 175 mm
- Drain pipe
- 8 mm Ø
- Mass of slotted weight
- 20,4 g
- Weight
- 0,8 kg
from
€331.00
