Physics equipment

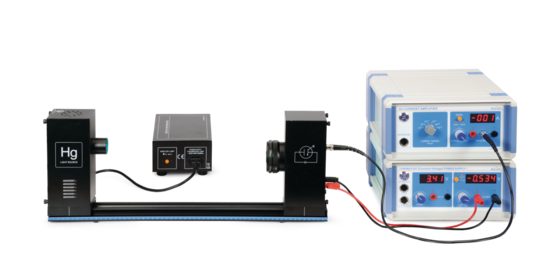

Photoelectric Effect System
This system supports photoelectric-effect experiments for determining Planck's constant. It enables determination within 5.0%.
Specifications
- Brand
- PASCO · SE-6609
- Current Amplifier Measuring Range
- 10 −8 to 10 −13 A in six ranges
- Photoelectric Tube Voltage Adjustment
- –4.5 V to 0 V and –4.5 V to +30 V (two ranges)
- Photoelectric Tube Spectral Response Range
- 300 nm – 700 nm
- Photoelectric Tube Anode
- nickel ring
- Five Optical Filters with Central Wavelengths
- 365.0, 404.7, 435.8, 546.1, and 578.0 nm
- Aperture Diameters
- 2, 4, 8 mm
On request
Variants & pricing
Photoelectric Effect System
SE-6609On request
