Planck’s Constant Apparatus

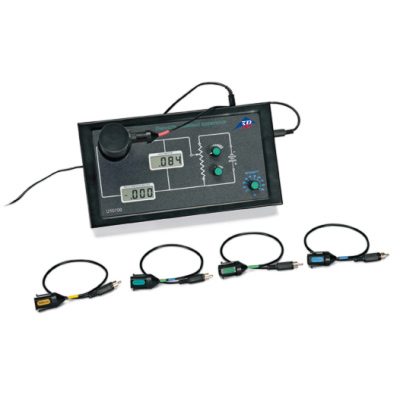

This compact apparatus determines Planck’s constant and the electron work function by the stopping-potential method. It integrates a photocell, voltmeter and nanoammeter, and uses five LEDs with mean wavelengths of 472, 505, 525, 588 and 611 nm as variable-intensity light sources. Supplied with the base unit, five cased LEDs and a 12 V AC plug-in power supply; mains voltage 230 V ±10%, 50/60 Hz.
Specifications
- Brand
- 3B Scientific · 1000537
- Mains voltage: . .
- 230 V ±10% (50/60 Hz) . .
- Wavelengths
- 472 nm, 505 nm, 525 nm, 588 nm, 611 nm
- Dimensions
- 280 mm x 150 mm x 130 mm approx.
- Weight
- 1.3 kg approx.
from
€1,398.00
Variants & pricing
Planck’s Constant Apparatus
1000537€1,398.00
