Physics equipment

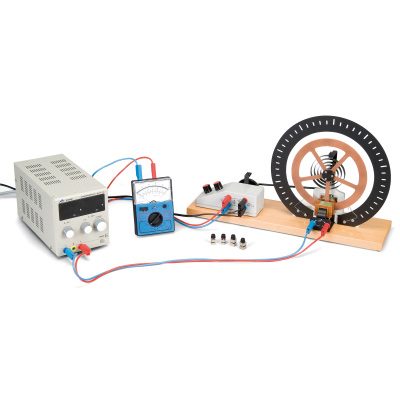

Pohl Torsion Pendulum
The Pohl torsion pendulum is designed for investigating free, forced and chaotic oscillations at different damping levels. It also supports the study of resonance curves, phase shift, the torsional spring constant and the moment of inertia.
Specifications
- Brand
- 3B Scientific · 1002956
- Natural frequency
- 0.5 Hz approx.
- Excitation frequency
- 0 – 1.3 Hz (continuously adjustable)
- Motor
- 24 V max. DC or AC; 0.7 A
- Eddy current brake
- 0 – 20 V DC; 2 A max.
- Connections
- 4 mm safety sockets
- Dimensions
- 400 mm x 140 mm x 270 mm approx.
- Weight
- 4 kg approx.
from
€1,495.00
Variants & pricing
Pohl Torsion Pendulum
1002956€1,495.00
