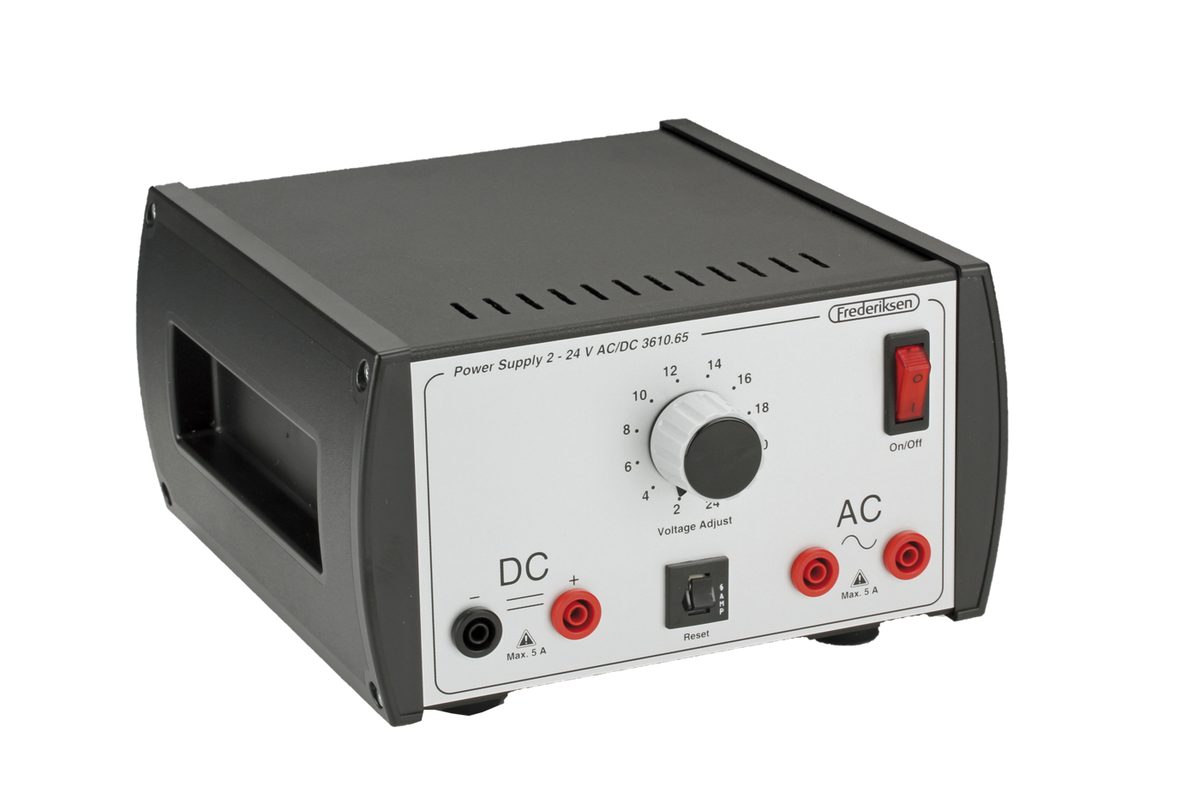

Power Supply, 2–24 V, 5 A
This power supply provides AC and DC output with stepped voltage adjustment in 2 V intervals from 2 to 24 V, at up to 5 A. The DC output is rectified but neither smoothed nor stabilised, and an integrated circuit breaker provides overload protection.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- Frederiksen · 361065
- Weight (kg)
- 4.1 kg
- Dimensions
- (W × D × H) 203 mm x 225 mm x 117 mm
- Output voltage (DC)
- 24 V
- Output current (DC)
- 5 A
- Output voltage (AC)
- 2-24 V
- Output current (AC)
- 5 A
from
€399.00
Variants & pricing
Power Supply, 2–24 V, 5 A
361065€399.00
Related products
Frederiksen
Power supply, 0–24 V, 0–10 A
Dimensions: (W × D × H) 312 mm x 225 mm x 117 mm
from€891.00
Frederiksen
Power supply, 1–12 V, 6 A
Dimensions: (W × D × H) 203 mm x 225 mm x 177 mm
from€362.00
Frederiksen
Power supply, 12 V, AC/DC, 3 A
Dimensions: (Ø × W × H) 225 mm x 203 mm x 117 mm
from€351.00
Frederiksen

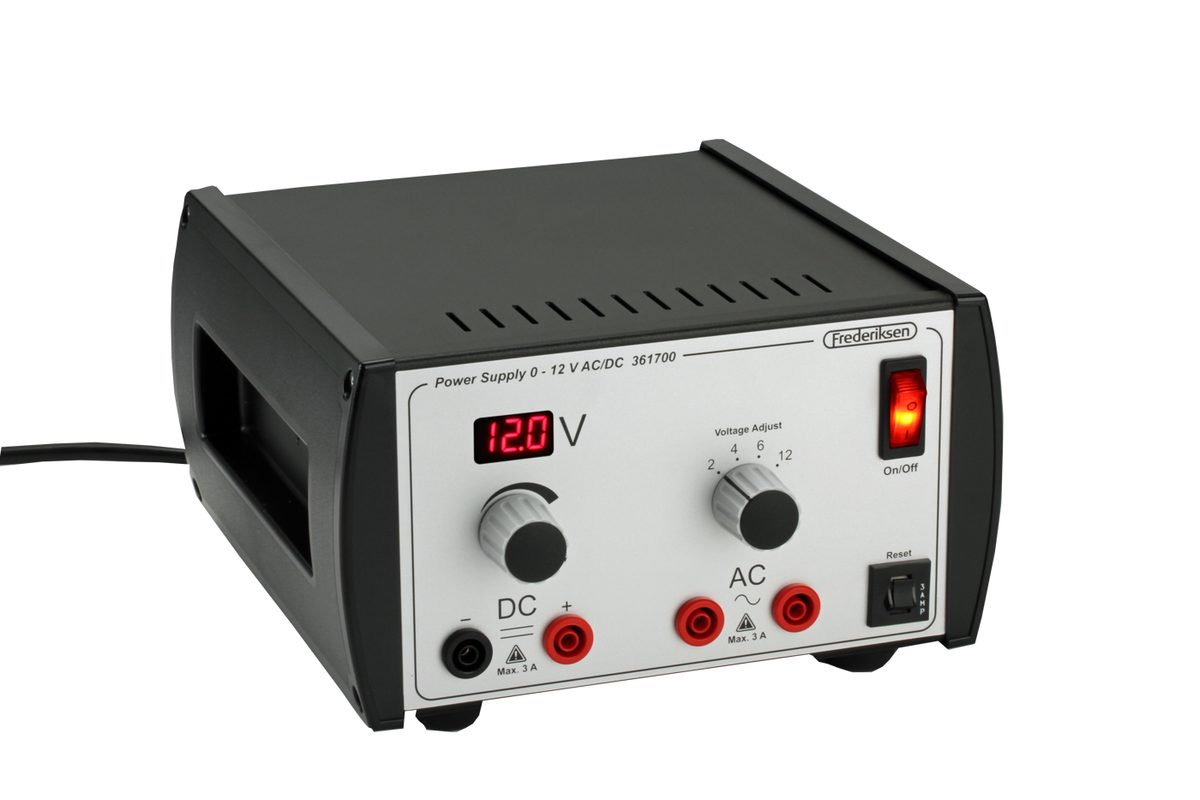

Power supply, 12 V, AC/DC, 3 A, with display
Weight (g): 3200 g · Output voltage (DC): 0-12 V
from€372.00
