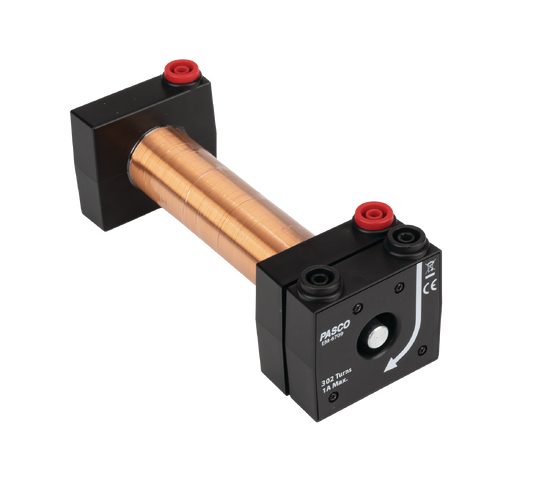

Primary/Secondary Coils
Nested primary and secondary coils with a removable iron core. They are designed for investigations involving paired coils.
Specifications
- Brand
- PASCO · EM-6709
- Inner Coil Windings
- 302 turns
- Outer Coil Windings
- 3077 turns
- Inner Coil
- Inside diameter 10.4 mm, Length 12.3 cm
- Outer Coil
- Inside diameter 18.1 mm, Length 11 cm
- Inner Coil Maximum Current
- 1 A
- Outer Coil Maximum Current
- 0.3 A
- Inner Coil Resistance
- 0.8 Ω
- Outer Coil Resistance
- 41 Ω
- Soft Iron Core
- 9.5 mm diameter, 16.5 cm long
