Physics equipment
Servo Motor
A standard servo motor with a 180-degree range of motion. It is intended for movements within this range.
Included in the kit:

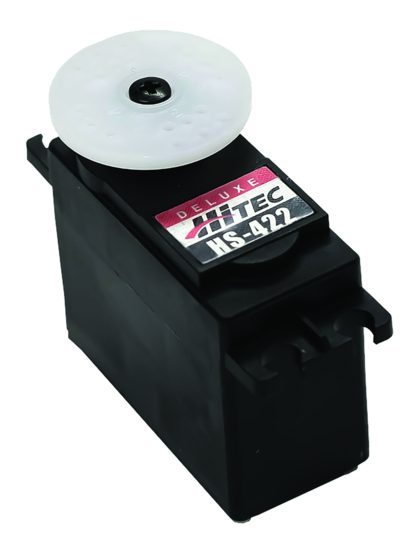

- 1× Hitec HS422 Deluxe Servo
- 4× Servo Horns
Specifications
- Brand
- PASCO · SE-2975
- Operating Voltage
- 4.8 V to 6.0 V
- Output Torque
- 3.3 kg-cm at 4.8 V
- Current Draw at Idle
- 8 mA
- No Load Operating Current Draw
- 150 mA
- Stall Current Draw
- 800 mA
- Dimensions
- 40.6 x 19.8 x 36.6 mm
- Mass
- 45.5 g
- Motor Type
- 3 Pole Metal Brush Ferrite
- Gear Material
- Nylon
- Output Shaft Spline
- 24 tooth
