Physics equipment

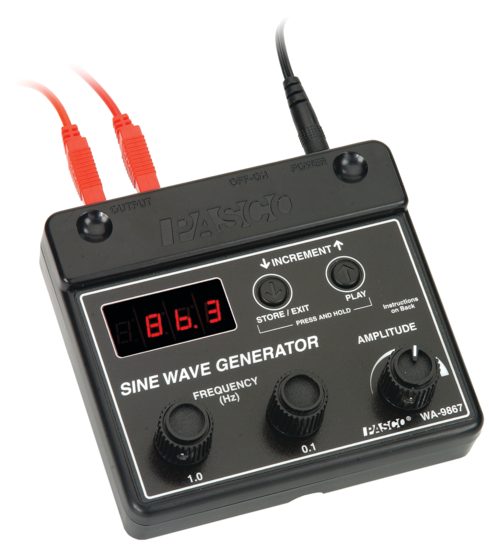

Sine Wave Generator
Generates, controls, and stores the sine-wave signals used by speakers and wave drivers.
Specifications
- Brand
- PASCO · WA-9867
- Frequency
- 1.0 to 800 Hz Adjustable in 0.1 Hz increments
- Output
- DC coupled push-pull with short-circuit protection
- Amplitude
- 0 to 10 V peak
- Current
- <1 A into 8 Ω load
- Memory
- Up to 80 stored frequencies
- Display
- 4 digit LED
- Input Power
- 100-240 VAC, 50-60 Hz
- Dimensions
- 12 x 11 x 5 cm (not including separate power supply)
On request
Variants & pricing
Sine Wave Generator
WA-9867On request
