Power supplies & measuring instruments

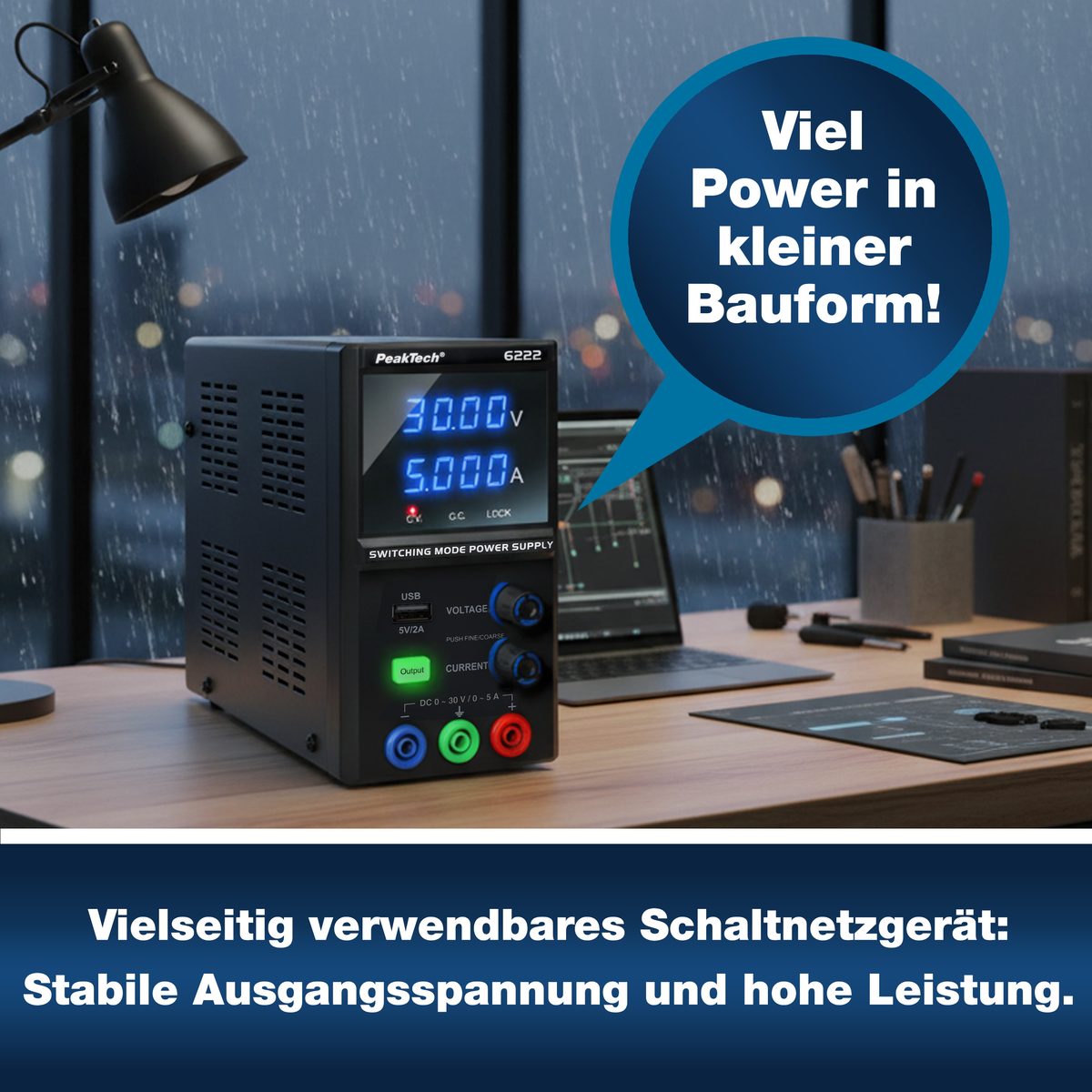

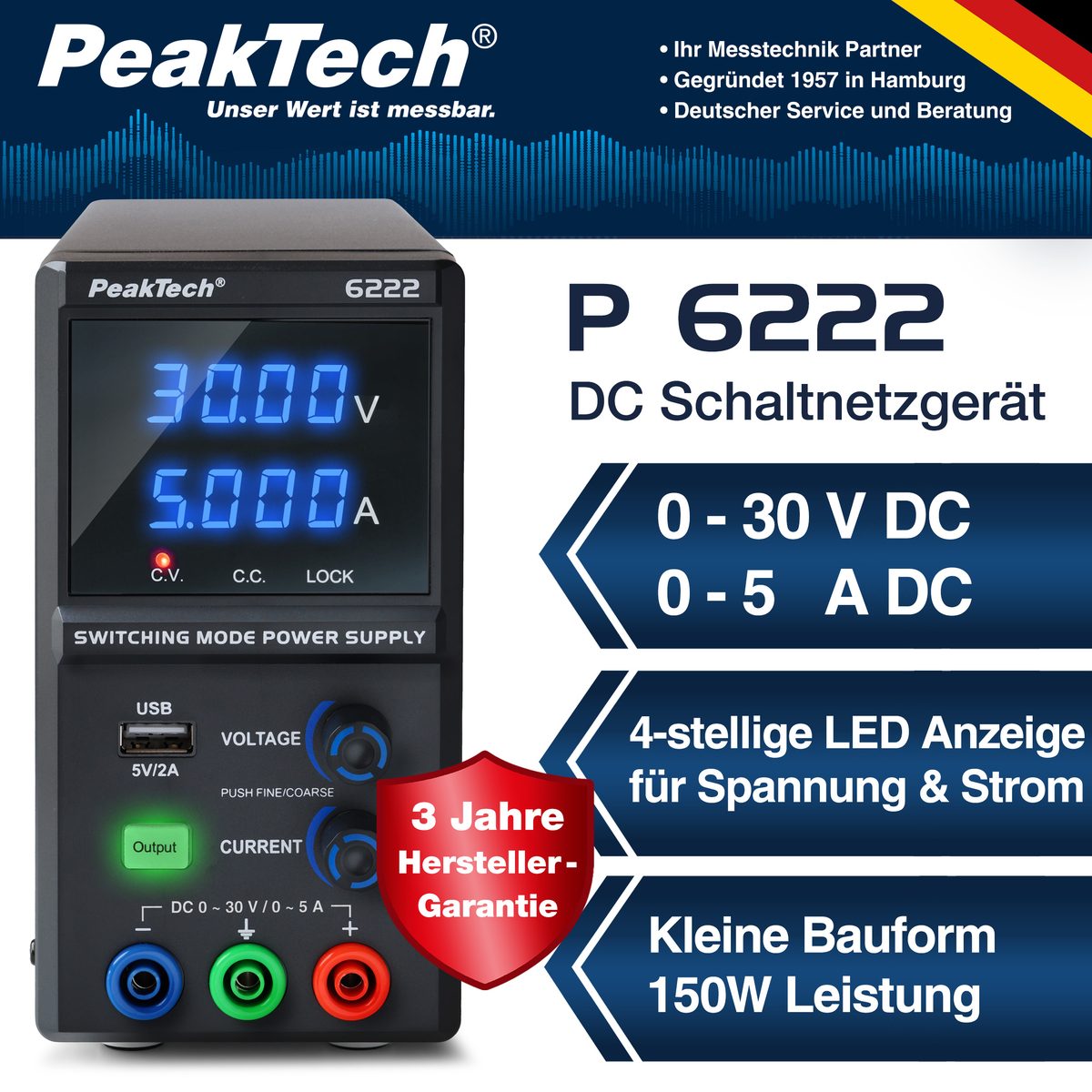

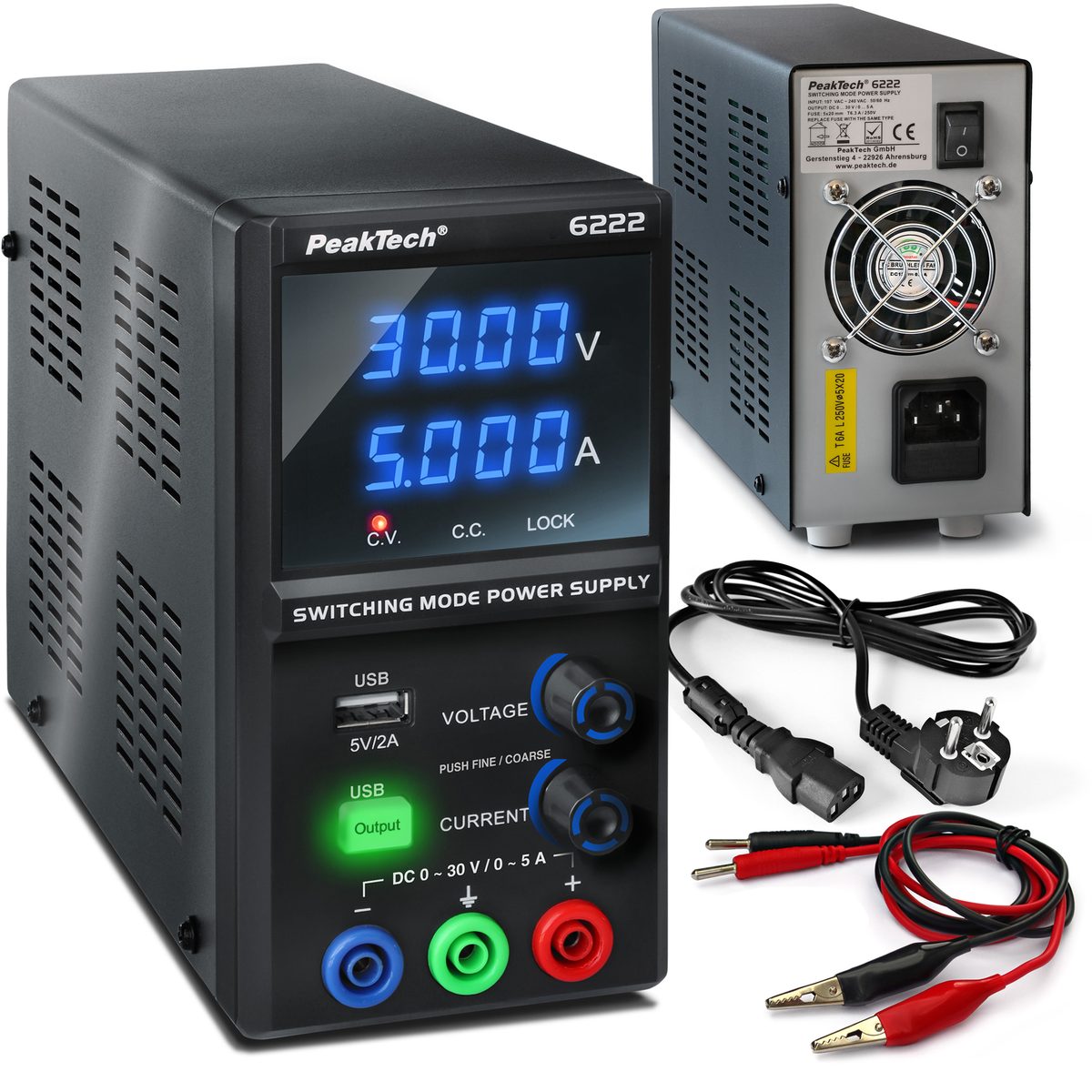

Switching Mode Power Supply 0 - 30 V / 0 - 5 A DC, P 6222

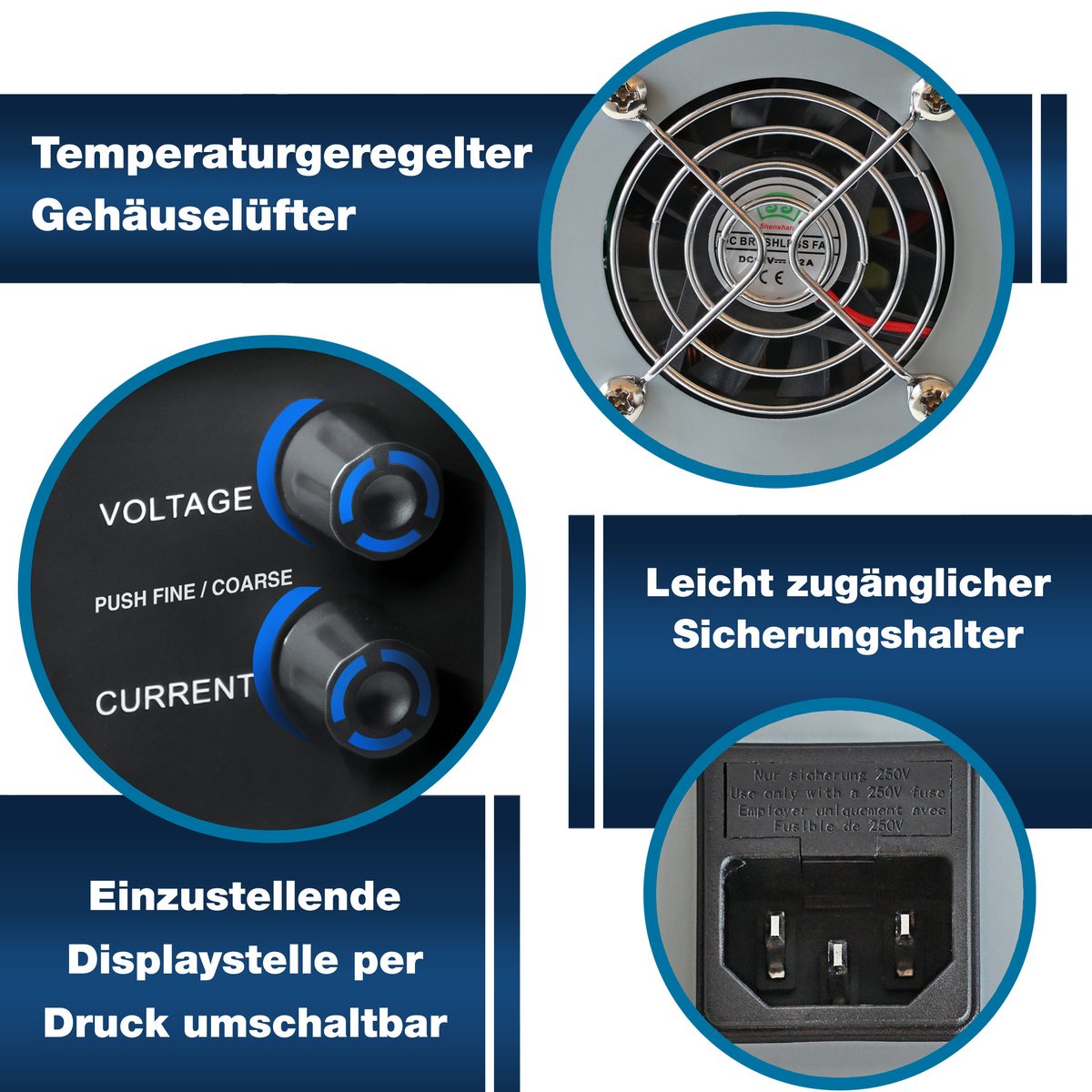

Compact laboratory switching power supply with adjustable output up to 30 V and 5 A and continuous power of 150 W for laboratories, workshops and development. Black housing with blue LED display. Resolution: 1 mA and 10 mV. The switchable output allows current and voltage to be preset with the output off. A front USB port (5 V / 2 A) charges devices or powers loads such as development boards. A temperature-controlled fan provides quiet operation and prevents overheating during prolonged use.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 6222
- USB
- Yes (power only)
- Channels
- 1 CH
- Display Type
- Segment
- Input connector
- IEC socket
- Input voltage
- 115 - 230 VAC 50/60 Hz
- Output Connection
- 4 mm socket
- Output Current
- 0 - 5 A
- Output Voltage
- 0 - 30 V DC
- Remote Control
- □
from
€99.00
Variants & pricing
Switching Mode Power Supply 0 - 30 V / 0 - 5 A DC, P 6222
P 6222€99.00
