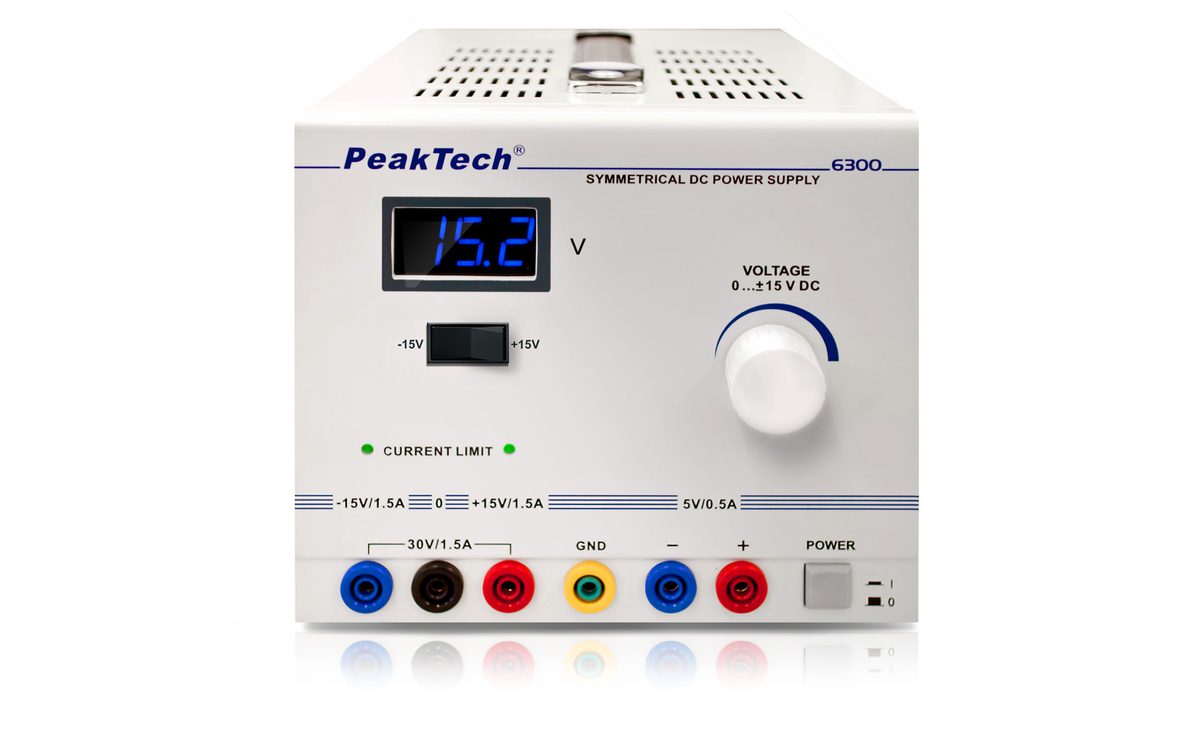

Symmetrical DC power supply, max. 30 V DC, P 6300
Laboratory power supply with stepless symmetrical output-voltage adjustment. Three front output sockets include a centre tap (0). The negative output relative to the centre tap provides −15–0 V DC and the positive output 0–15 V DC. Connecting the load between positive and negative terminals provides up to 30 V DC. An additional fixed 5 V / 0.5 A DC output is included.
For training and demonstrating DC polarity.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 6300
- Auxiliary output
- 5 V DC
- Channels
- 1 CH
- Cooling
- Active
- Display Type
- Segment
- Input voltage
- 230 VAC / 50 Hz
- Output Current
- 0 - 1,5 A
- Output Voltage
- +/- 15 V DC
- SELV
- Yes
from
€198.00
Variants & pricing
Symmetrical DC power supply, max. 30 V DC, P 6300
P 6300€198.00
