Power supplies & measuring instruments

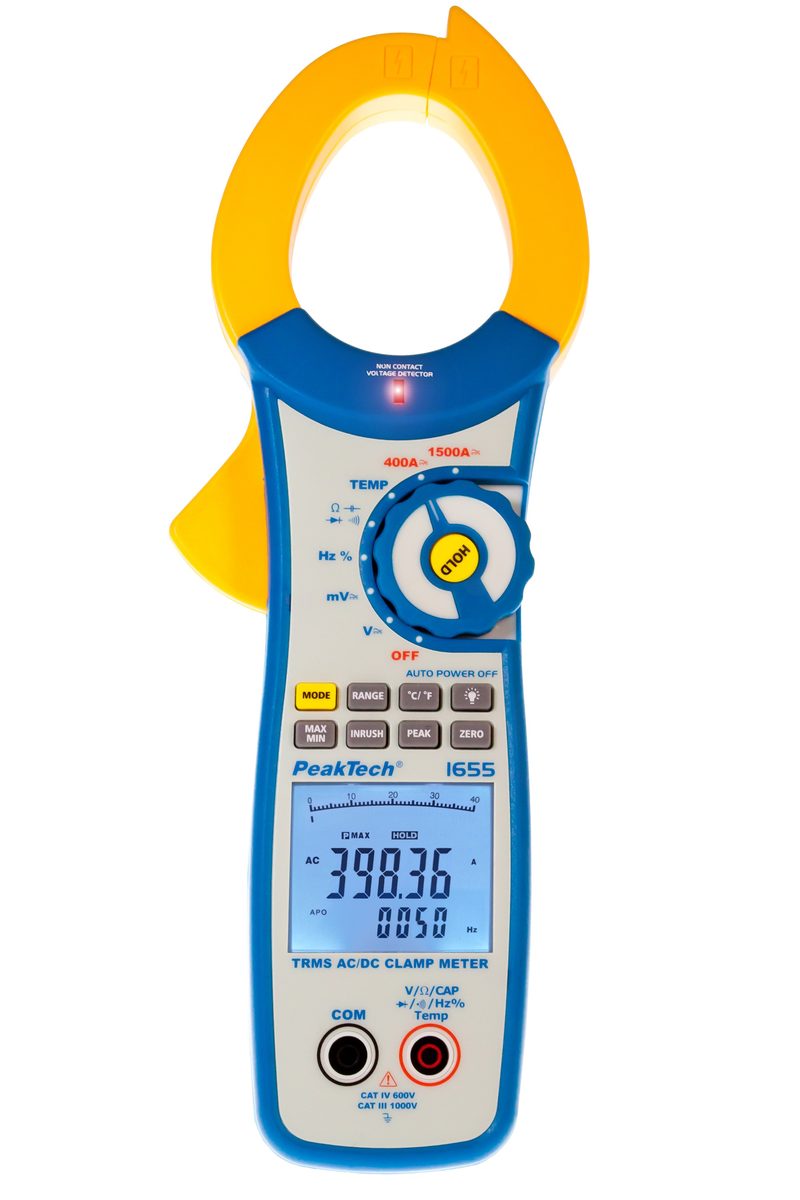

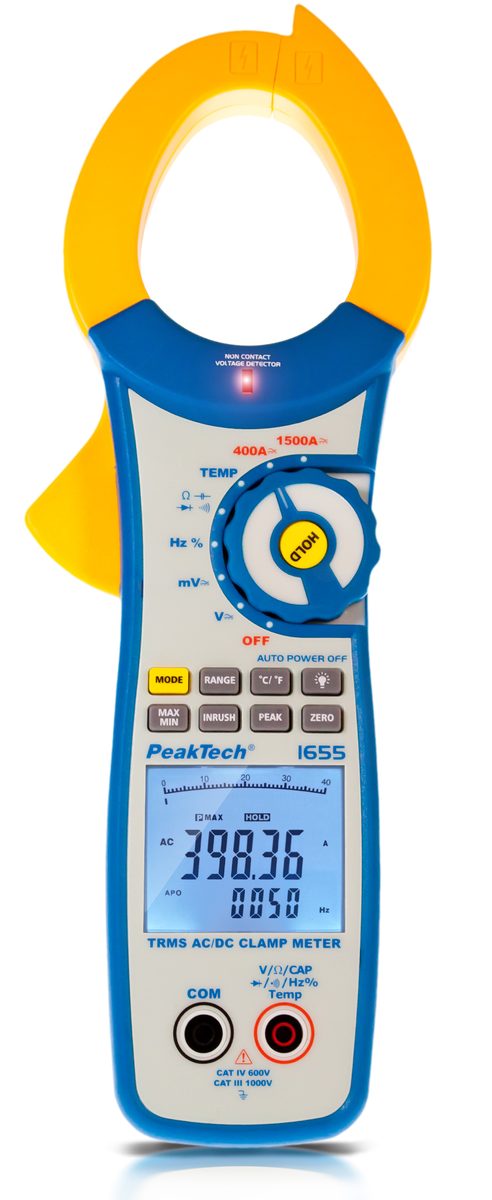

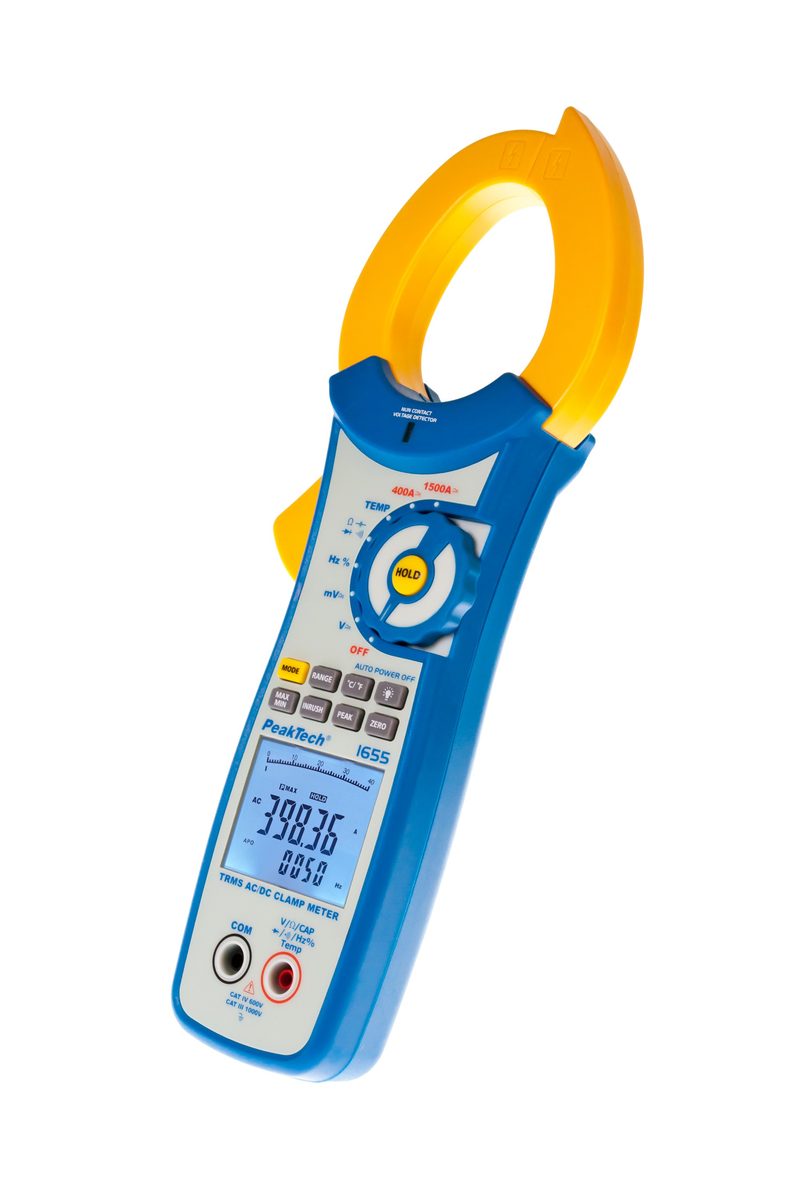

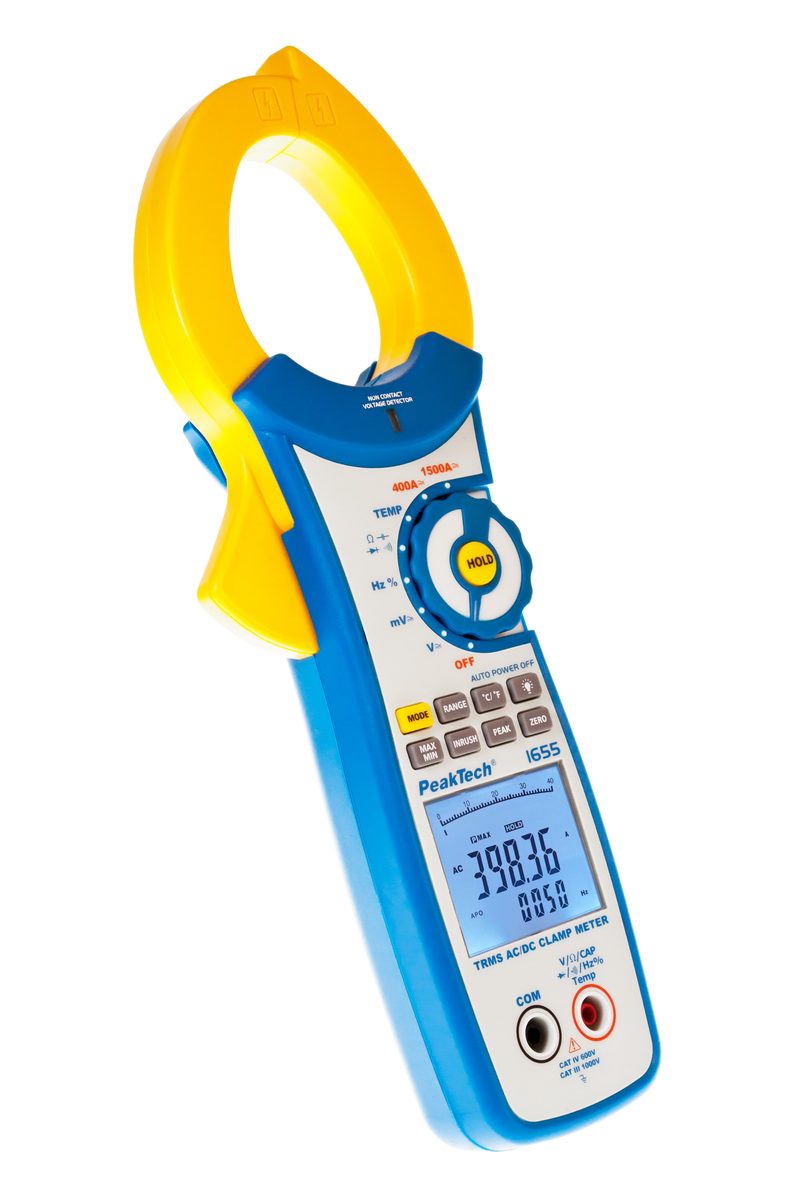

True RMS clamp meter, 40,000 counts, 1500 A AC/DC, P 1655

The P 1655 measures AC and DC currents up to 1500 A with a current clamp for cable diameters up to 55 mm. Its 40,000-count display gives a particularly fine reading, with a basic DC voltage accuracy of 0.1%. Besides the wide AC and DC current ranges, it offers extensive multimeter functions for voltage, resistance, frequency, capacitance and temperature measurement, as well as continuity testing with an audible signal and diode testing. Special functions include fast inrush current measurement (Inrush), peak value capture (Peak) and a non-contact voltage indicator (NCV). Current and voltage are measured as true RMS values, so readings are correct even for waveforms that deviate from a sine wave. Designed for daily use in trade and industry.

Also listed in: Education: Power supplies & measuring instruments

Specifications

Brand
PeakTech · P 1655
Max. capacitance
40 mF
Jaw opening
55 mm
Display counts
40,000
Display type
LCD
Non-contact voltage detection (NCV)
Yes
Overvoltage category
CAT III 1000 V, CAT IV 600 V
Max. DC voltage
1000 V
Max. AC current
1500 A
Max. resistance
40 MΩ
Max. temperature
1000 °C
Min. temperature
-40 °C
Max. DC voltage, mV range
400 mV
Max. AC voltage
750 V
Max. AC voltage, mV range
400 mV
Max. DC current
1500 A

from

€143.00

All options (1)

Variants & pricing

  • True RMS clamp meter, 40,000 counts, 1500 A AC/DC, P 1655

    P 1655€143.00
