Power supplies & measuring instruments

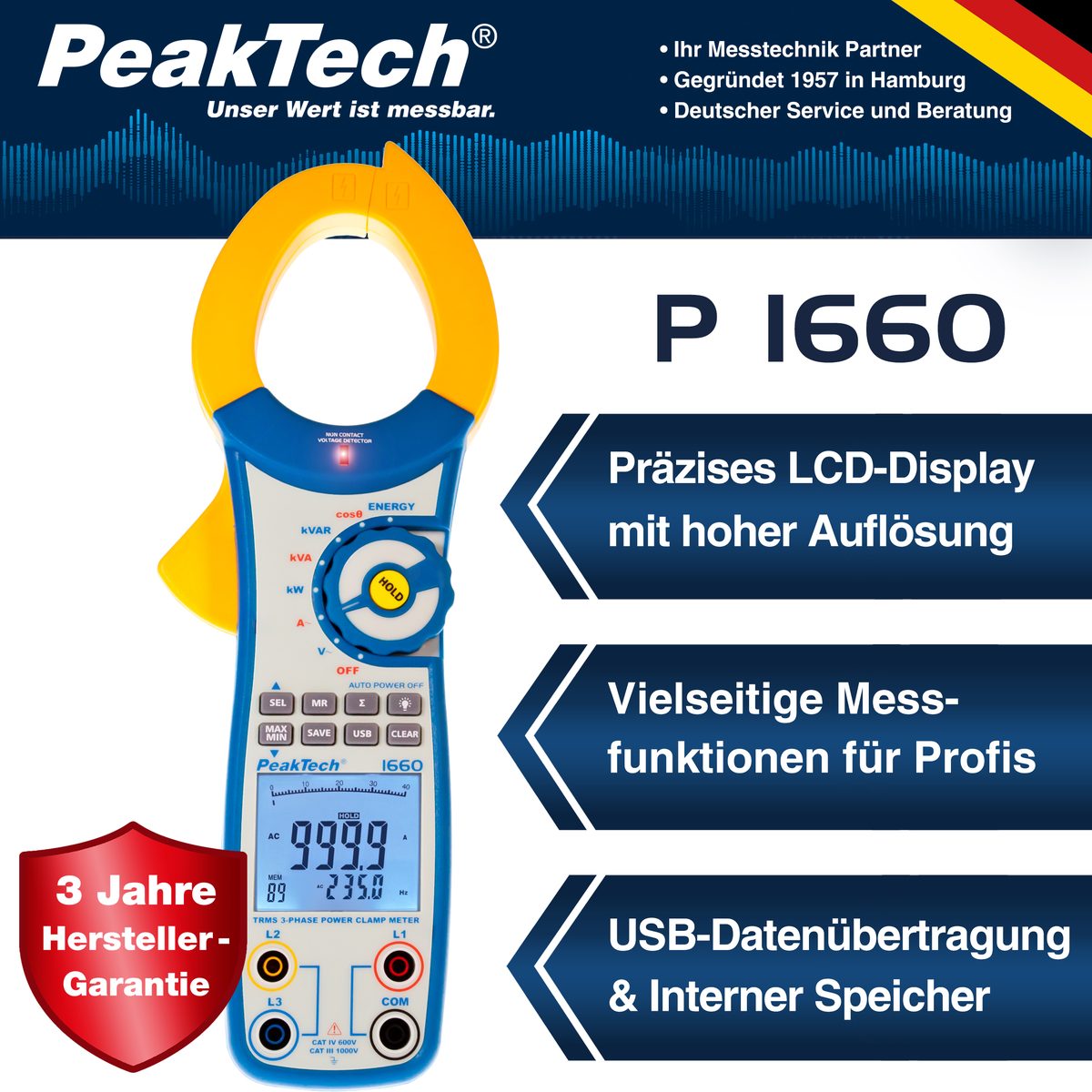

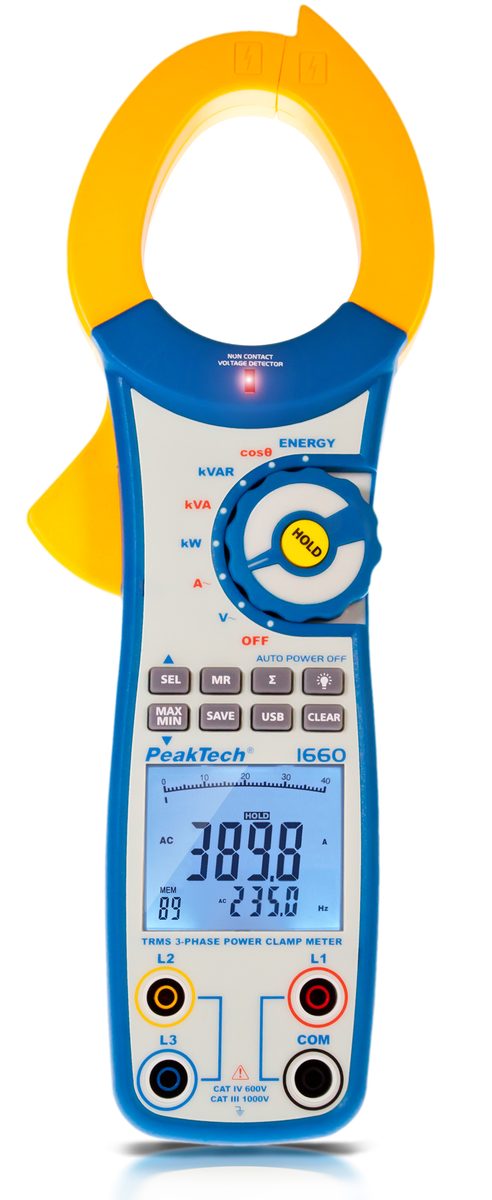

True RMS power clamp meter, 1000 A AC, up to 750 kW, P 1660

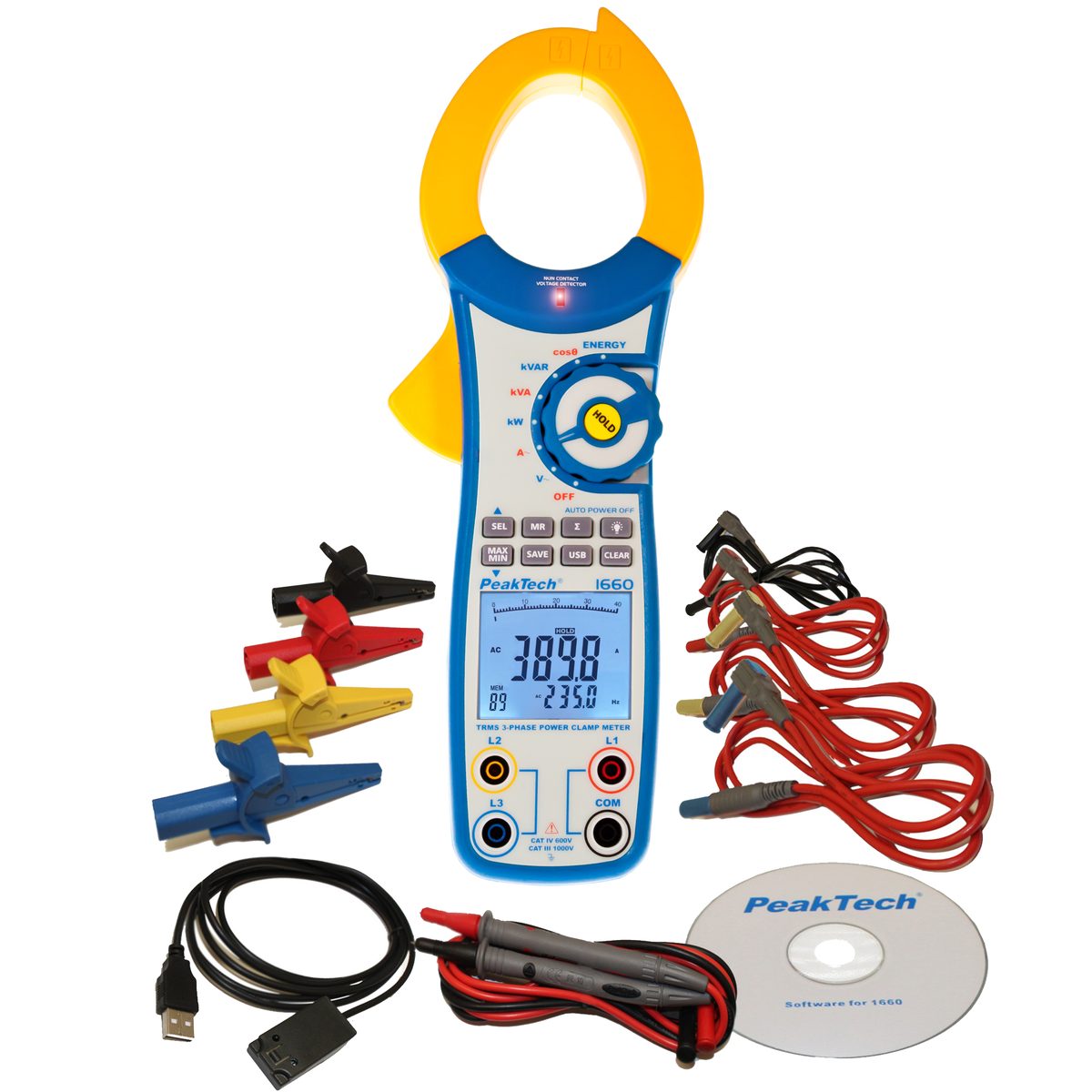

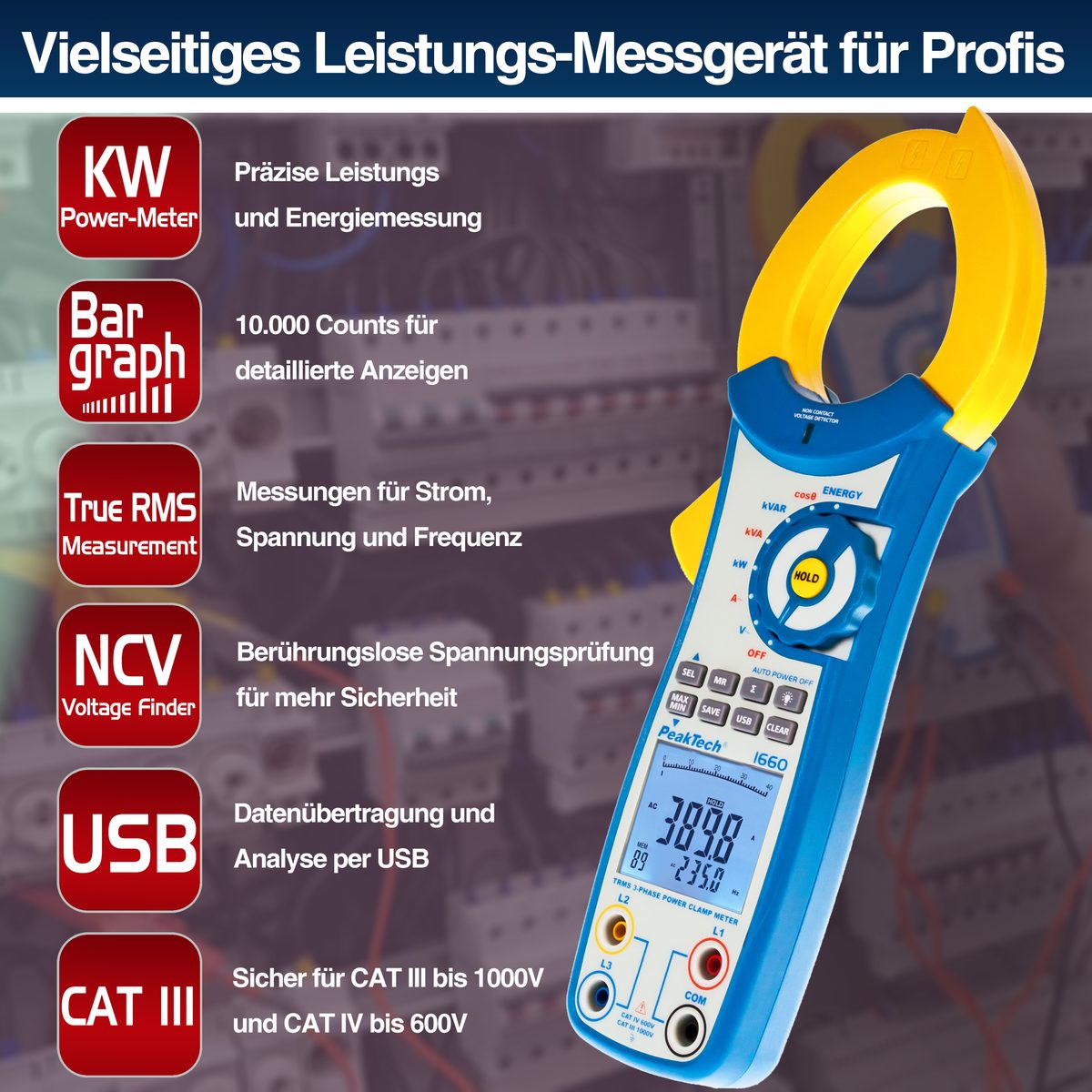

The P 1660 is a single- and three-phase True RMS AC clamp meter with many additional functions: besides AC current (ACA) and AC voltage (ACV), it measures active power (kW), apparent power (kVA), reactive power (kVAR), energy (kWh), power factor (cos φ), frequency (Hz) and phase angle (°). All readings can be taken from the backlit LCD even in poorly lit rooms. The meter also has a USB PC interface for data acquisition, an internal memory for 99 measurement data sets, and min/max and data hold functions. Supplied with extensive accessories; designed for use in trade and industry.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1660
- USB interface
- Yes
- Jaw opening
- 55 mm
- Display counts
- 10,000
- Display type
- LCD
- GS mark (tested safety)
- Yes
- Non-contact voltage detection (NCV)
- Yes
- Overvoltage category
- CAT III 1000 V, CAT IV 600 V
- Power factor
- 0.3 … 1
- Power measurement
- Yes
- Max. energy
- 10,000 kWh
- Max. AC current
- 1000 A
- Max. AC voltage
- 750 V
from
€187.00
Variants & pricing
True RMS power clamp meter, 1000 A AC, up to 750 kW, P 1660
P 1660€187.00
