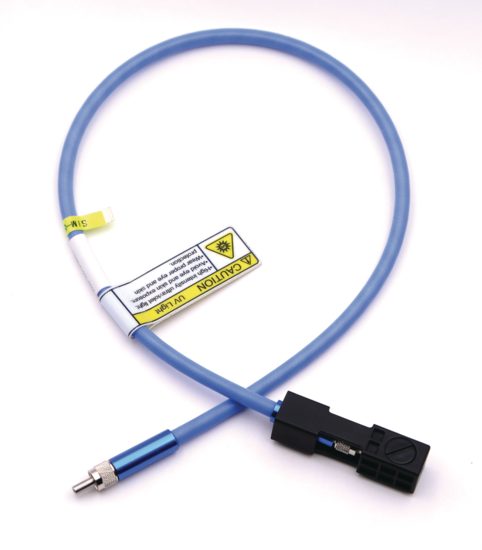

UV-Vis Fiber Optic Kit
A fibre optic kit with a quartz-core cable and an attached reflective cuvette that reflects light perpendicularly into the detector. Designed specifically for the PASCO UV-Vis Spectrometer (SE-3607).
Specifications
- Brand
- PASCO · SE-7182
- Length
- 0.50 m
- Diameter
- 0.200 mm
- Optically Transparent Range
- 180 to 2500 nm
- Structure
- Single in single out cable
- Material
- Fluorine doped quartz
- Coating
- Acrylic
- Outer Sheath
- Tefzel®
- Transmission efficiency
- Single core 85% (632.8 nm)
- Output shape
- Round
- Connector
- SMA
- Bending Radius
- 30 mm (short-term) 60 mm (long-term)
- Operating Temperature
- –40ºC to +100ºC
- Redirecting Cuvette Mirror
- Front surfaced optical mirror
On request
Variants & pricing
UV-Vis Fiber Optic Kit
SE-7182On request
