Venturi tube

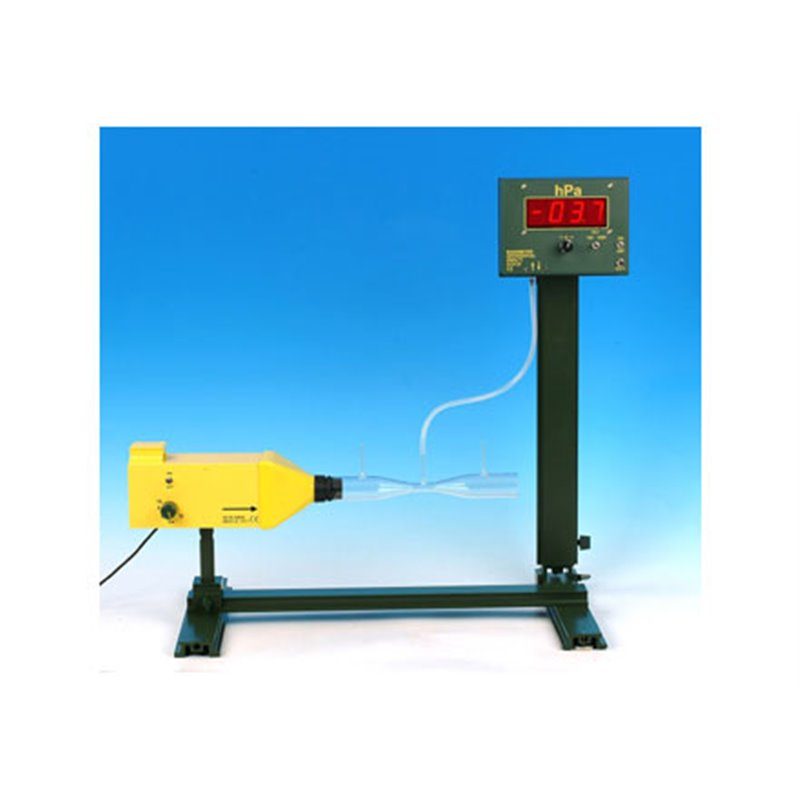

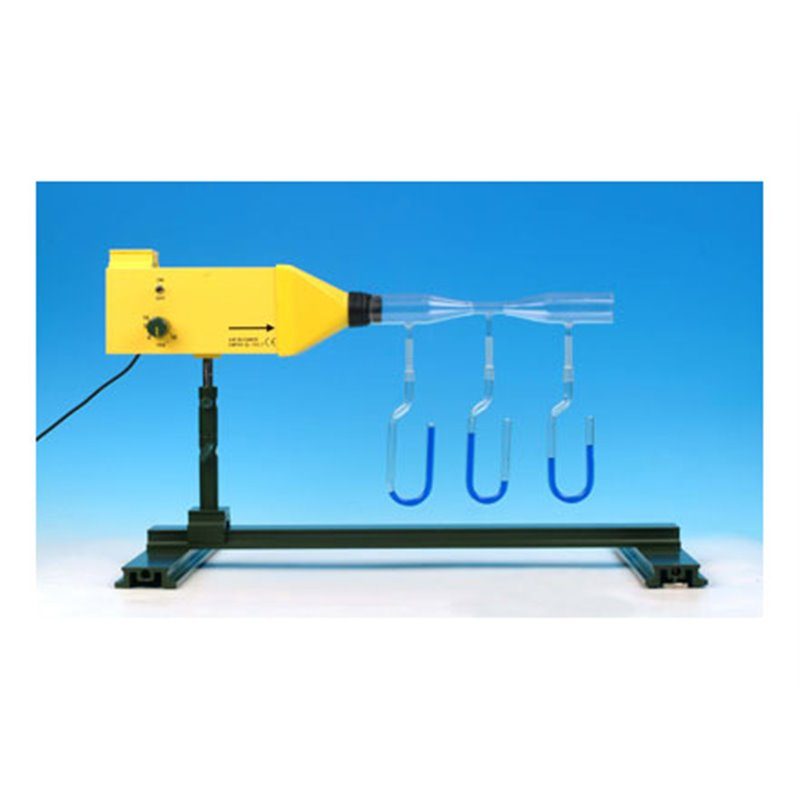

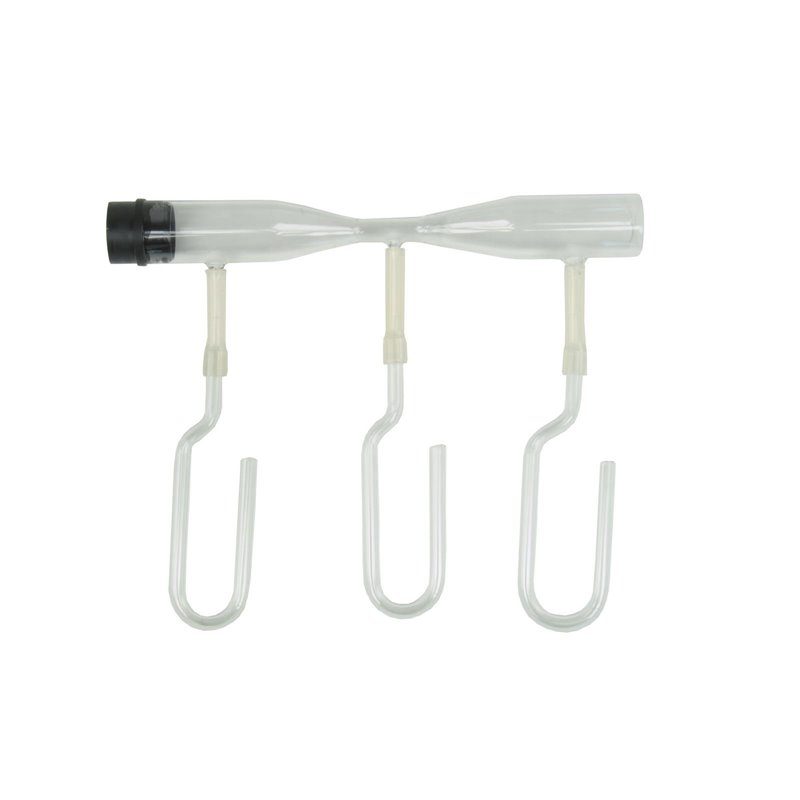

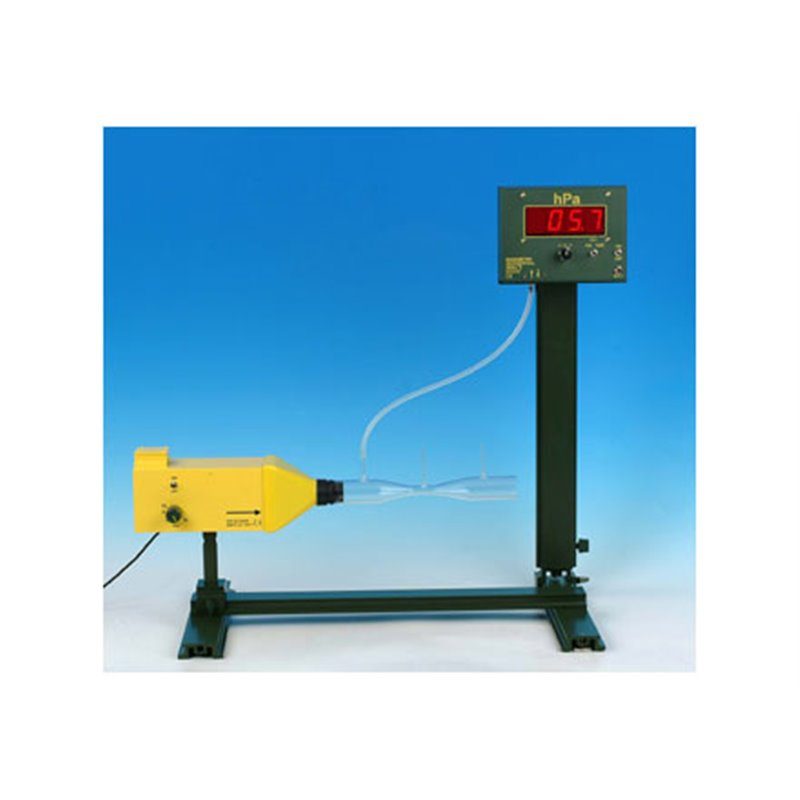

A Venturi tube for investigating pressure changes in air flowing through a constricted tube. The glass tube has a constriction, three connectors, a plastic sleeve at one end, and manometer tubes (L = 130 mm) with a silicone hose connector. Dimensions: L = 250 mm, D = 28 mm / 10 mm at the constriction.
