Photo 1 of 6

Autoclaves & sterilisation

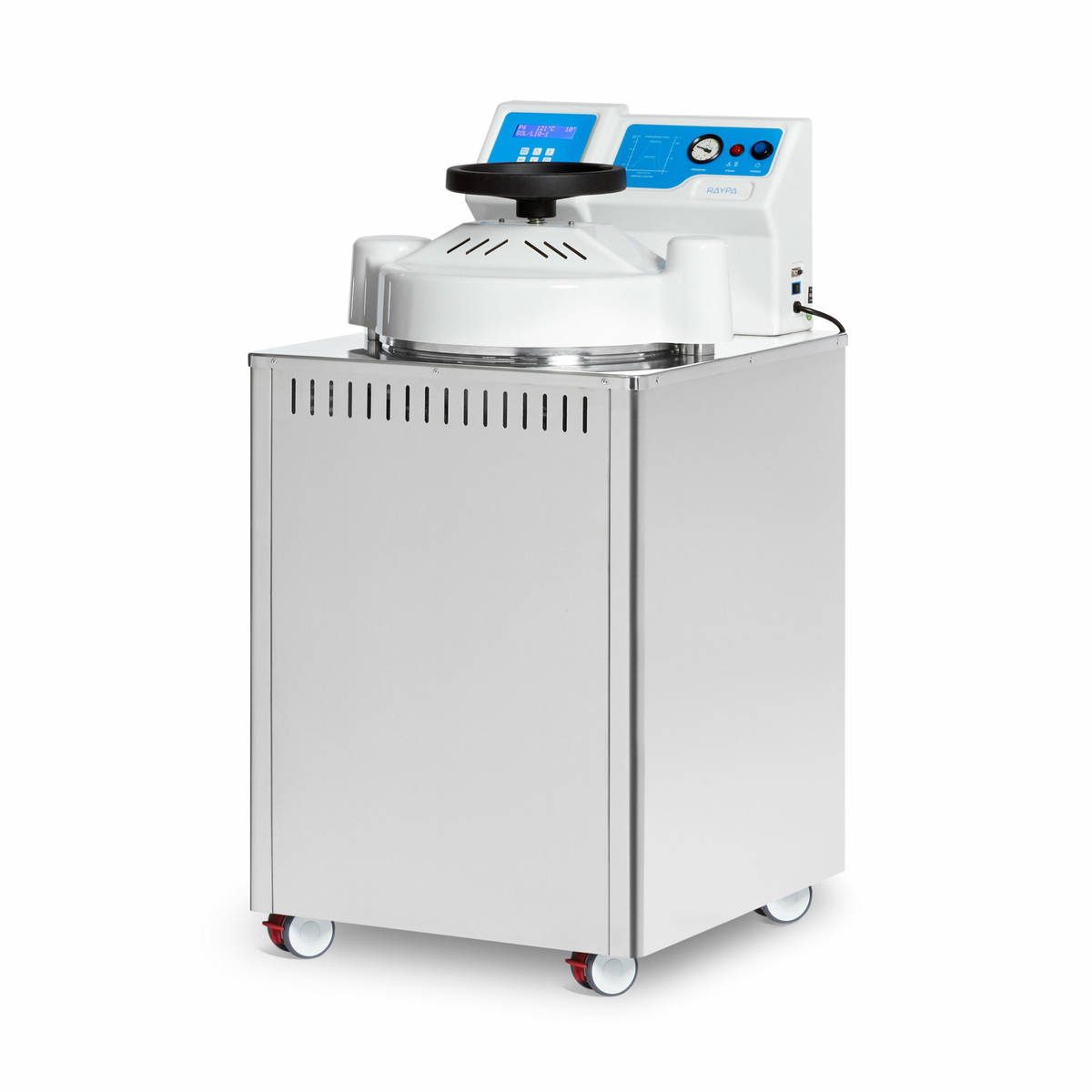

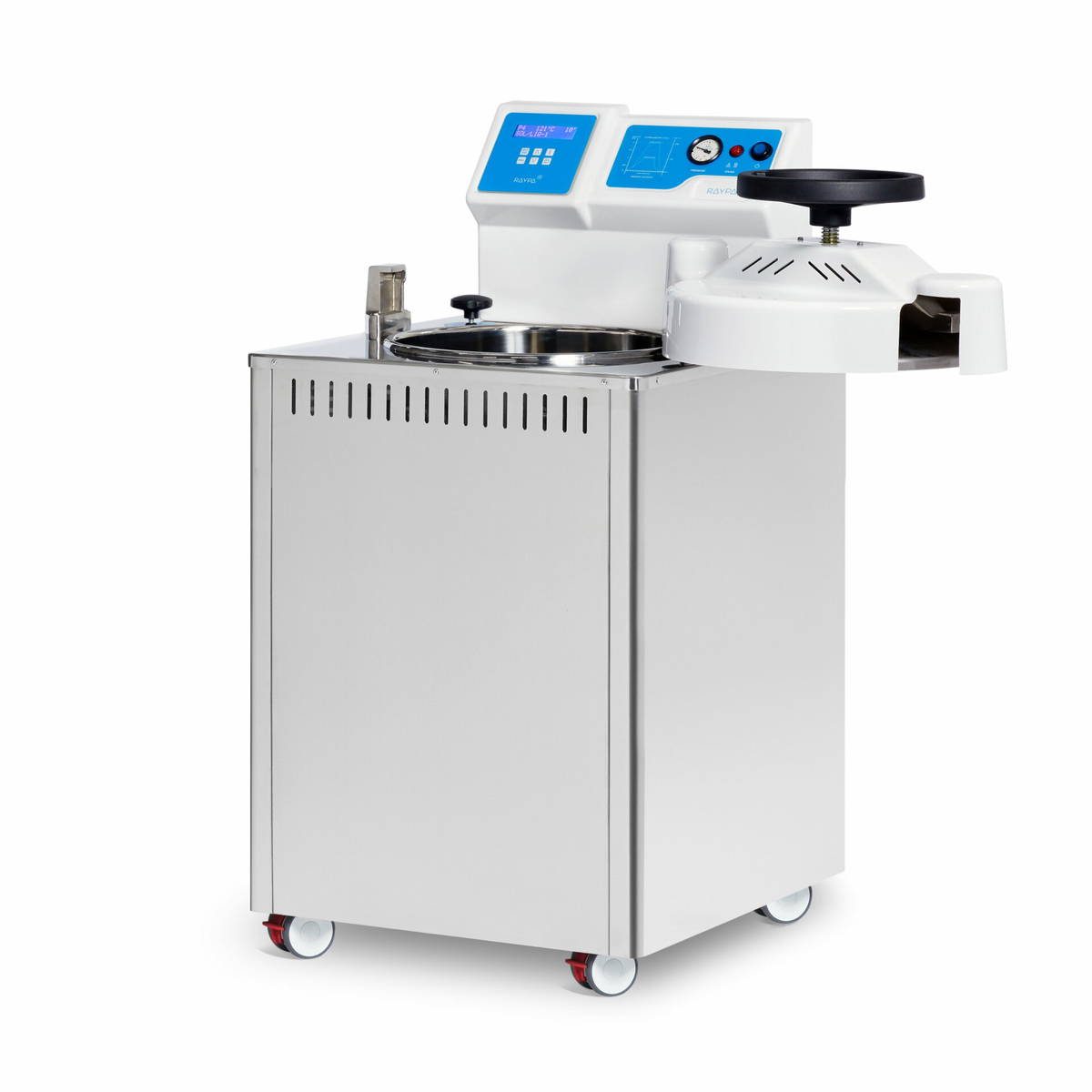

Vertical autoclaves without drying, AES series

AES series vertical laboratory autoclaves without drying are designed to sterilize a wide variety of laboratory materials economically and simply.

The AES series vertical autoclaves meet the basic sterilization needs of laboratories in industrial, educational and research facilities, increasing productivity and simplifying sterilization.

They are designed for sterilizing a wide range of solid and liquid loads, including glass, plastics, metal utensils, laboratory waste bags, liquids, culture media and other laboratory items.

Suitable for the general laboratory, they are optimized for easy operation, have multiple safety features to protect users in daily routine work, and are very simple to install as plug-and-play equipment.

  • Cost-effective, with robust performance
  • Easy to use, simple to install, minimal maintenance
  • Excellent construction materials

Also listed in: Food technology: Food microbiology

Specifications

Brand
RAYPA · AES-28 +4
Frequency (Hz)
50/60
Note
Other voltages and electrical configurations available on request. Special models with increased power may operate with other voltages.

On request

All options (5)

Variants & pricing

  • Total/usable volume of the chamber (L)
    33/31
    Usable dimensions of the chamber (Ø x H mm)
    300 x 440
    External dimensions (L x D x H mm)
    505 x 580 x 1110
    Loading height (mm)
    795
    Net weight (Kg)
    61
    Power (W)
    2000 or 2800
    Voltage (V)
    230
    AES-28On request
  • Total/usable volume of the chamber (L)
    55/50
    Usable dimensions of the chamber (Ø x H mm)
    300 x 710
    External dimensions (L x D x H mm)
    505 x 580 x 1290
    Loading height (mm)
    975
    Net weight (Kg)
    65
    Power (W)
    2800 or 5000
    Voltage (V)
    230
    AES-50On request
  • Total/usable volume of the chamber (L)
    79/75
    Usable dimensions of the chamber (Ø x H mm)
    400 x 600
    External dimensions (L x D x H mm)
    610 x 700 x 1185
    Loading height (mm)
    870
    Net weight (Kg)
    98
    Power (W)
    3200 or 6000
    Voltage (V)
    230
    AES-75On request
  • Total/usable volume of the chamber (L)
    115/110
    Usable dimensions of the chamber (Ø x H mm)
    400 x 850
    External dimensions (L x D x H mm)
    610 x 700 x 1435
    Loading height (mm)
    1120
    Net weight (Kg)
    122
    Power (W)
    4500, 6000 or 9000
    Voltage (V)
    400
    AES-110On request
  • Total/usable volume of the chamber (L)
    175/153
    Usable dimensions of the chamber (Ø x H mm)
    500 x 780
    External dimensions (L x D x H mm)
    750 x 820 x 1400
    Loading height (mm)
    1085
    Net weight (Kg)
    198
    Power (W)
    6000 or 9000
    Voltage (V)
    400
    AES-150On request
