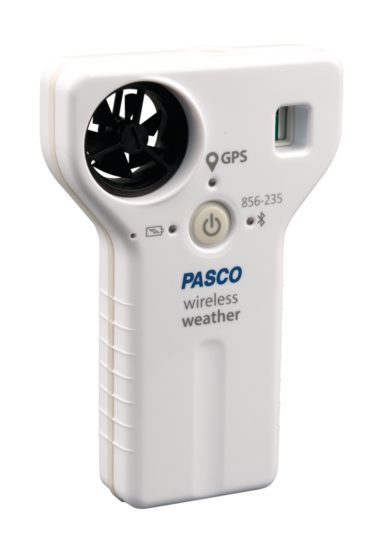

Wireless Weather Sensor with GPS
This sensor offers 19 different measurements, including GPS, that can be monitored live or logged over the long term.
Specifications
- Brand
- PASCO · PS-3209
- Water-resistant
- Splash proof, not designed for long term outdoor measurements in rain or condensing humidity
- Barometric Pressure
- Range: 225 to 825 mm Hg; Resolution: 0.02 mmHg; Accuracy: ± 0.1 mmHg
- Ambient Temperature
- Range: -40 to 125 °C (Optimum circuit range: 5 to 60 °C); Resolution: 0.1 °C; Accuracy: ± 0.2 °C
- Wind Speed
- Range: 0.5 to 15 m/s (winds of up to ~ 33 mph); Resolution: 0.1 m/s; Accuracy: 3% of reading
- Relative Humidity
- Range: 0 - 100%; Resolution: 0.1%; Accuracy: ± 2%
- Illuminance Range* (Light Level)
- 0 to 130,000 lux
- PAR Range (Based on Solar Radiance)
- 0 to 2400 µmol/m 2 /s
- Irradiance Range (Based on Solar Radiance)
- 0 to 1362 W/m 2
- UV Index
- Range: 1 to 12; Resolution: 1; Accuracy: ± 1
- Position (via GPS)
- Range: ± 90 Lat ± 180 Lon; Resolution: 0.00001°; Accuracy: ±0.00005° ~3m (50% CEP)
- Altitude (via GPS)
- Range: 0 to 18,000 m; Resolution: 0.5 m; Accuracy: ~ 5 m (50% CEP)
- Speed (via GPS)
- Range: 0 to 515 m/s; Resolution: 0.05 m/s; Accuracy: 0.05 m/s
- Operating Environment (Temperature)
- 5 to 60°C optimal battery function
- Operating Environment (Max Wind Speed)
- 65 mph
- GPS Channels
- 66
- GPS Warm Up Time
- 35 s
- USB Connector Type
- Micro USB
- Connectivity
- USB and Bluetooth 5.2
- Logging
- Yes
- Battery Type
- Rechargeable LiPo
- Battery & Logging — Stored Data Points Memory (Logging) 1
- >35,000
- Battery & Logging — Battery - Connected (Data Collection Mode) 2
- >44 hr
- Battery & Logging — Battery - Logging (Data Logging Mode) 3
- 1.5 days (with GPS), 11 days (w/o GPS) every other minute rate
- Battery & Logging — Battery Type
- Rechargeable LiPo
On request
Variants & pricing
Wireless Weather Sensor with GPS
PS-3209On request
