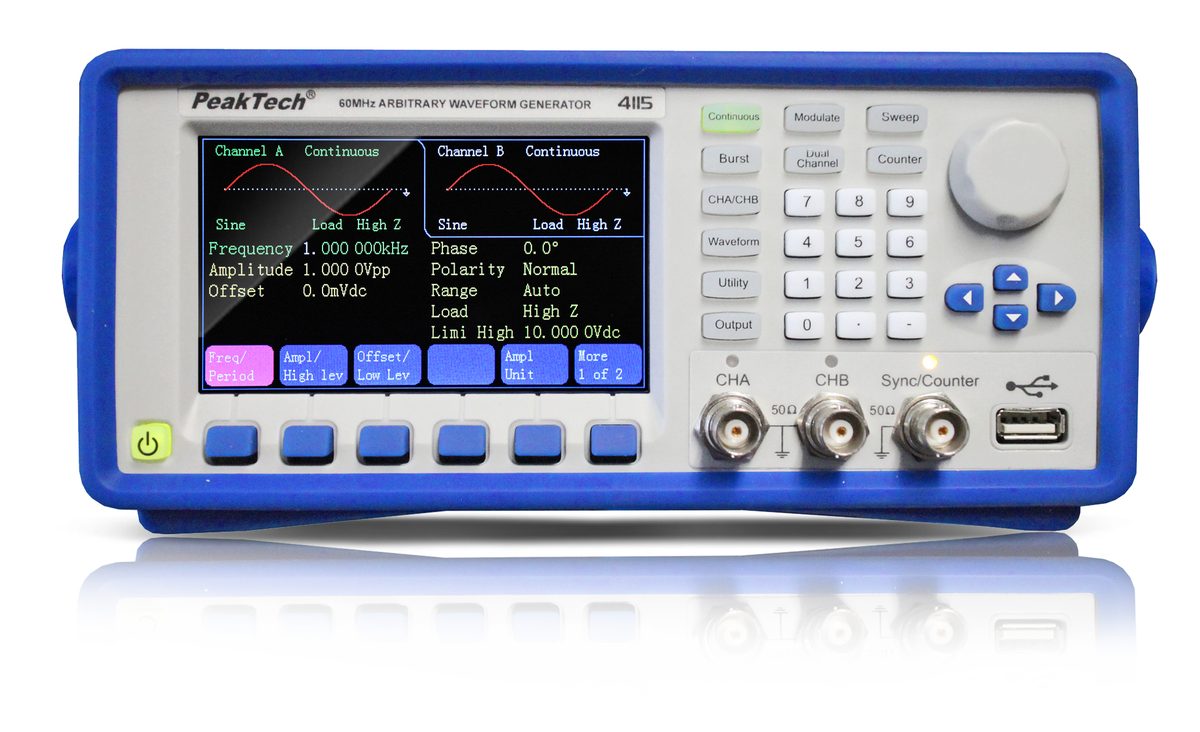

Arbitrary waveform generator, 2 channels, 1 µHz–60 MHz, P 4115
Arbitrary waveform generator with two equivalent output channels, numerous stored arbitrary waveforms and multiple modulation types. Connects to a computer using the supplied software to edit waveforms and modulation settings.
Suitable for research, development and training.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 4115
- USB
- Yes
- Amplitude
- 0 - 20 Vpp
- Bandwidth
- 60 MHz
- Channels
- 2 channels
- Display Type
- Colour TFT
- Freq. resolution
- 1 µHz
- Modulation
- AM, BPSK, FM, FSK, PM, PSK, PWM, SUM
- Power amplifier
- Yes
- RS-232
- Yes
- Sampling Rate
- 150 MS/s
- Sine
- 1 µHz - 60 MHz
- Square
- 1 µHz - 10 MHz
- Ramp
- 1 µHz - 5 MHz
- Pulse
- 1 µHz - 10 MHz
- Arbitrary
- 1 µHz - 5 MHz
from
€770.00
Variants & pricing
Arbitrary waveform generator, 2 channels, 1 µHz–60 MHz, P 4115
P 4115€770.00
