Power supplies & measuring instruments

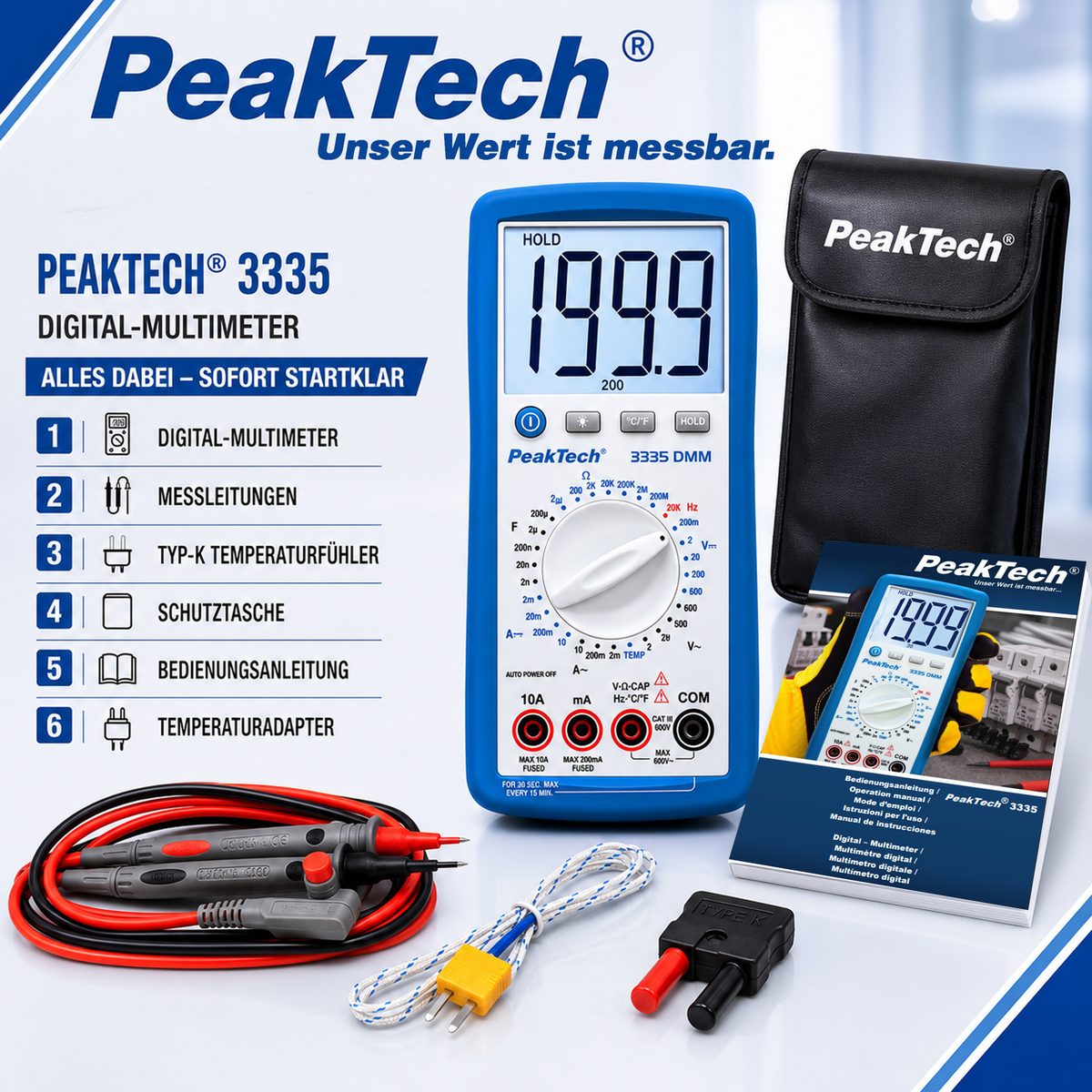

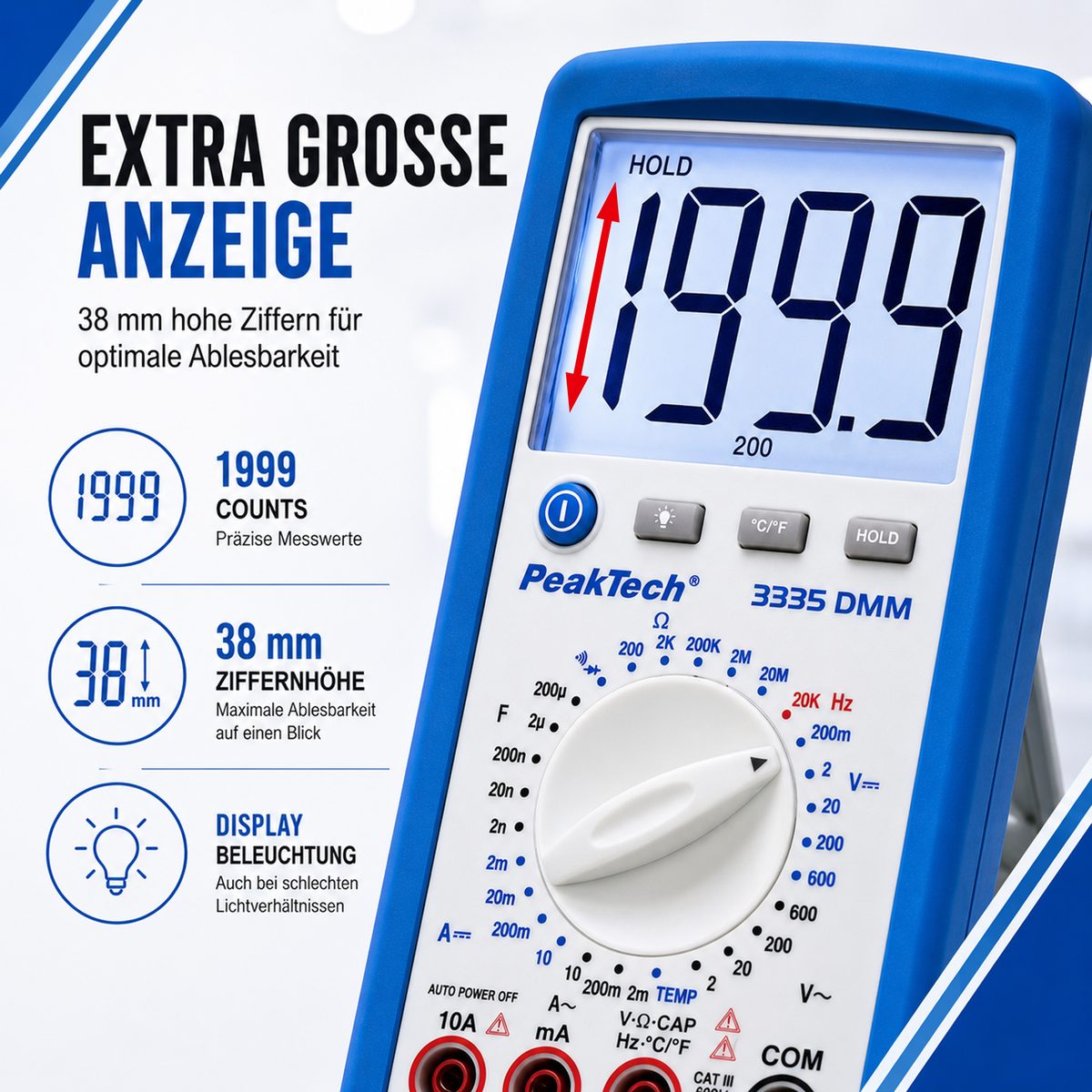

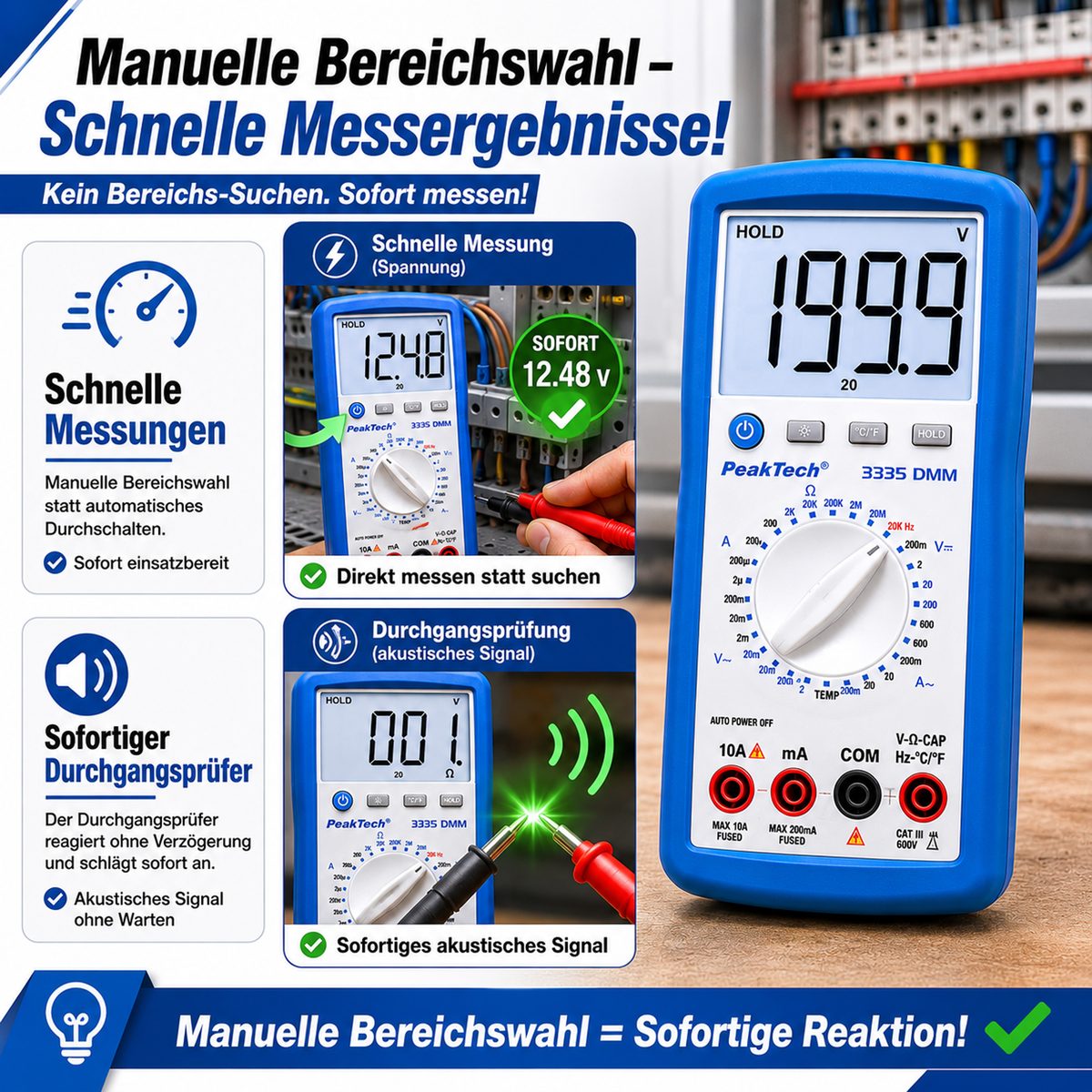

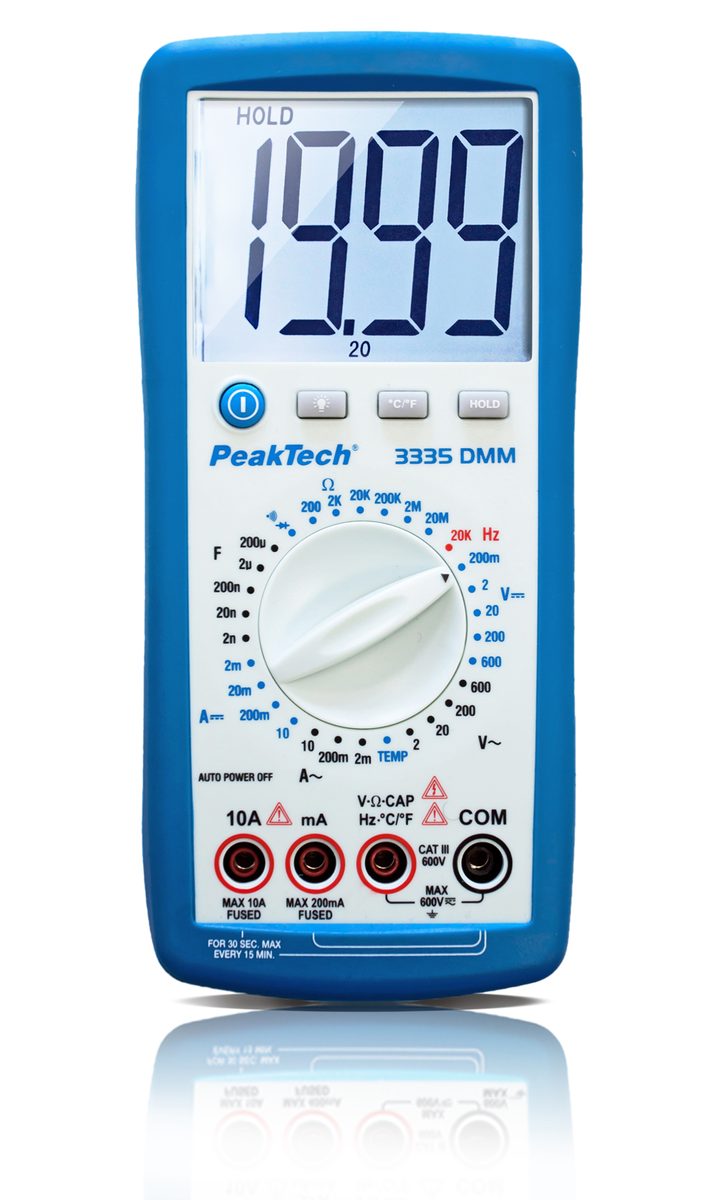

Digital multimeter, 2000 counts, 600 V AC/DC, P 3335
Multimeter with a backlit LCD for voltage, current, capacitance, frequency, temperature and resistance measurements. Includes fast audible continuity testing and diode testing. Measurement ranges are marked on the instrument and selected with the rotary switch. Hold freezes any displayed value for recording.
Also listed in: Education: Power supplies & measuring instruments

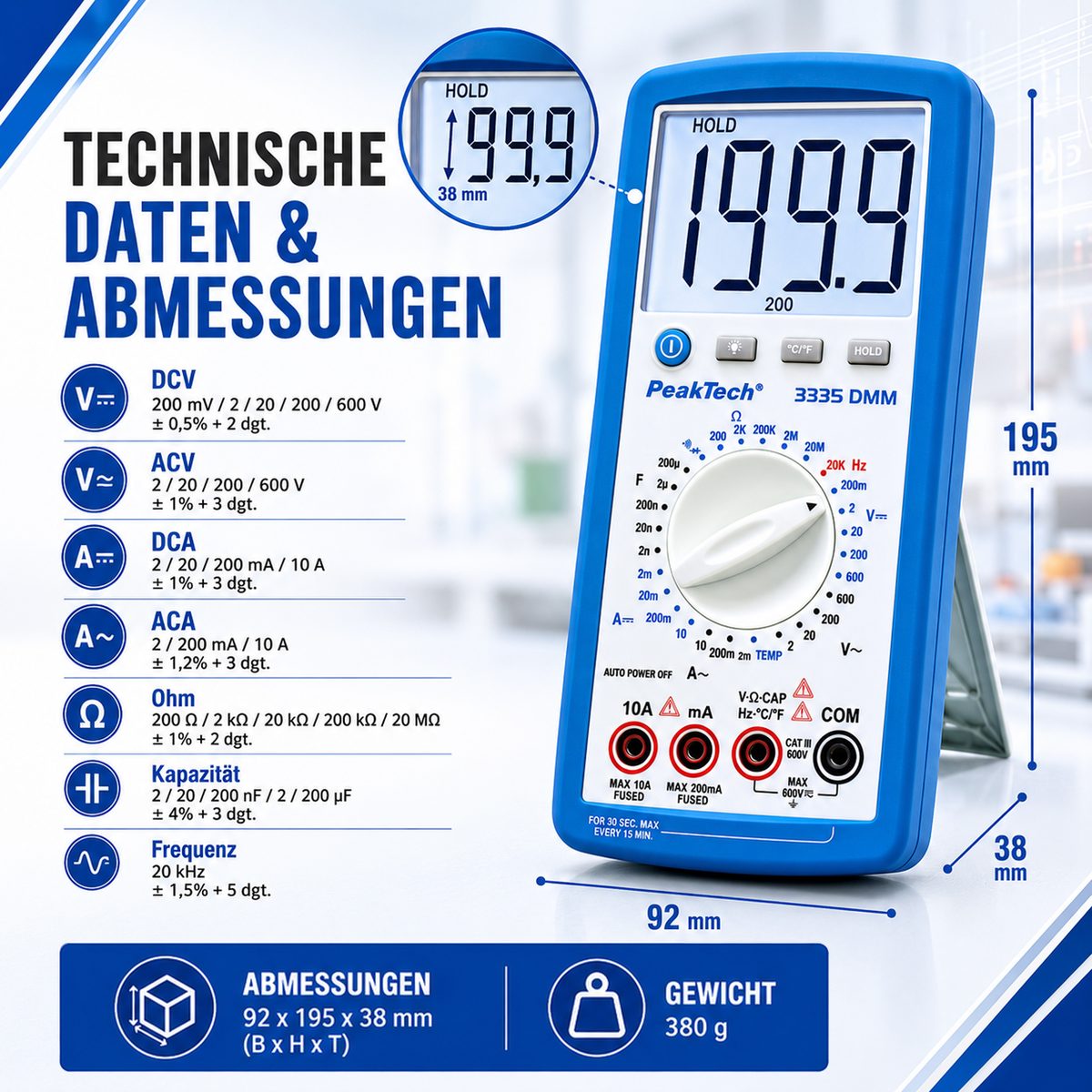

Specifications
- Brand
- PeakTech · P 3335
- Basic Accuracy DC
- ± 0,5 %
- Capacitance max.
- 200 µF
- Display counts
- 2 000
- Display Type
- LCD
- Over voltage category
- CAT III 600 V
- Range selection
- Manual
- V DC max.
- 600 V
- A AC max.
- 10 A, 20 A
- OHM max.
- 20 MΩ
- Temp. max.
- 760 °C
- Temp. min.
- -20 °C
- mA DC max.
- 200 mA
- mV DC max.
- 200 mV
- V AC max.
- 600 V
- A DC max.
- 10 A, 20 A
- mA AC max.
- 200 mA
from
€54.00
Variants & pricing
Digital multimeter, 2000 counts, 600 V AC/DC, P 3335
P 3335€54.00
