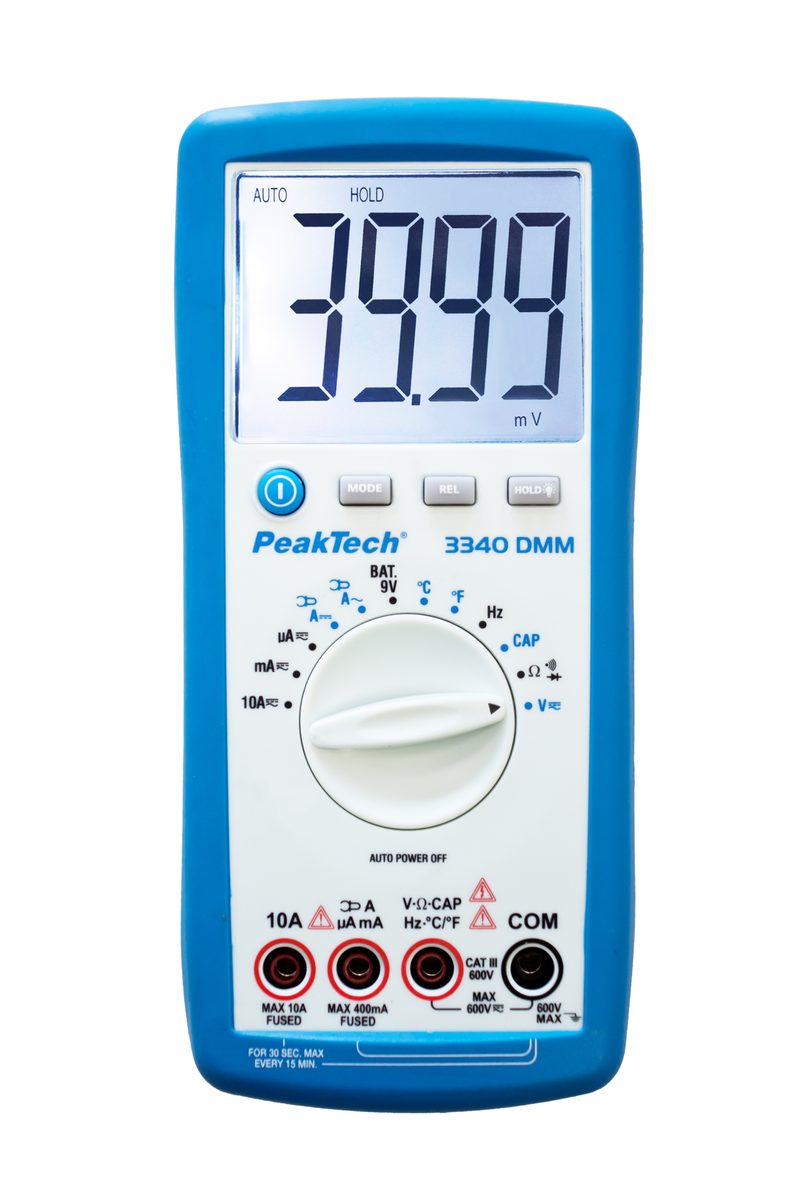

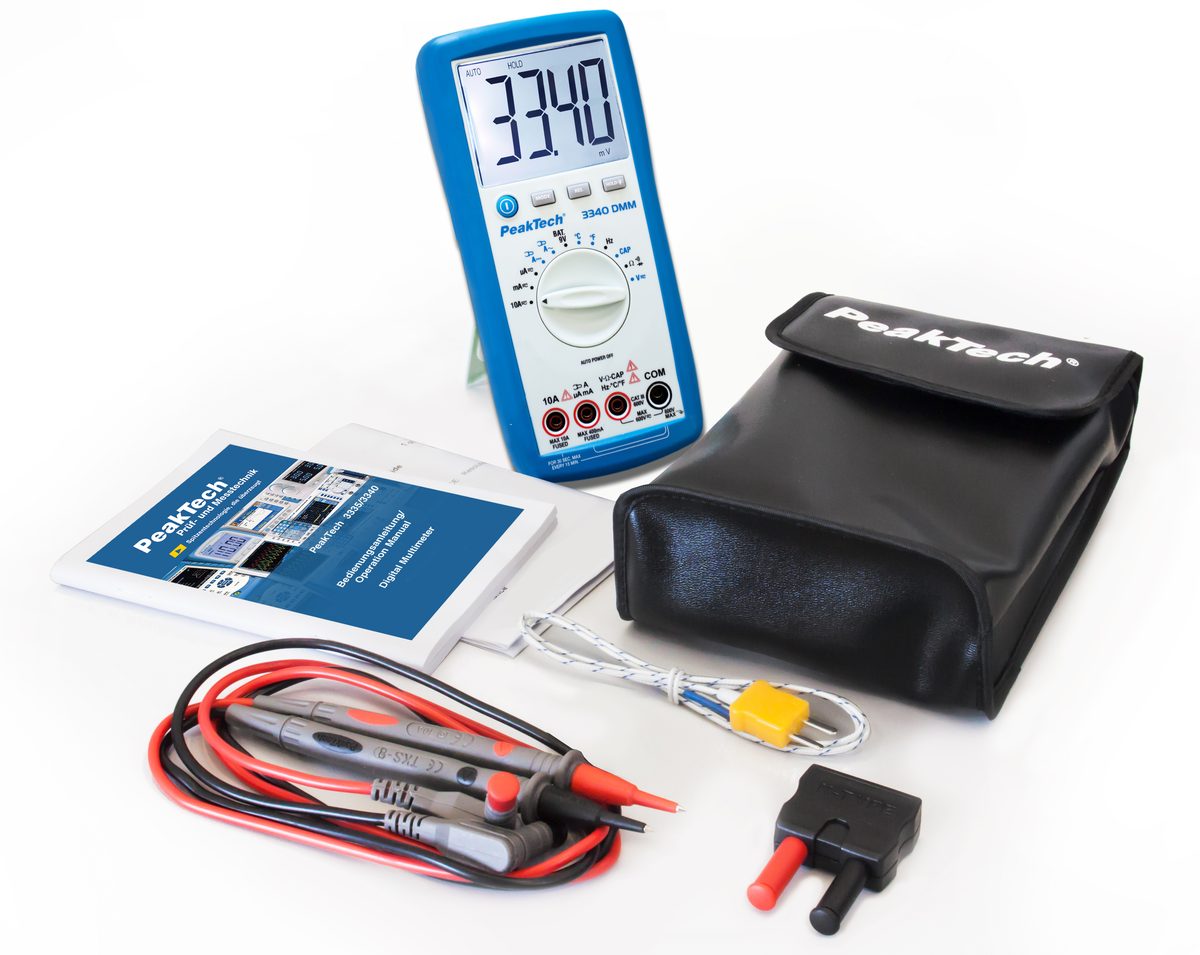

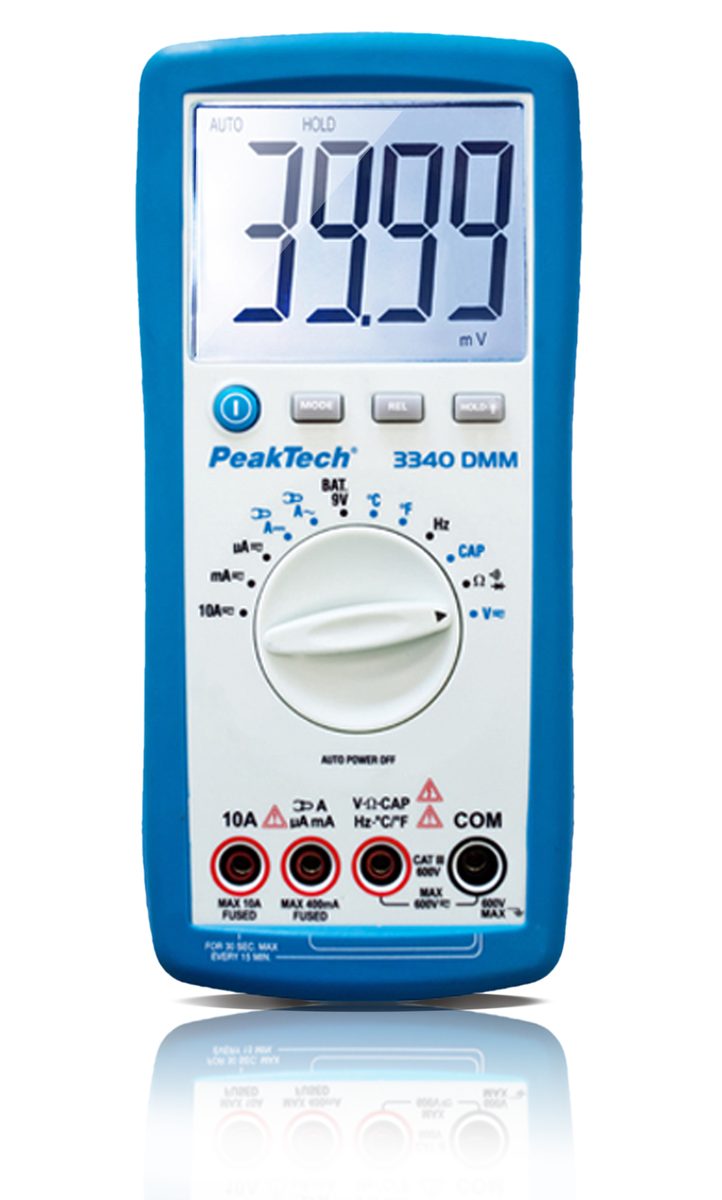

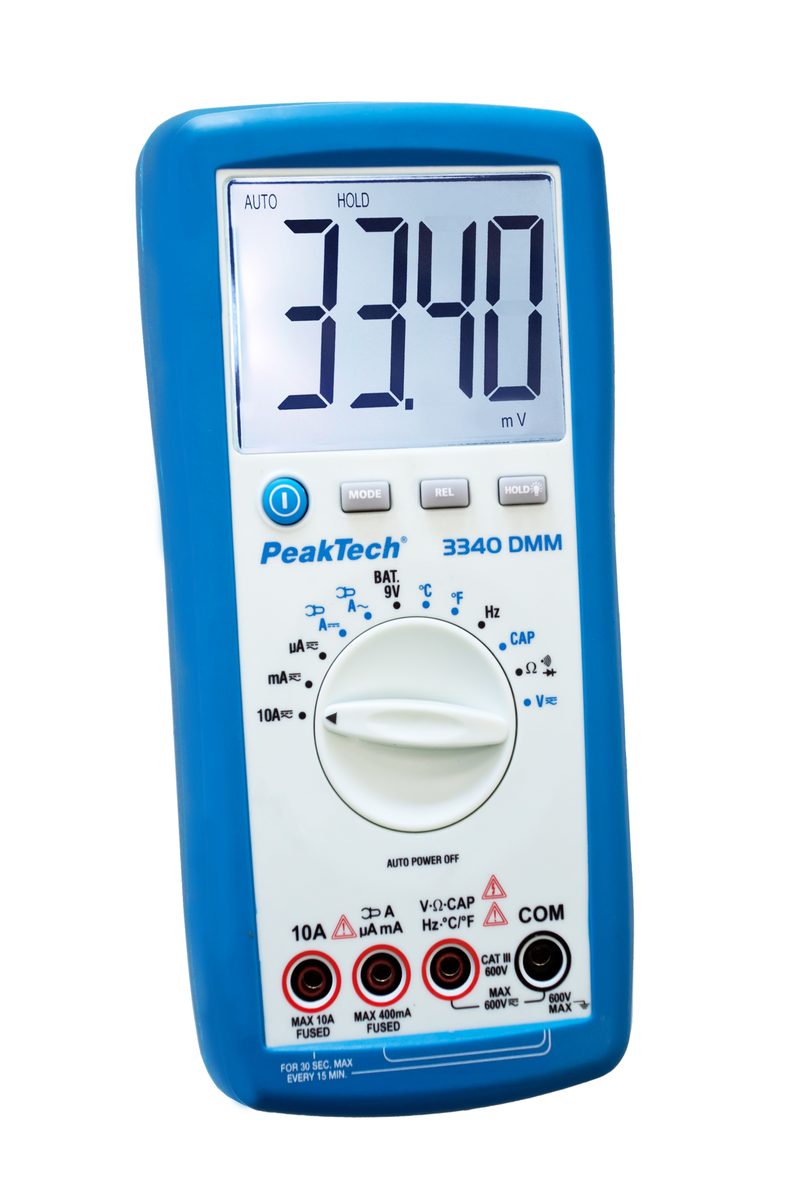

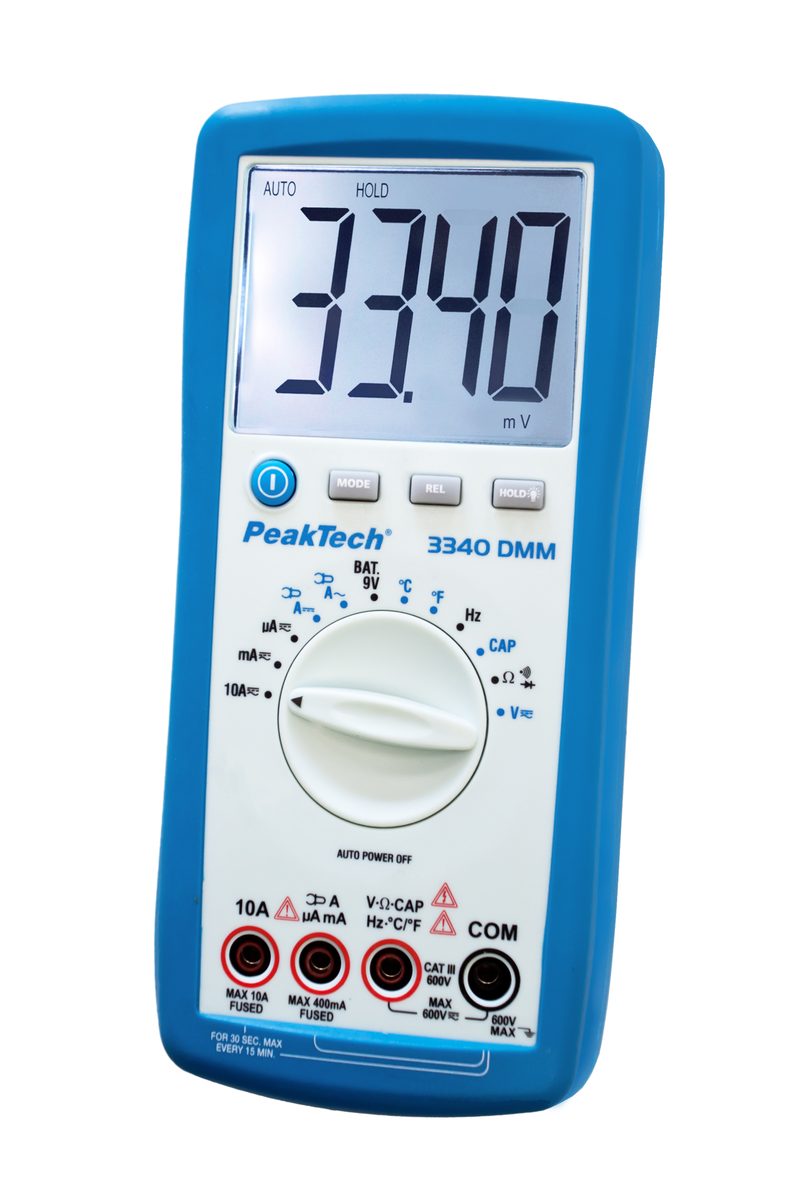

Digital multimeter, 4000 counts, 600 V AC/DC, P 3340
Digital multimeter with a large backlit LCD and automatic range selection: only the measurement function needs to be selected. Measures voltage, current, capacitance, frequency, temperature and resistance; includes audible continuity testing and diode testing.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 3340
- Basic Accuracy DC
- ± 0,5 %
- Capacitance max.
- 100 mF
- Display counts
- 4 000
- Display Type
- LCD
- OHM resolution min.
- 0,1 Ω
- Over voltage category
- CAT III 600 V
- Range selection
- Automatic
- V AC resolution min.
- 100 mV
- V DC Resolution min.
- 0,1 mV
- V DC max.
- 600 V
- A AC max.
- 10 A, 20 A
- Hz max.
- 5 MHz
- OHM max.
- 40 MΩ
- Temp. max.
- 760 °C
- Temp. min.
- -20 °C
- mA DC max.
- 400 mA
- mV DC max.
- 400 mV
- µA DC max.
- 4000 µA
- V AC max.
- 600 V
- A DC max.
- 10 A, 20 A
- mA AC max.
- 400 mA
- µA AC max.
- 4000 µA
from
€59.00
Variants & pricing
Digital multimeter, 4000 counts, 600 V AC/DC, P 3340
P 3340€59.00
