Power supplies & measuring instruments

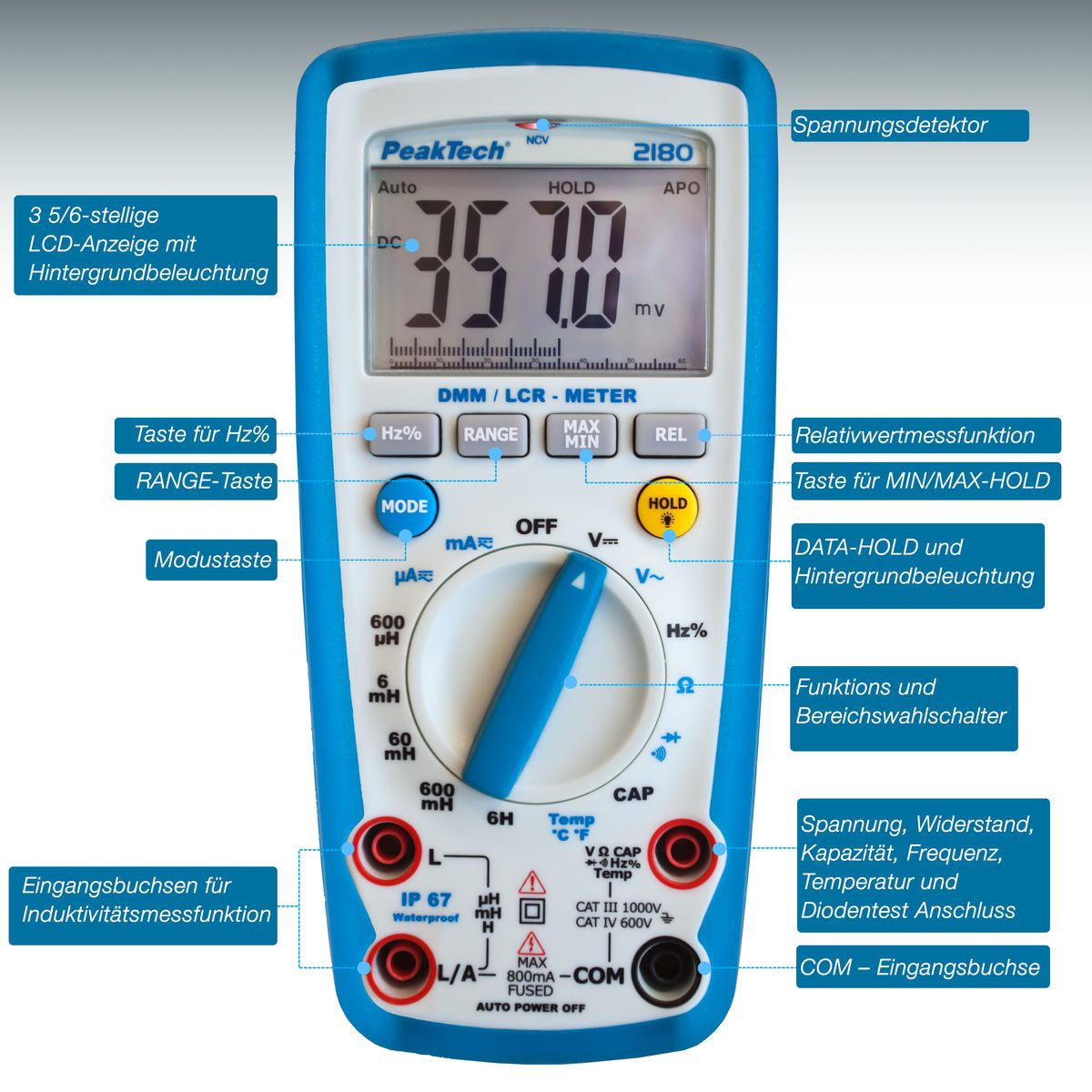

Digital multimeter with LCR meter, 6,000 counts, P 2180

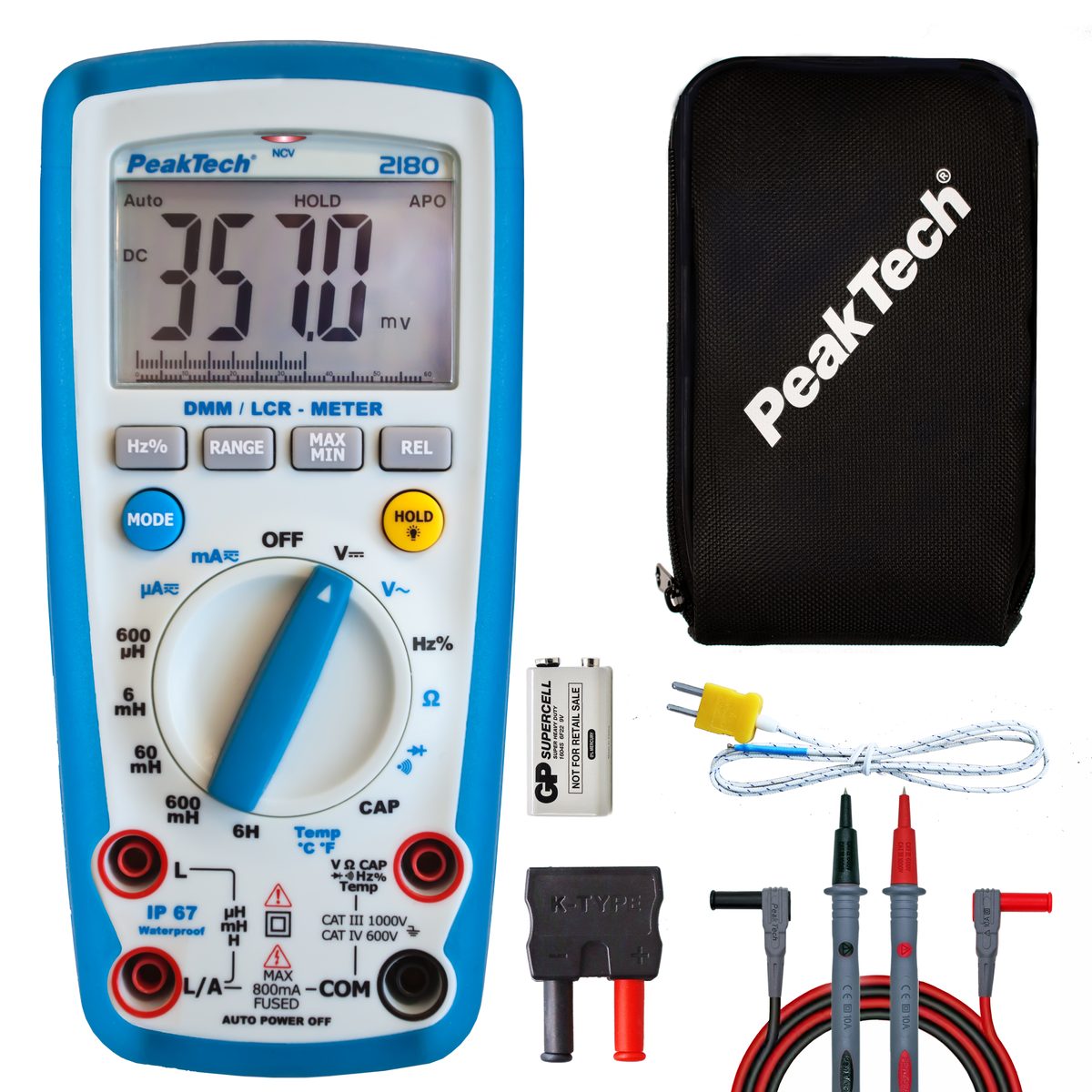

Combined digital handheld multimeter with LCR functions for service and maintenance. In addition to voltage, current and frequency, measures inductance, capacitance and resistance. The included Type K sensor enables temperature measurement.
P 2180 has IP67 protection against dust and water, including brief immersion, rain and splashes, for professional field use.
For service technicians and users in industry and construction.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 2180
- Basic Accuracy DC
- +/- 0,1%
- Capacitance max.
- 4000 µF
- Display counts
- 6.000
- Display Type
- LCD
- Inductance max.
- 6 H
- LCR functions
- C, L, R
- Over voltage category
- CAT III 1000 V, CAT IV 600 V
- Range selection
- Auto
- Test freq.
- Non-selectable
- V DC max.
- 1000V
- Hz max.
- 10 MHz
- OHM max.
- 60 MΩ
- Temp. max.
- 1000 °C
- Temp. min.
- -20 °C
- mA DC max.
- 600mA
- µA DC max.
- 600 µA
- V AC max.
- 1000V
- mA AC max.
- 600 mA
- µA AC max.
- 600 µA
from
€121.00
Variants & pricing
Digital multimeter with LCR meter, 6,000 counts, P 2180
P 2180€121.00
