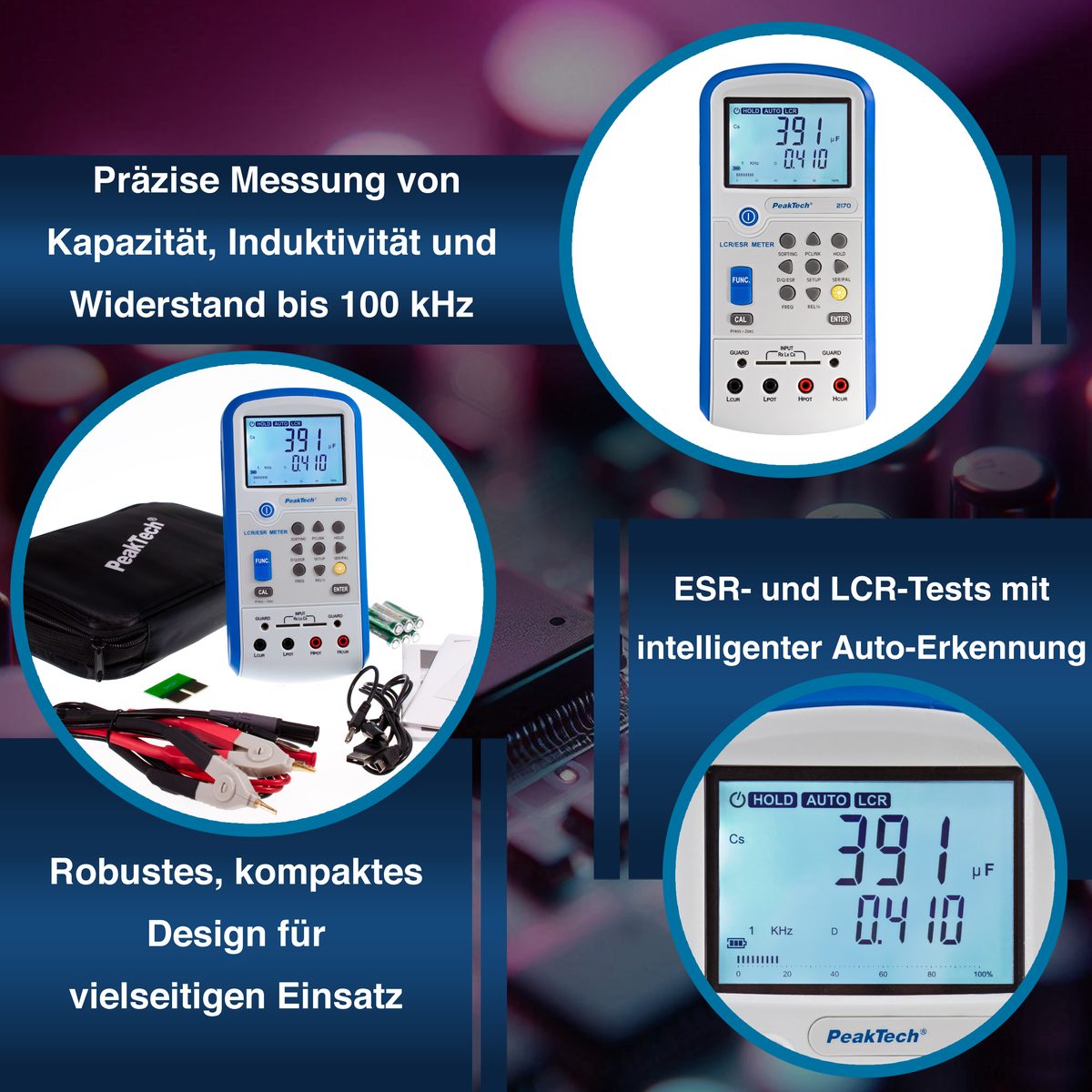

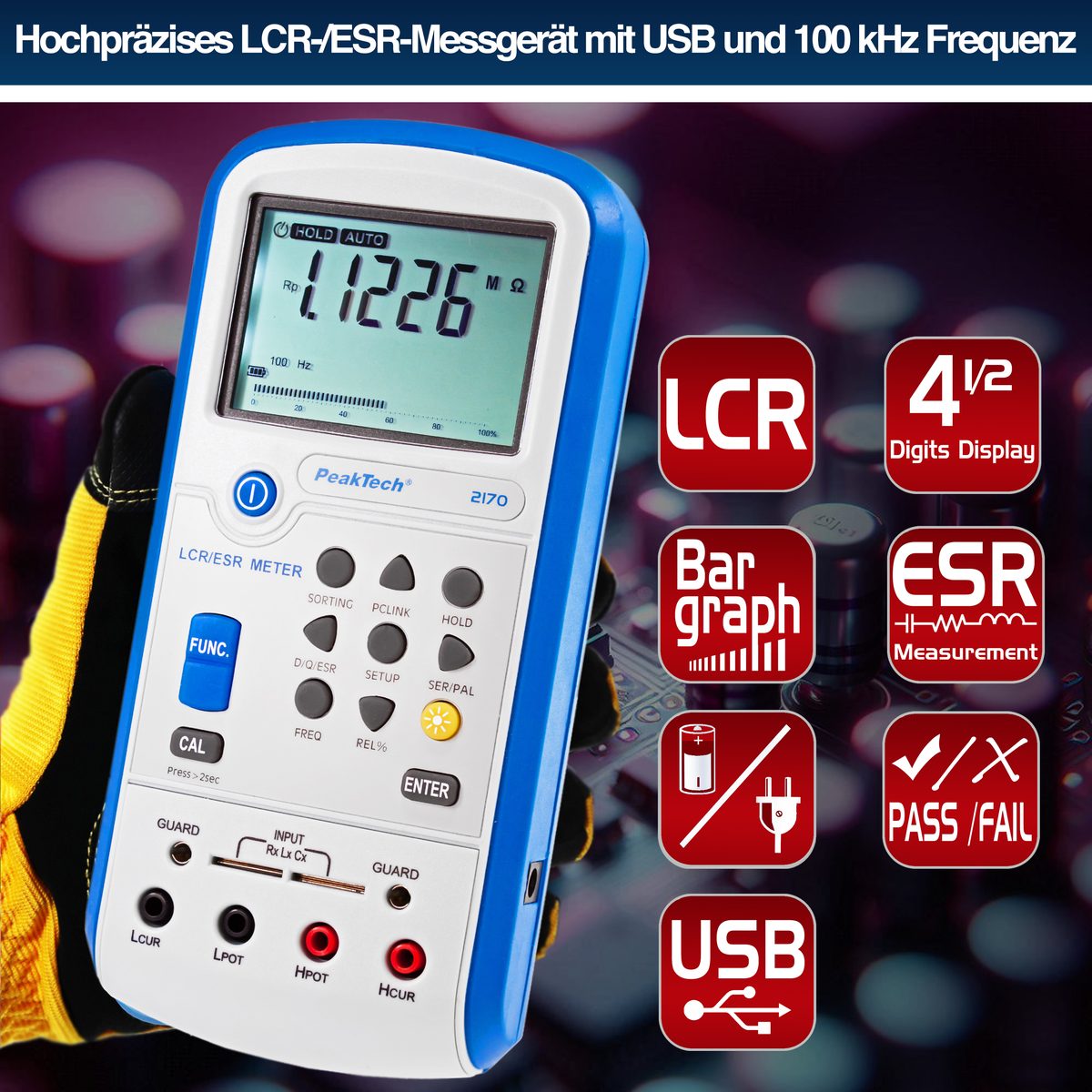

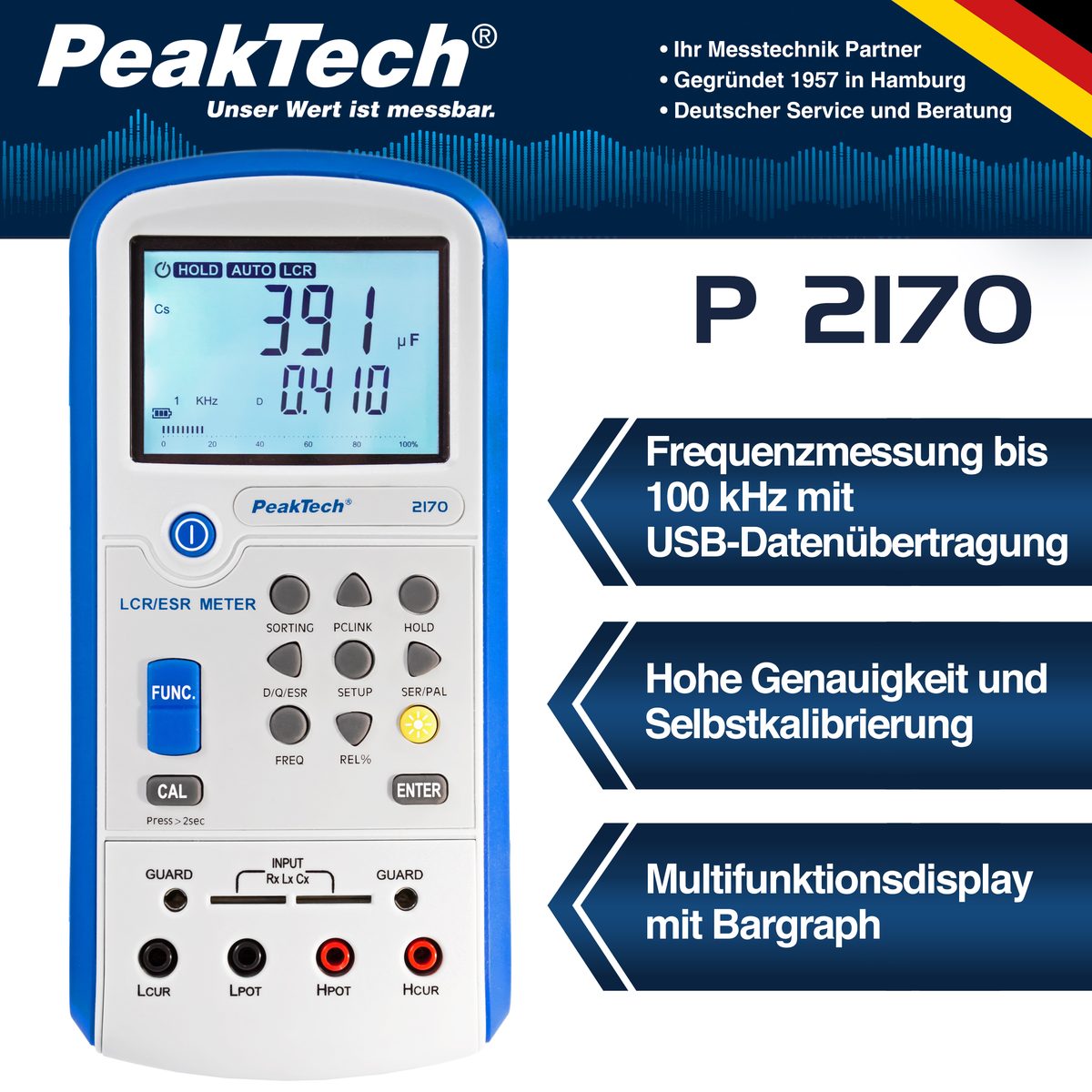

LCR-/ESR-Meter, 100 Hz - 100 kHz, with USB, P 2170
Digital LCR instrument with ESR (equivalent series resistance) measurement. Compact design for component testing at the workplace and service and maintenance tasks.

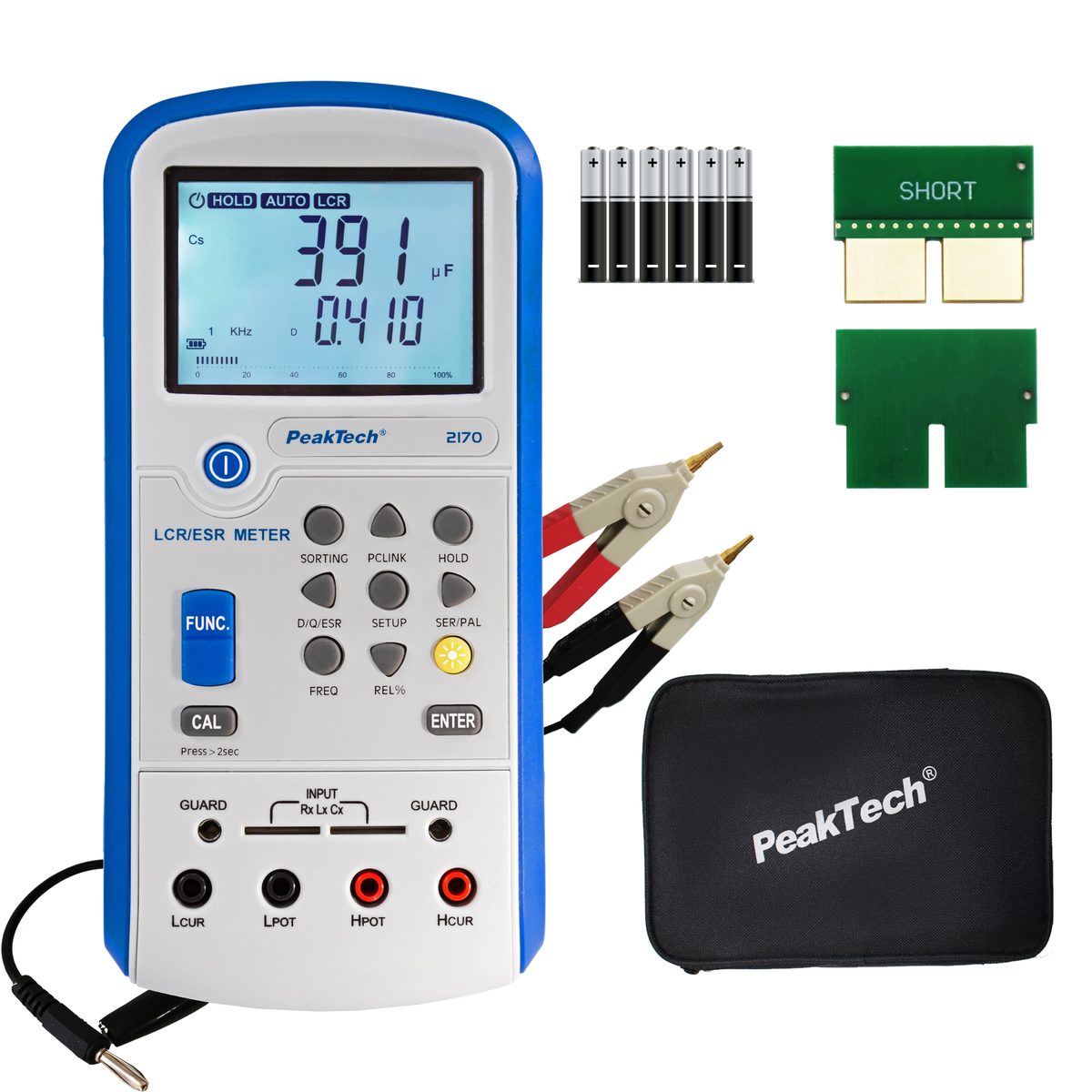

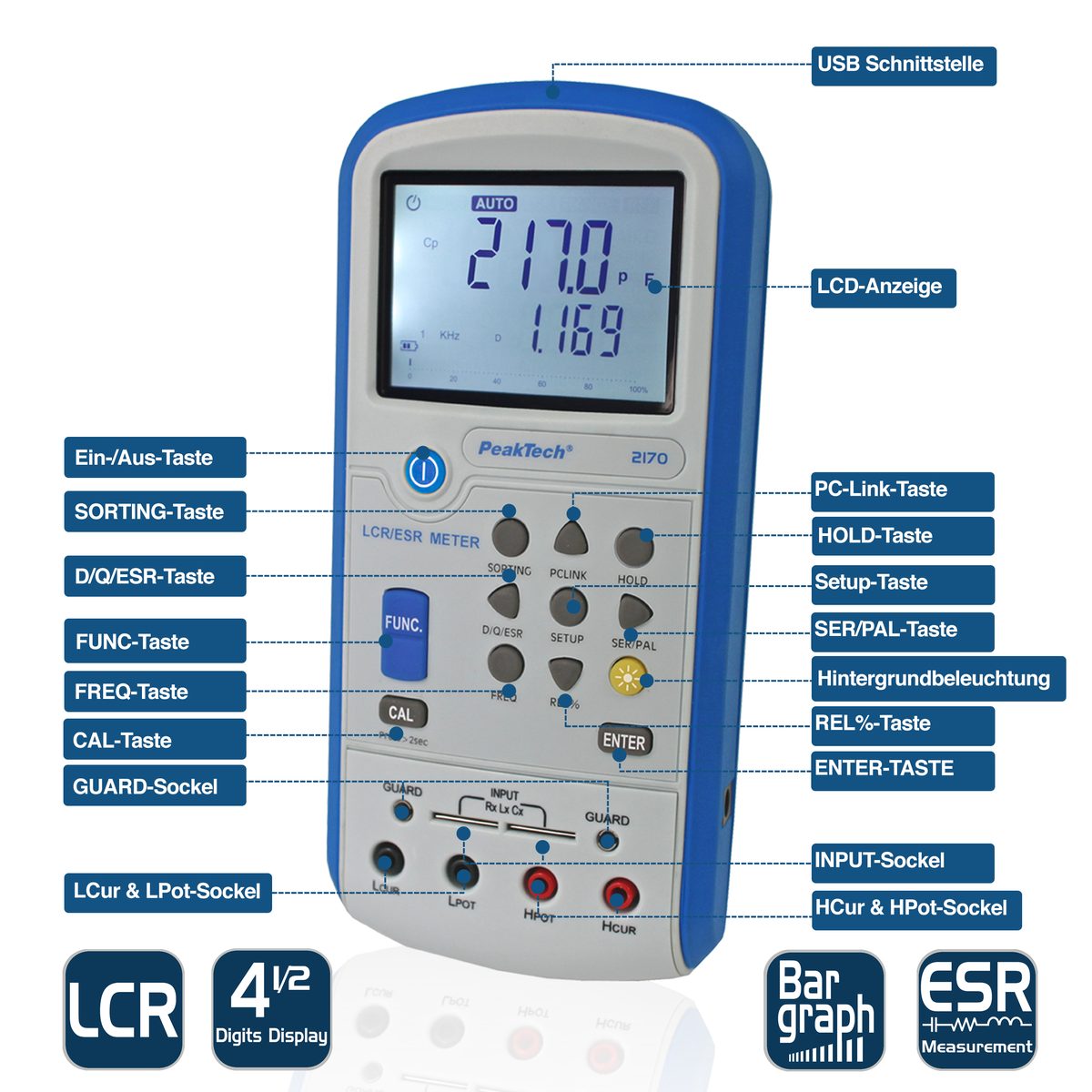

The backlit multifunction display with bar graph and measuring frequency up to 100 kHz support precise work. Components can be tested with the included Kelvin terminals (4-wire connection) or directly through the front-panel test sockets.
Included PC software records, saves and evaluates measurements.
Powered by the included batteries or a separately available power supply.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 2170
- USB
- Yes
- Capacitance max.
- 20 mF
- Display counts
- 20.000
- Display Type
- LCD
- Inductance max.
- 20 kH
- LCR functions
- C, Cp, Cs, D, DCR, ESR, L, Lp, Ls, Q, R, Rp, θ
- Range selection
- Auto
- Test freq.
- 1 kHz, 10 kHz, 100 Hz, 100 kHz, 120 Hz
- OHM max.
- 200 MΩ
from
€308.00
Variants & pricing
LCR-/ESR-Meter, 100 Hz - 100 kHz, with USB, P 2170
P 2170€308.00
