Power supplies & measuring instruments

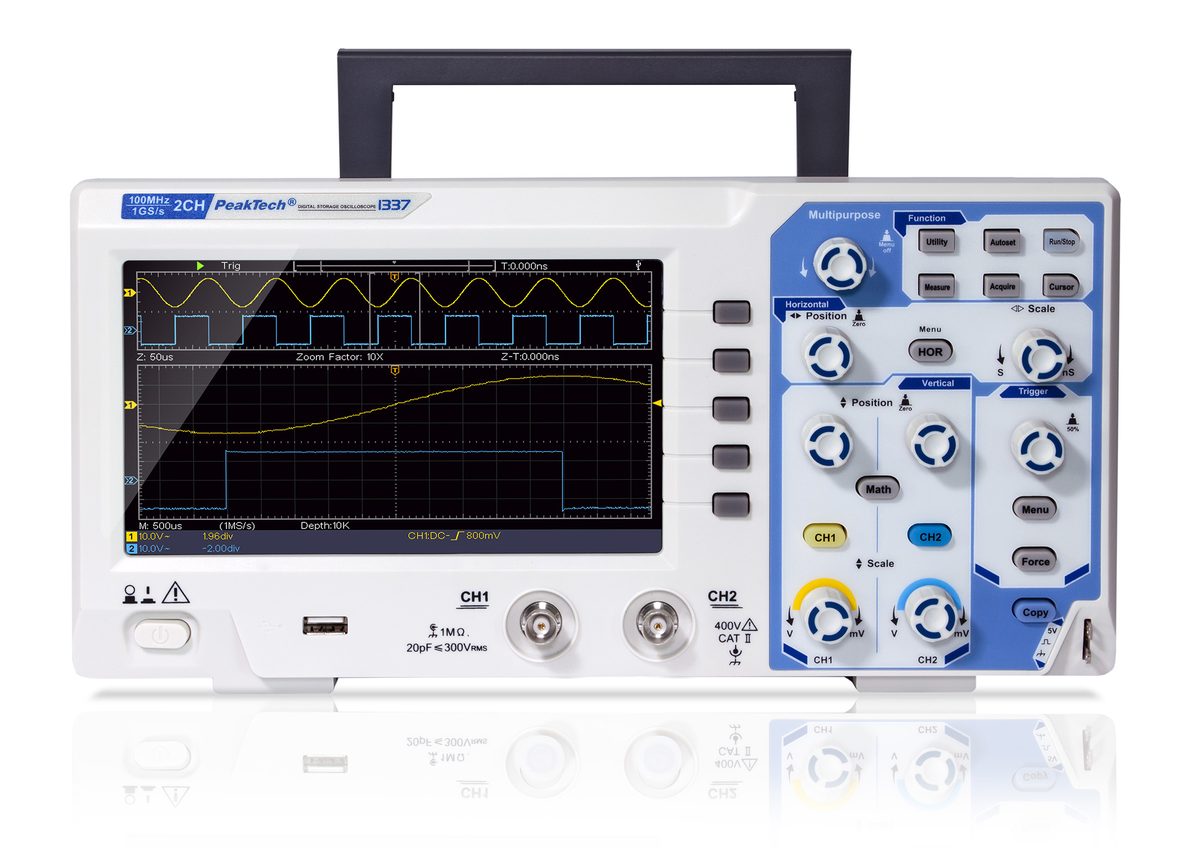

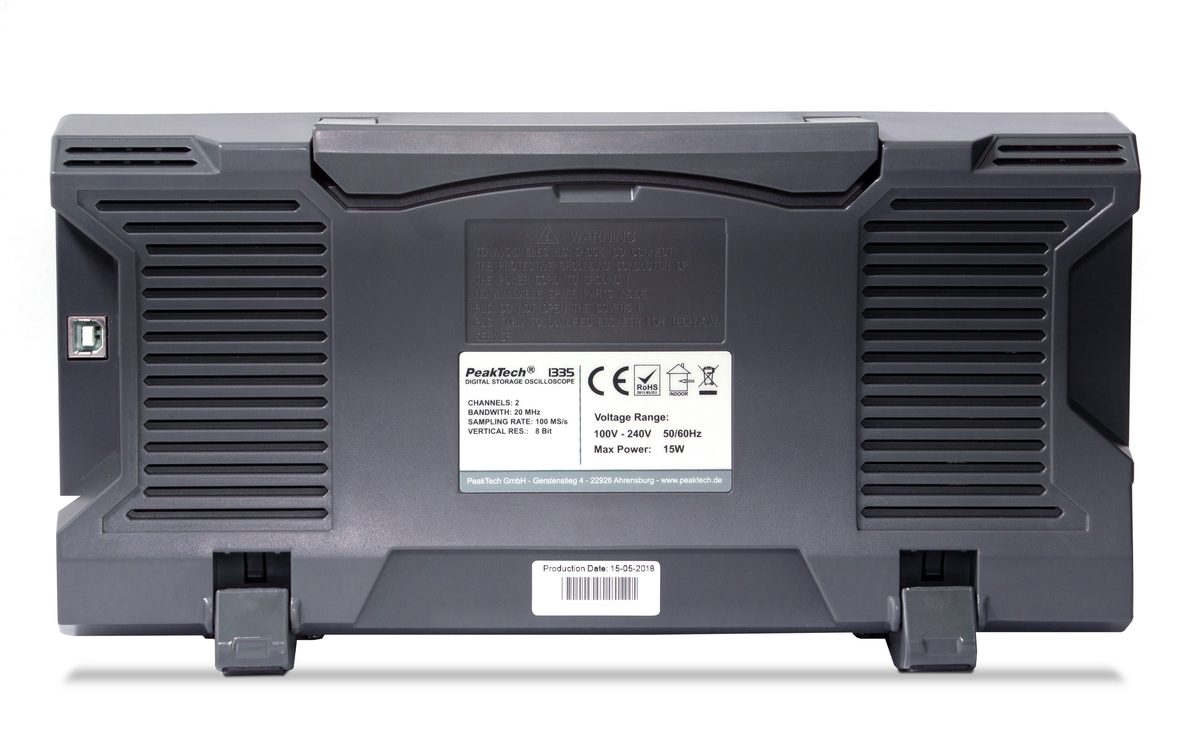

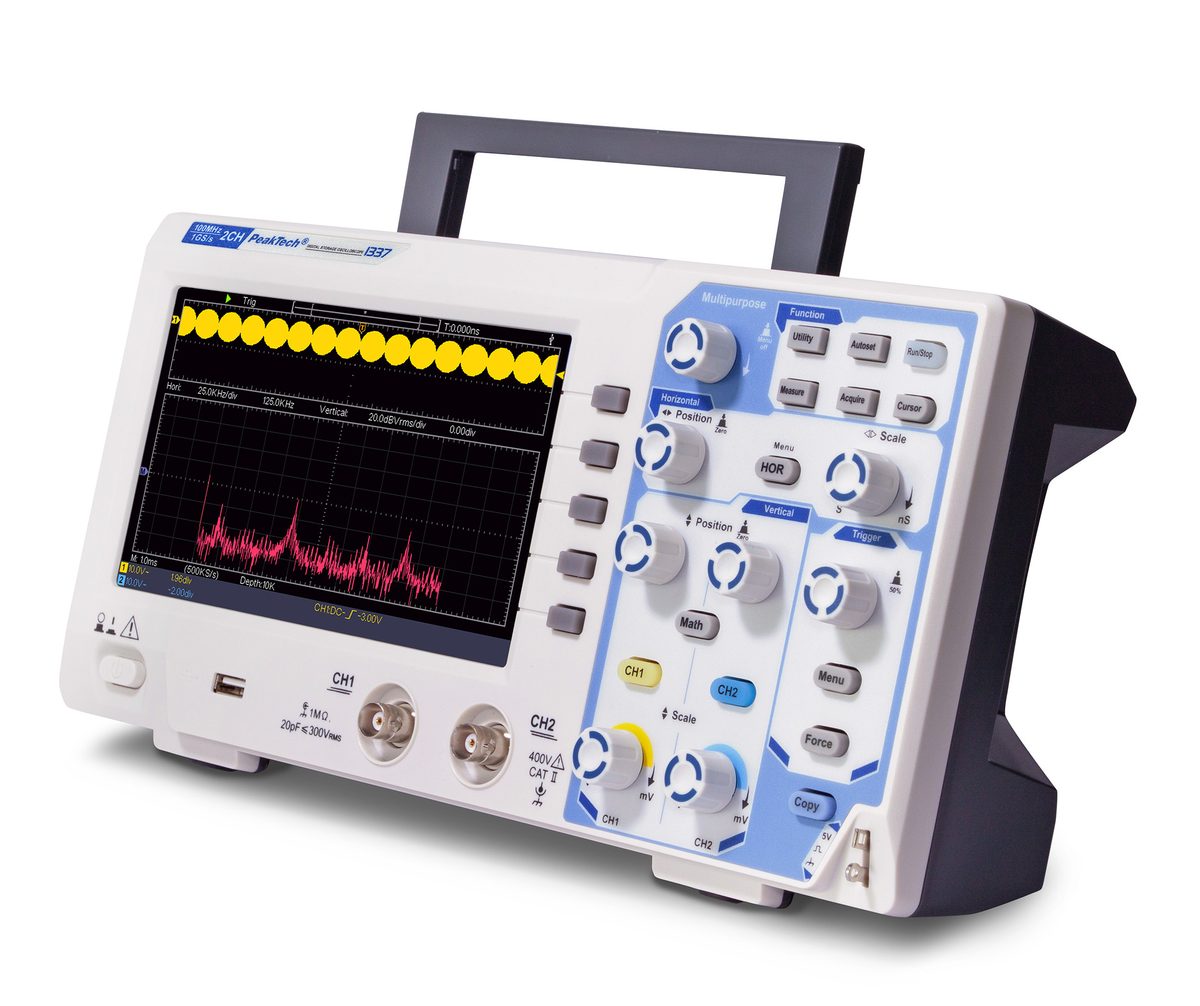

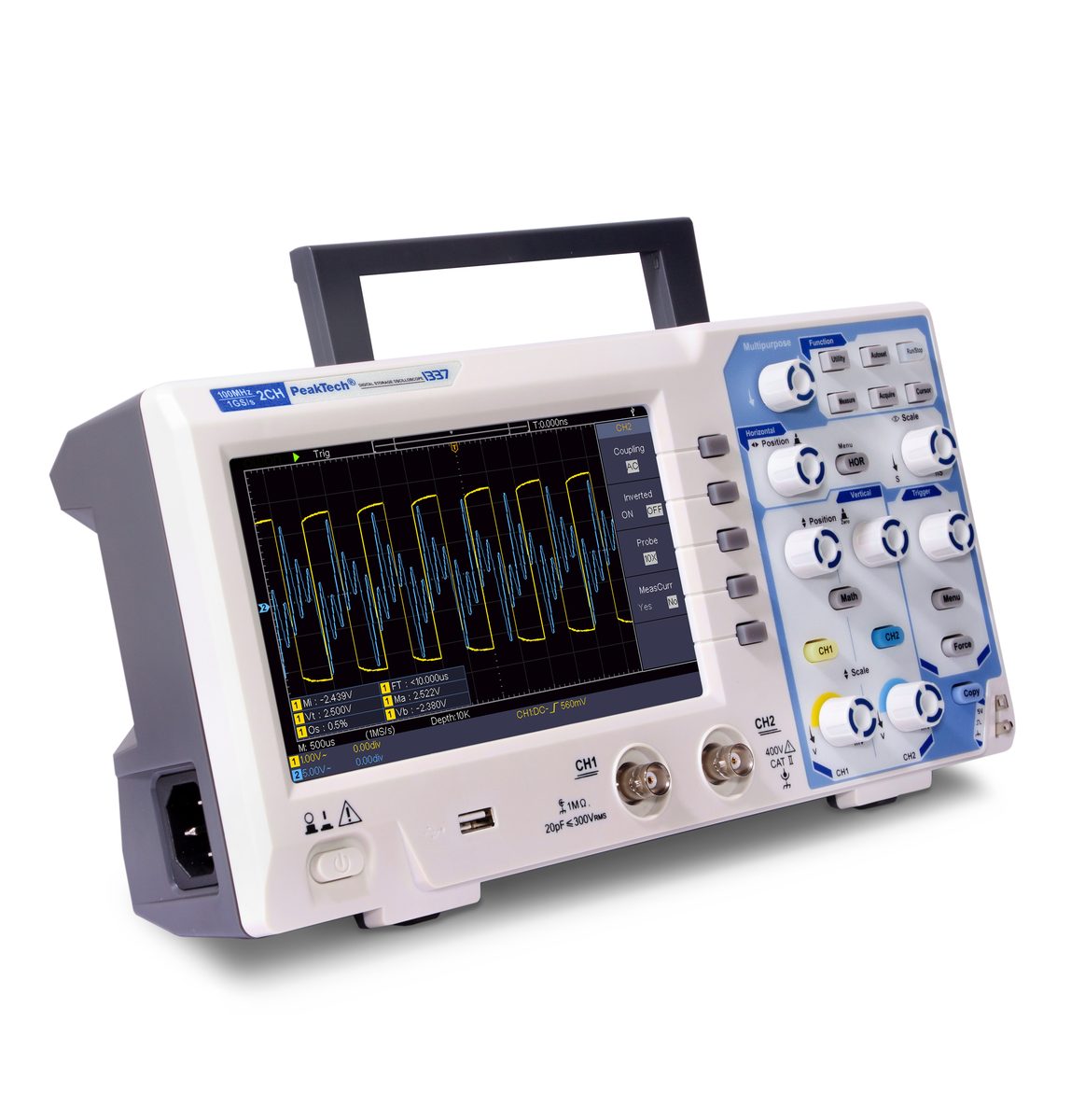

Digital storage oscilloscope, 100 MHz, 2 channels, 1 GS/s, P 1337
Two-channel digital storage oscilloscope with 100 MHz bandwidth, high-resolution colour TFT display and sampling up to 1 GS/s.
Autoset automatically finds a suitable display for the incoming waveform. Autoscale adjusts the time-base scaling.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1337
- Sampling 1 CH
- 1 GS/s
- Sampling 2 CH
- 500 MS/s
- USB
- Yes
- Bandwidth
- 100 MHz
- Channels
- 2 channels
- Display Type
- Colour TFT
- Hor. scale max.
- 1000 s/div
- Hor. scale min.
- 5 ns/div
- Mains voltage
- 110/240 V AC; 50/60 Hz
- Memory depth
- 10 000 points
- Resolution
- 800 × 480 pixels
- Rise Time
- < 3.5 ns
- Screen size (TFT)
- 17,5 cm (7")
- Vert. resolution
- 8 bit
- Vert. scale max.
- 5 V/div
- Vert. scale min.
- 5 mV/div
from
€517.00
Variants & pricing
Digital storage oscilloscope, 100 MHz, 2 channels, 1 GS/s, P 1337
P 1337€517.00
