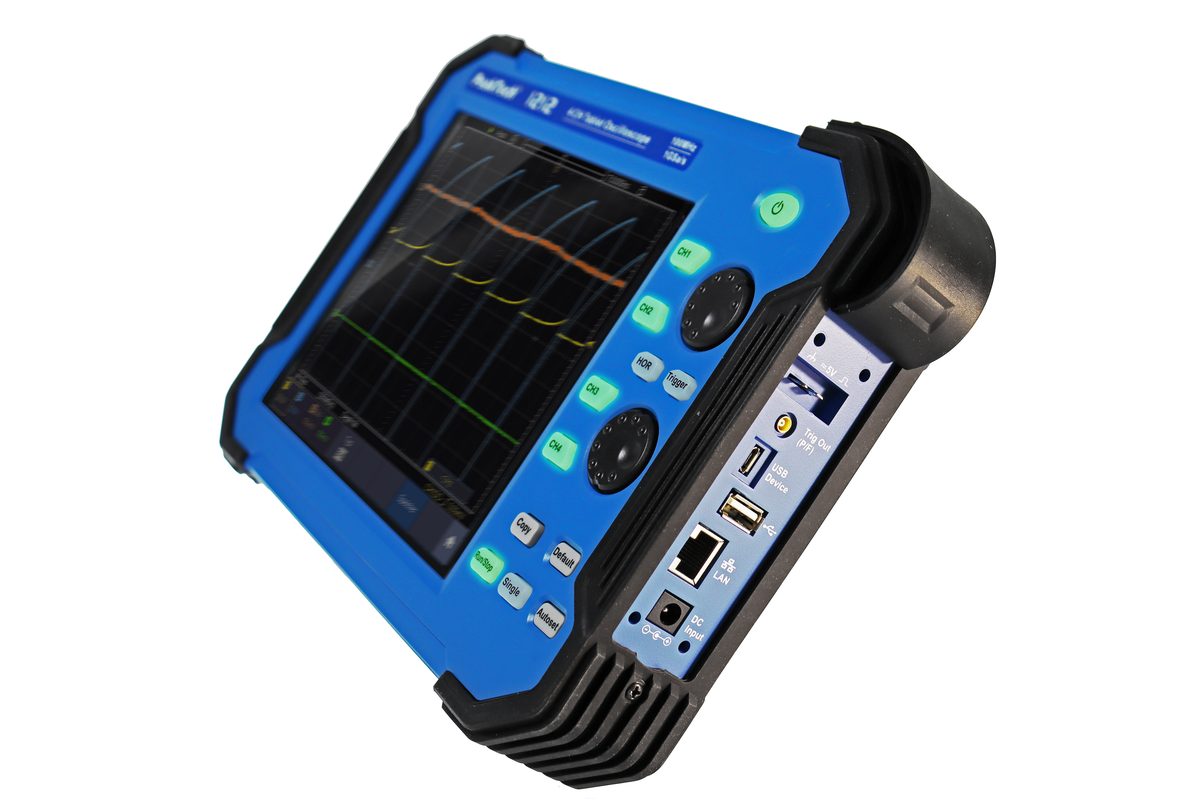

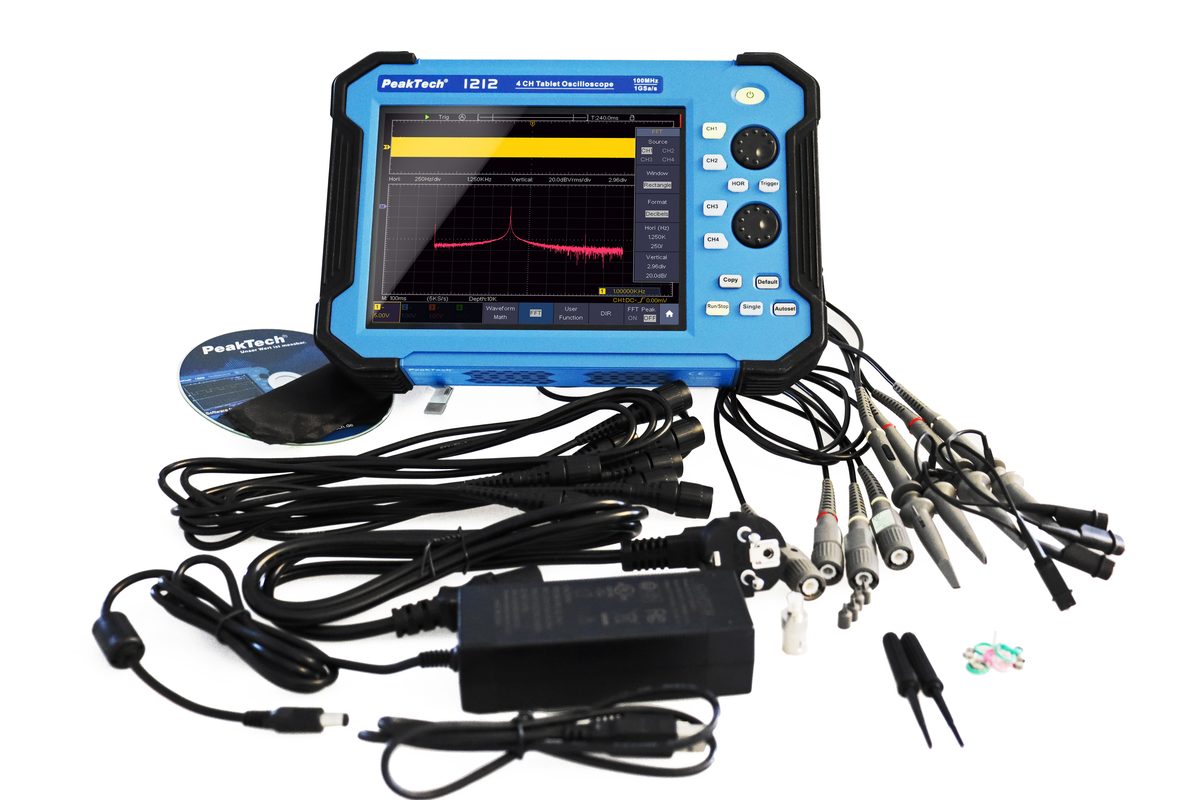

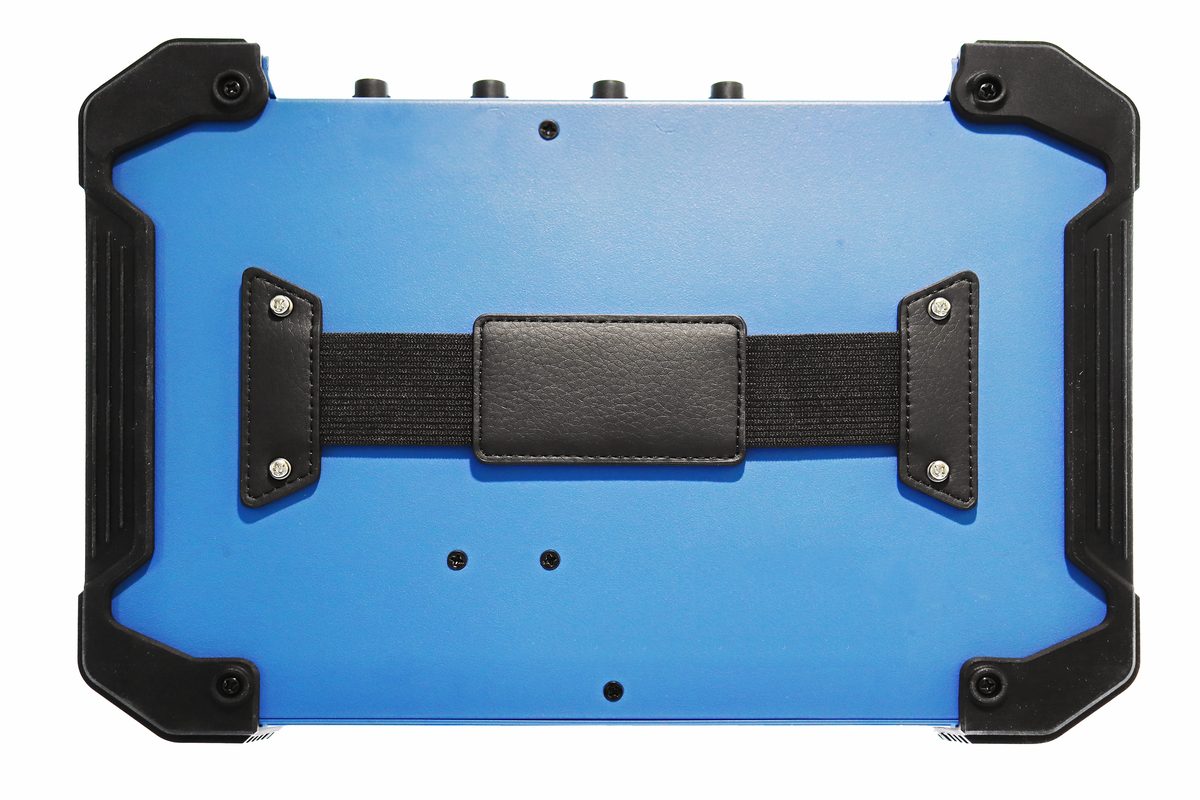

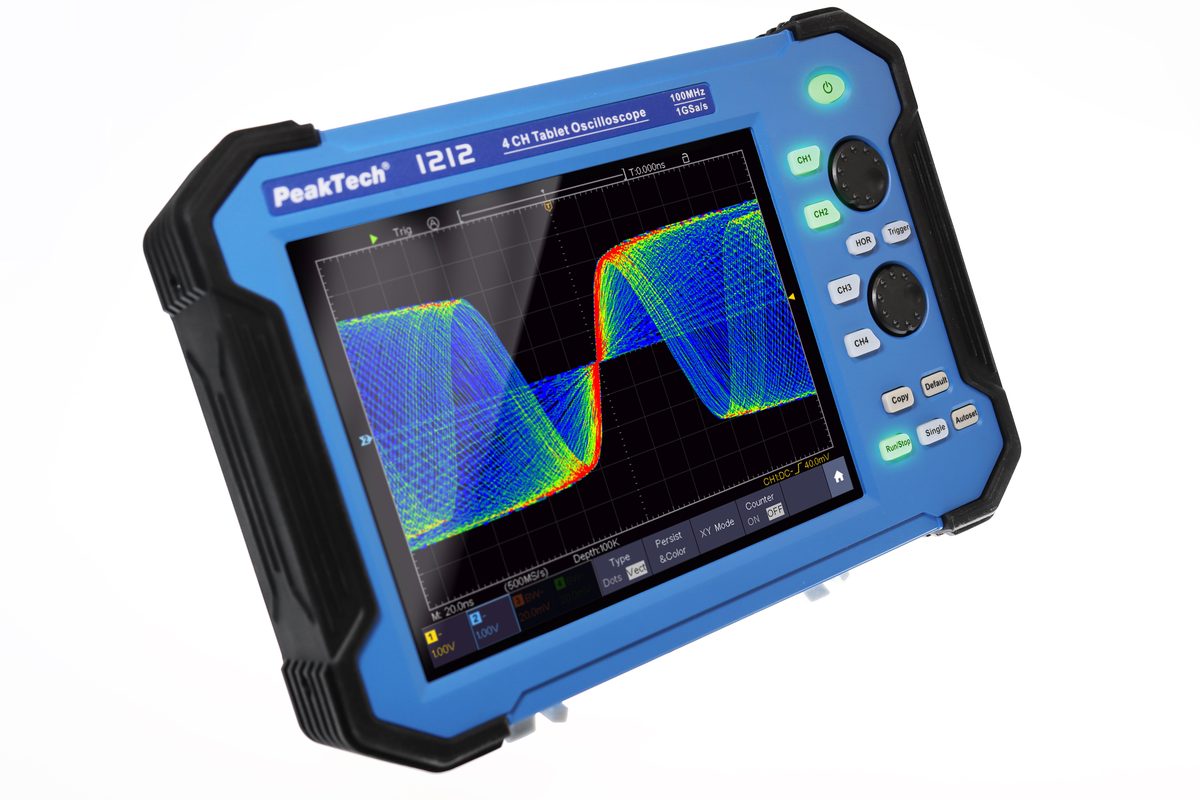

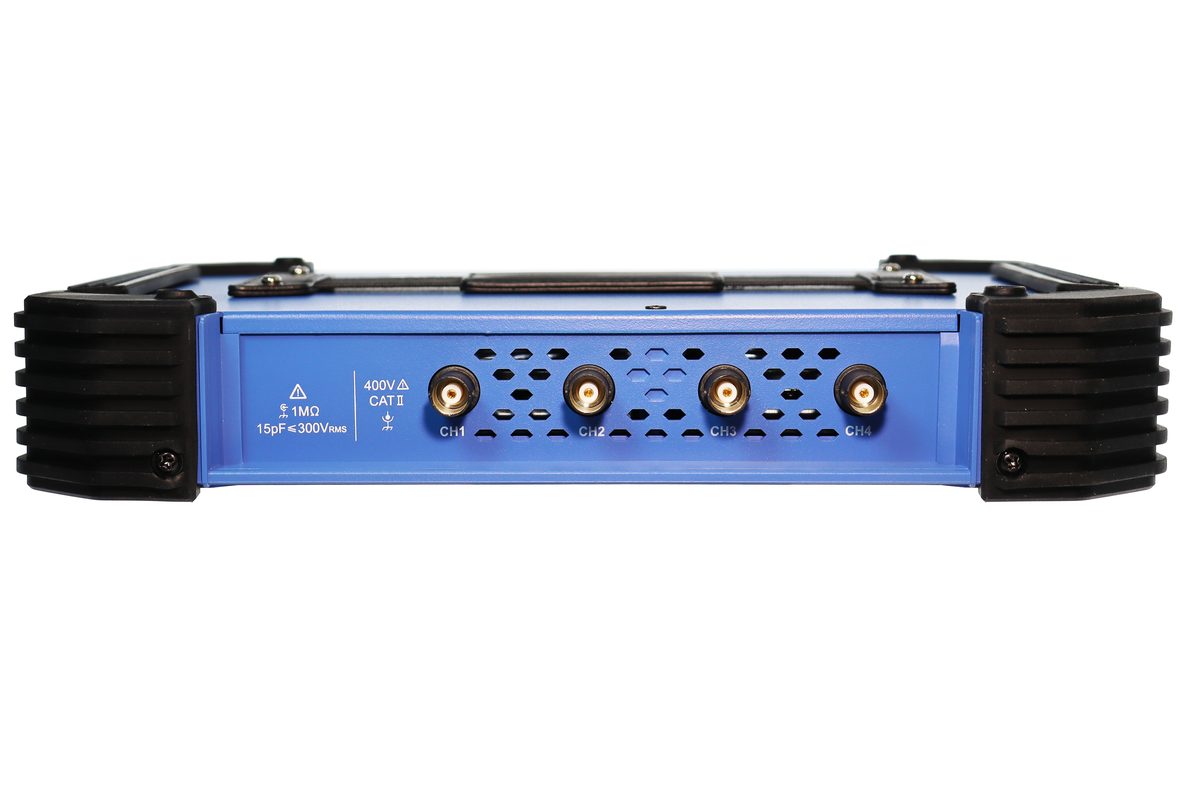

Tablet oscilloscope, 100 MHz, 4 channels, 1 GS/s, P 1212
Tablet-format oscilloscope with the measurement capabilities of a stationary instrument. Four channels, 100 MHz bandwidth and sampling up to 1 GS/s. Settings are controlled using the 8-inch touchscreen or function keys; menu navigation supports signal analysis on systems and devices.
Portable design for a wide range of electrical engineering applications.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1212
- Sampling 1 CH
- 1 GS/s
- Sampling 2 CH
- 500 MS/s
- Sampling 4 CH
- 250 MS/s
- USB
- Yes
- Bandwidth
- 100 MHz
- Battery
- Li-Ion 7,4 V 8000 mAh
- Channels
- 4 channels
- Display Type
- TFT touchscreen
- Hor. scale max.
- 1000 s/div
- Hor. scale min.
- 2 ns/div
- LAN
- Yes
- Mains voltage
- 110/240 V AC; 50/60 Hz
- Memory depth
- 40 000 000 points
- Resolution
- 800 × 600 pixels
- Rise Time
- < 3.5 ns
- Screen size (TFT)
- 20 cm (8")
- Vert. resolution
- 8 bit
- Vert. scale max.
- 10 V/div
- Vert. scale min.
- 1 mV/div
- Integr. DMM
- Yes
from
€990.00
Variants & pricing
Tablet oscilloscope, 100 MHz, 4 channels, 1 GS/s, P 1212
P 1212€990.00
Related products
Digital storage oscilloscope, 10 MHz, 2 channels, 100 MS/s, P 1401
Sampling 1 CH: 100 MS/s · Sampling 2 CH: 100 MS/s
from€193.00
Handheld oscilloscope, 100 MHz, 2 channels, 1 GS/s, P 1195
Sampling 1 CH: 1 GS/s · Sampling 2 CH: 500 MS/s
from€1,100.00
Touchscreen oscilloscope, 100 MHz, 2 channels, 1 GS/s, P 1360
Sampling 1 CH: 1 GS/s · Sampling 2 CH: 500 MS/s
from€1,518.00

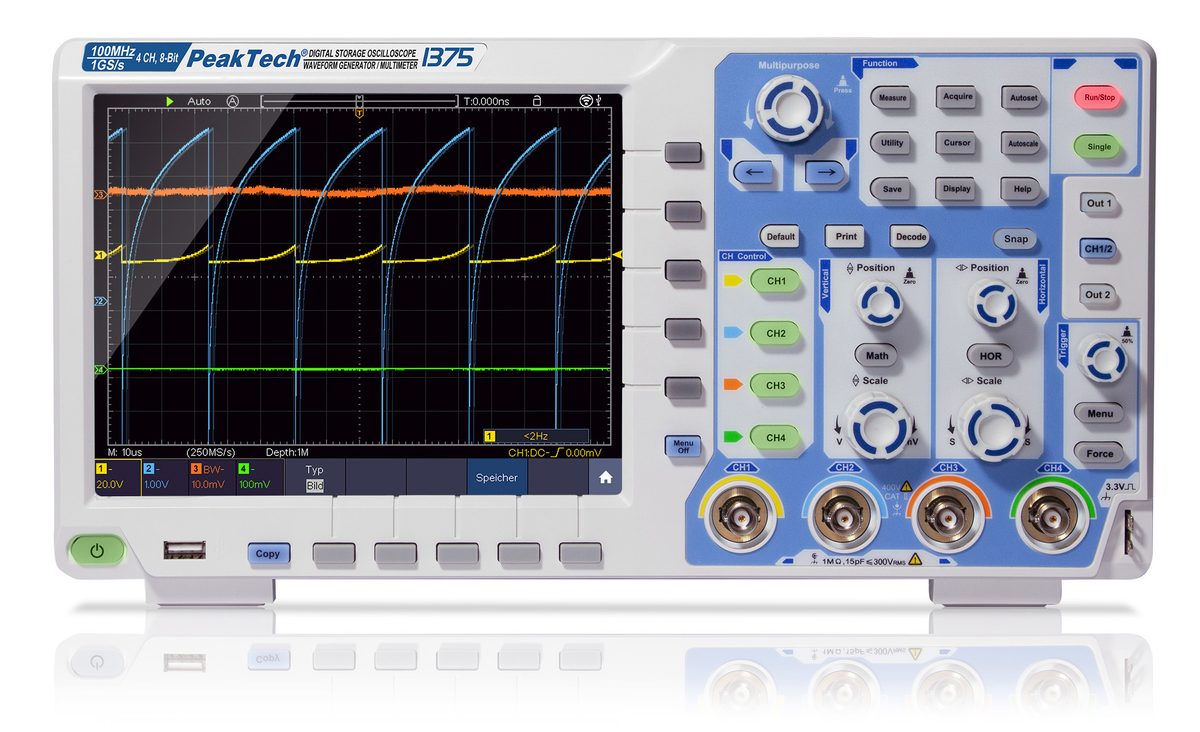

Touchscreen oscilloscope, 100 MHz, 4 channels, 1 GS/s, P 1375
