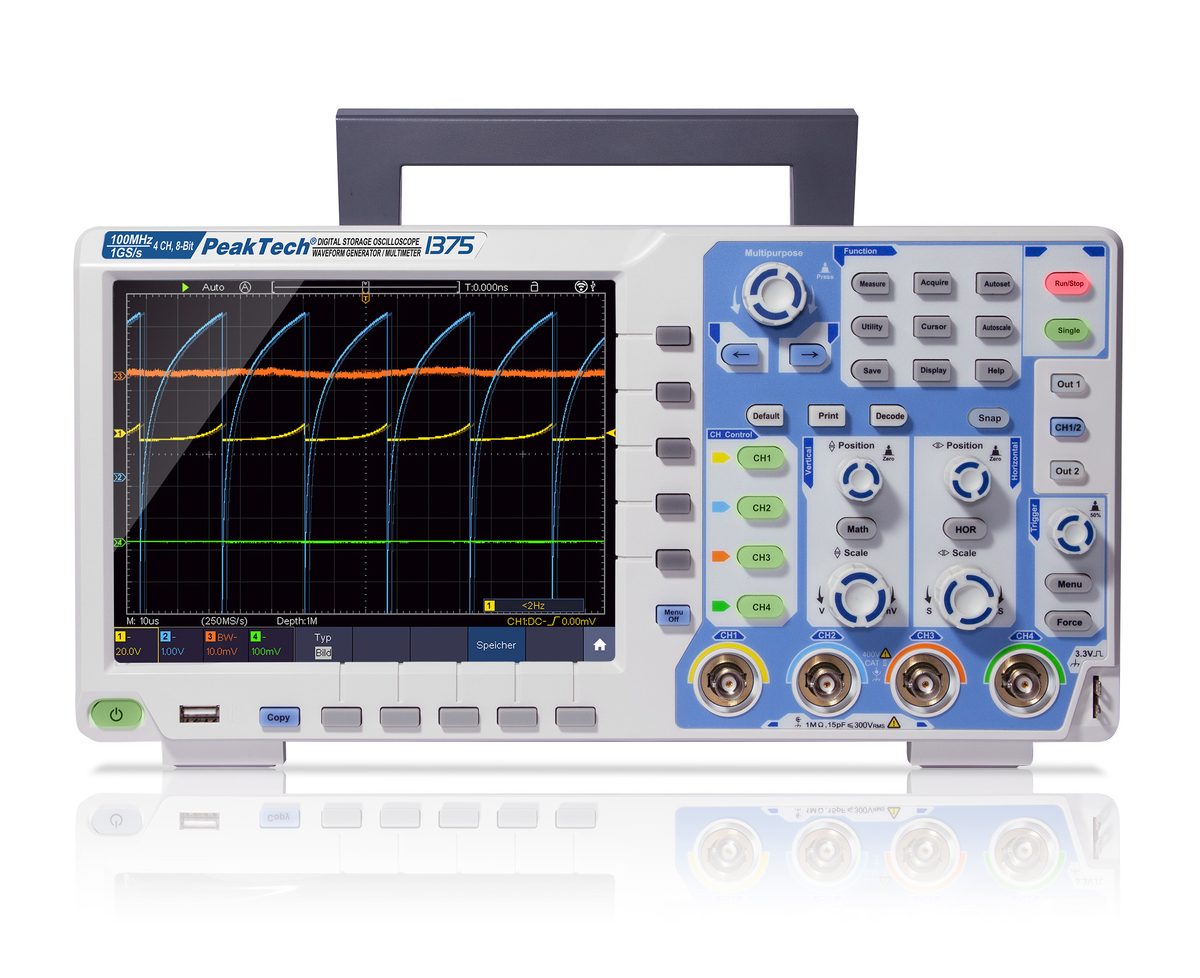

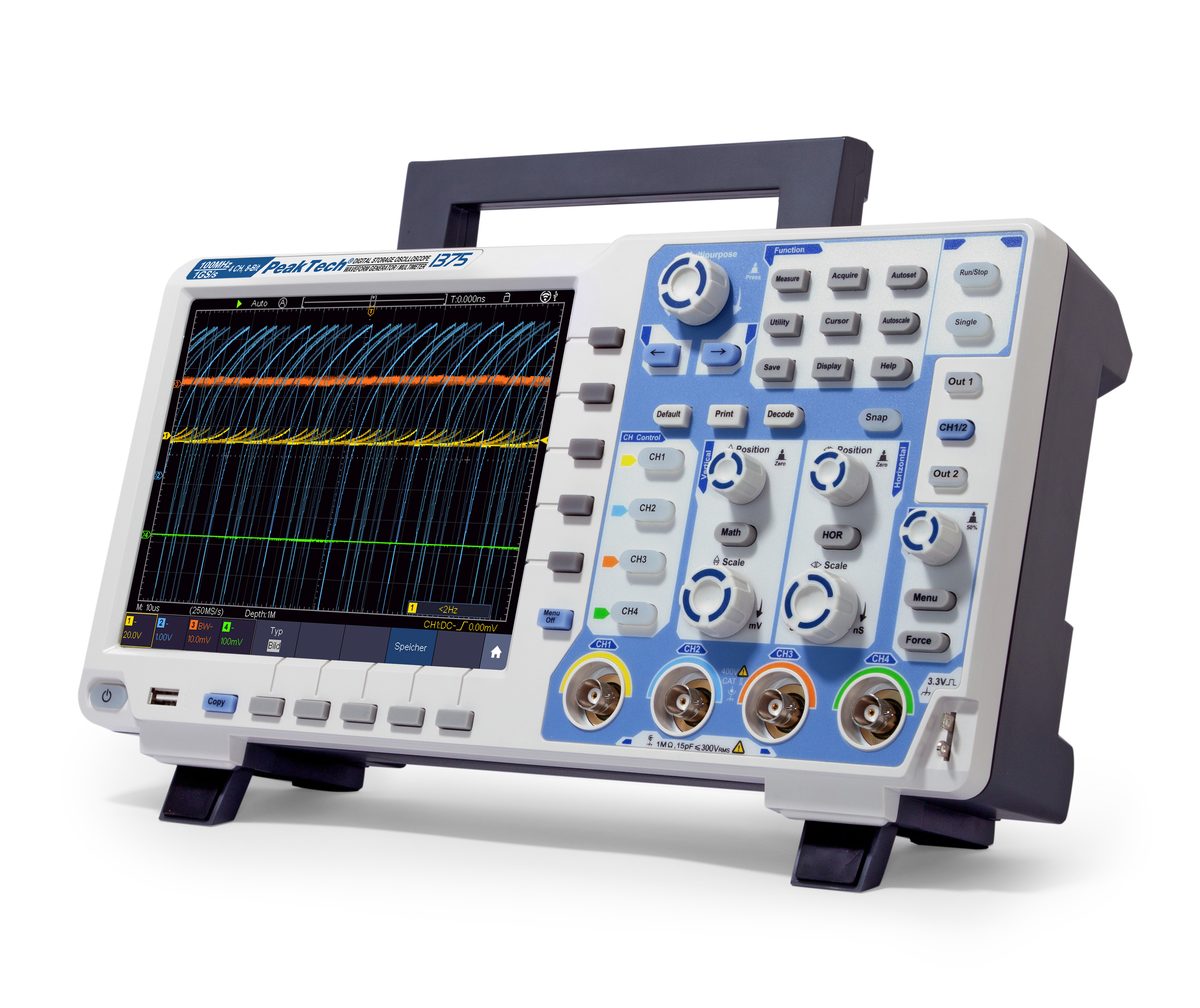

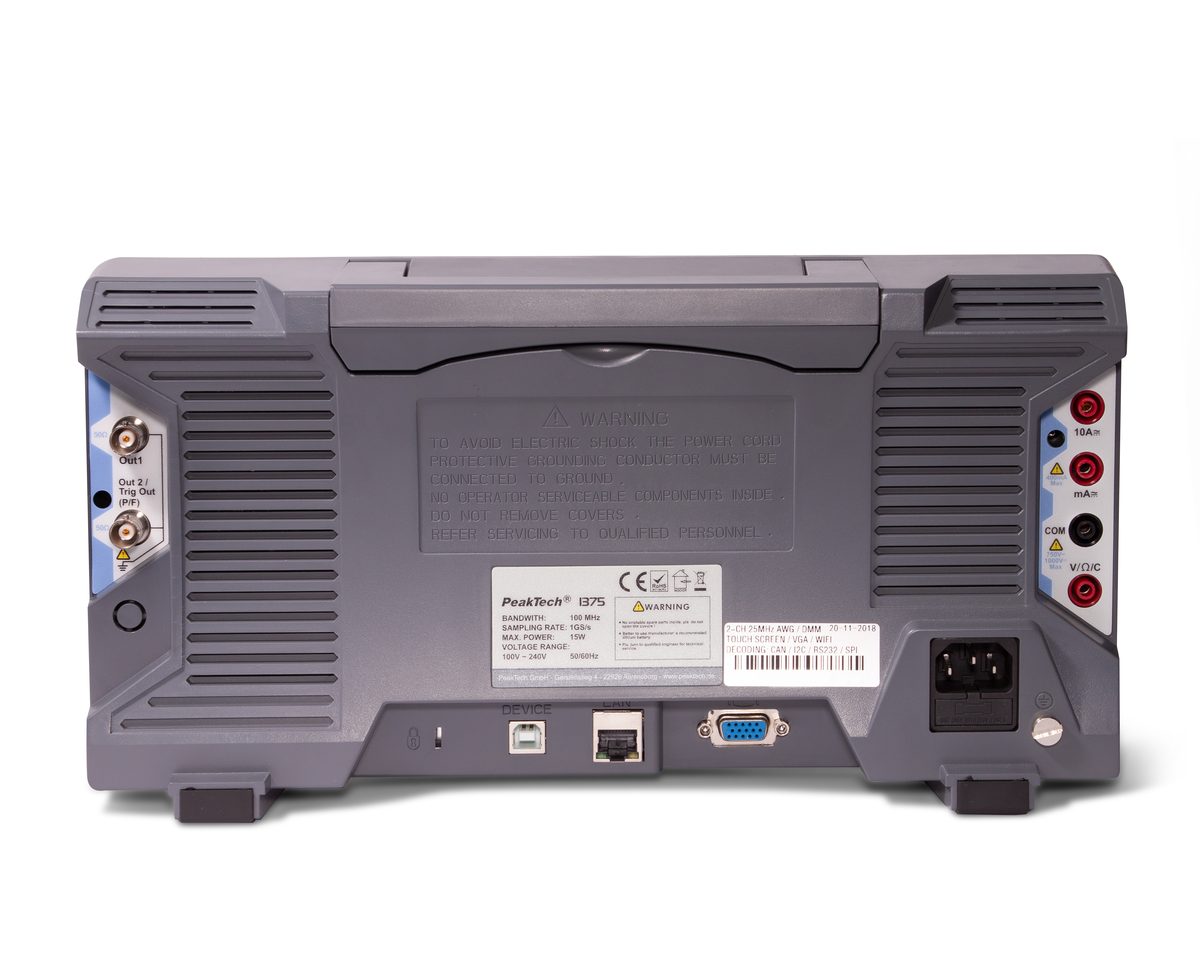

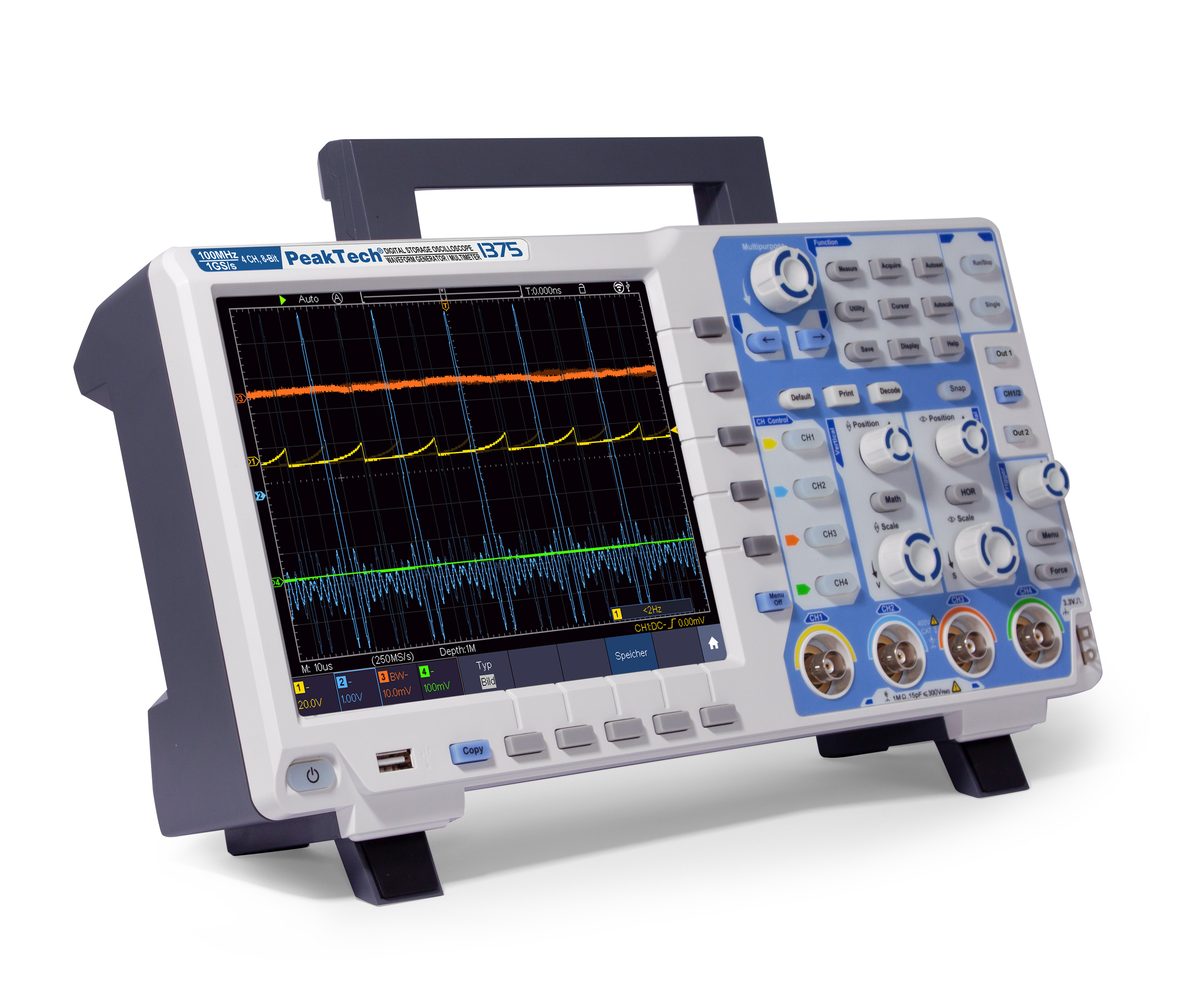

Touchscreen oscilloscope, 100 MHz, 4 channels, 1 GS/s, P 1375
Four-channel digital storage oscilloscope with 100 MHz bandwidth, high-resolution TFT touchscreen and sampling up to 1 GS/s. Controlled via function keys, rotary controls or touchscreen. Includes a two-channel 25 MHz arbitrary waveform generator and a 4000-count multimeter for voltage, current and resistance measurements, forming a mobile workstation for laboratories, service and industry. Integrated CAN bus, RS-232, I2C and SPI decoders support bus signal analysis.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1375
- Sampling 1 CH
- 1 GS/s
- Sampling 2 CH
- 500 MS/s
- Sampling 4 CH
- 250 MS/s
- USB
- Yes
- Bandwidth
- 100 MHz
- Battery
- Li-Po 13200 mAh (optional)
- Channels
- 4 channels
- Display Type
- TFT touchscreen
- Hor. scale max.
- 1000 s/div
- Hor. scale min.
- 1 ns/div
- LAN
- Yes
- Mains voltage
- 110/240 V AC; 50/60 Hz
- Memory depth
- 40 000 000 points
- Resolution
- 800 × 600 pixels
- Rise Time
- < 1.7 ns
- Screen size (TFT)
- 20 cm (8")
- VGA
- Yes
- Vert. resolution
- 8 bit
- Vert. scale max.
- 10 V/div
- Vert. scale min.
- 2 mV/div
- WiFi
- Yes
- Integr. AWG
- Yes
- Integr. DMM
- Yes
from
€1,430.00
Variants & pricing
Touchscreen oscilloscope, 100 MHz, 4 channels, 1 GS/s, P 1375
P 1375€1,430.00
