Power supplies & measuring instruments

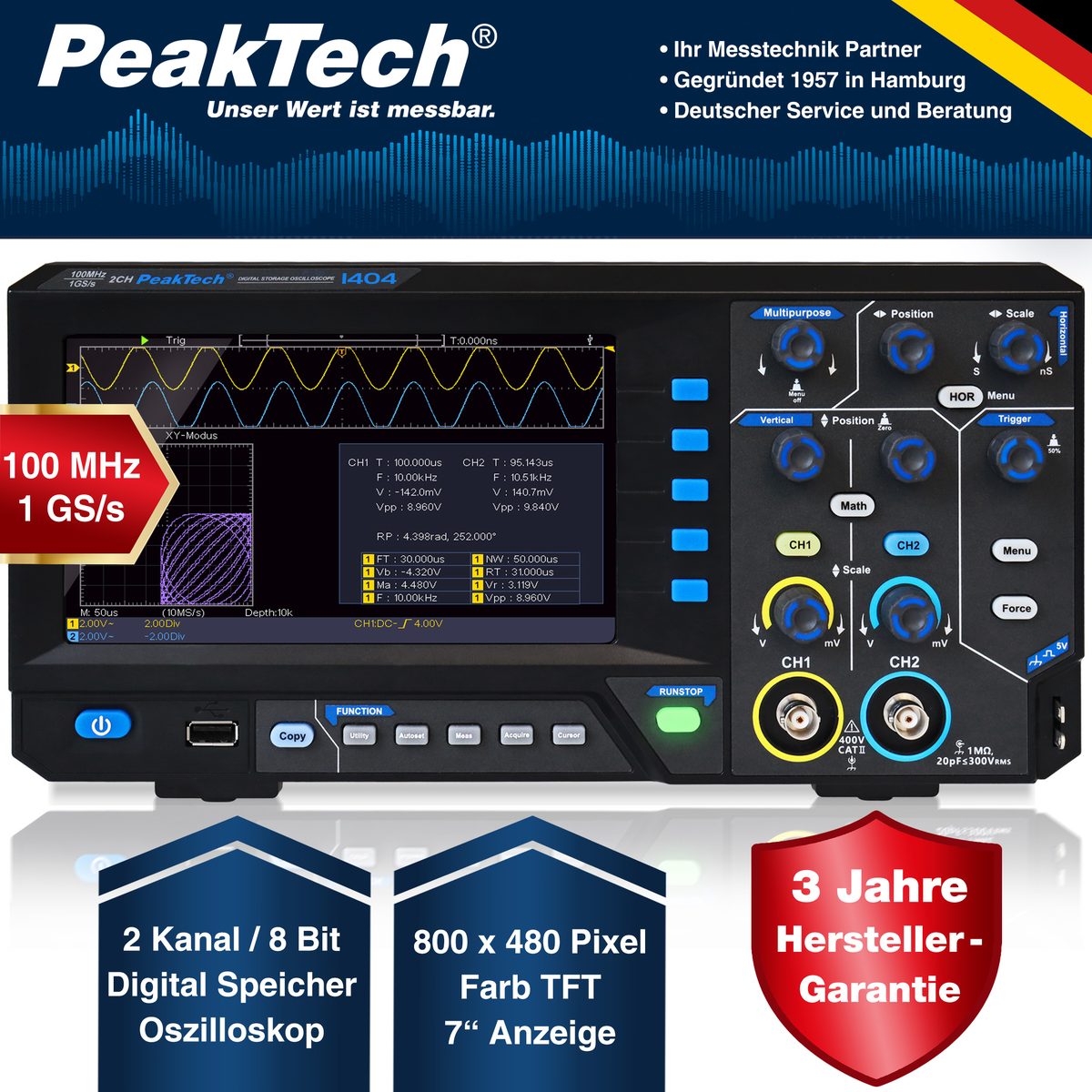

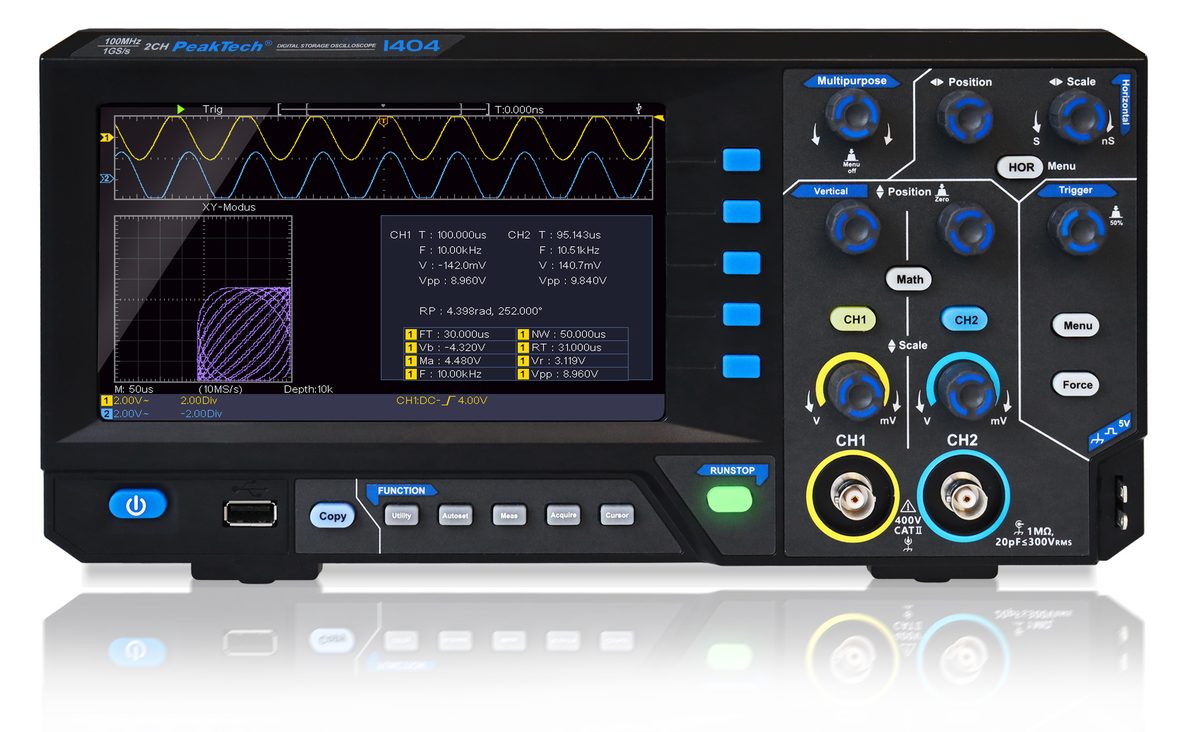

Digital storage oscilloscope, 100 MHz, 2 channels, 1 GS/s, P 1404

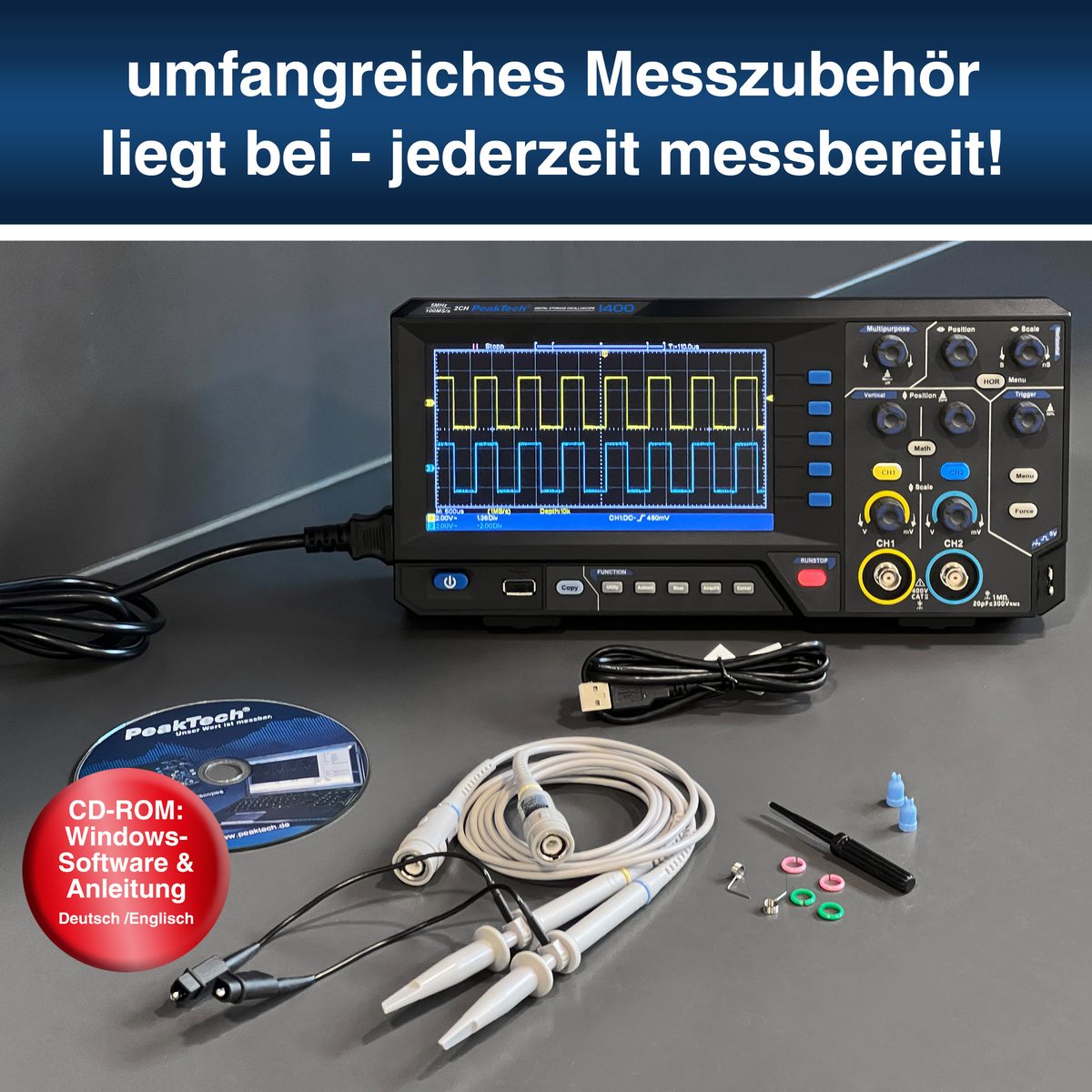

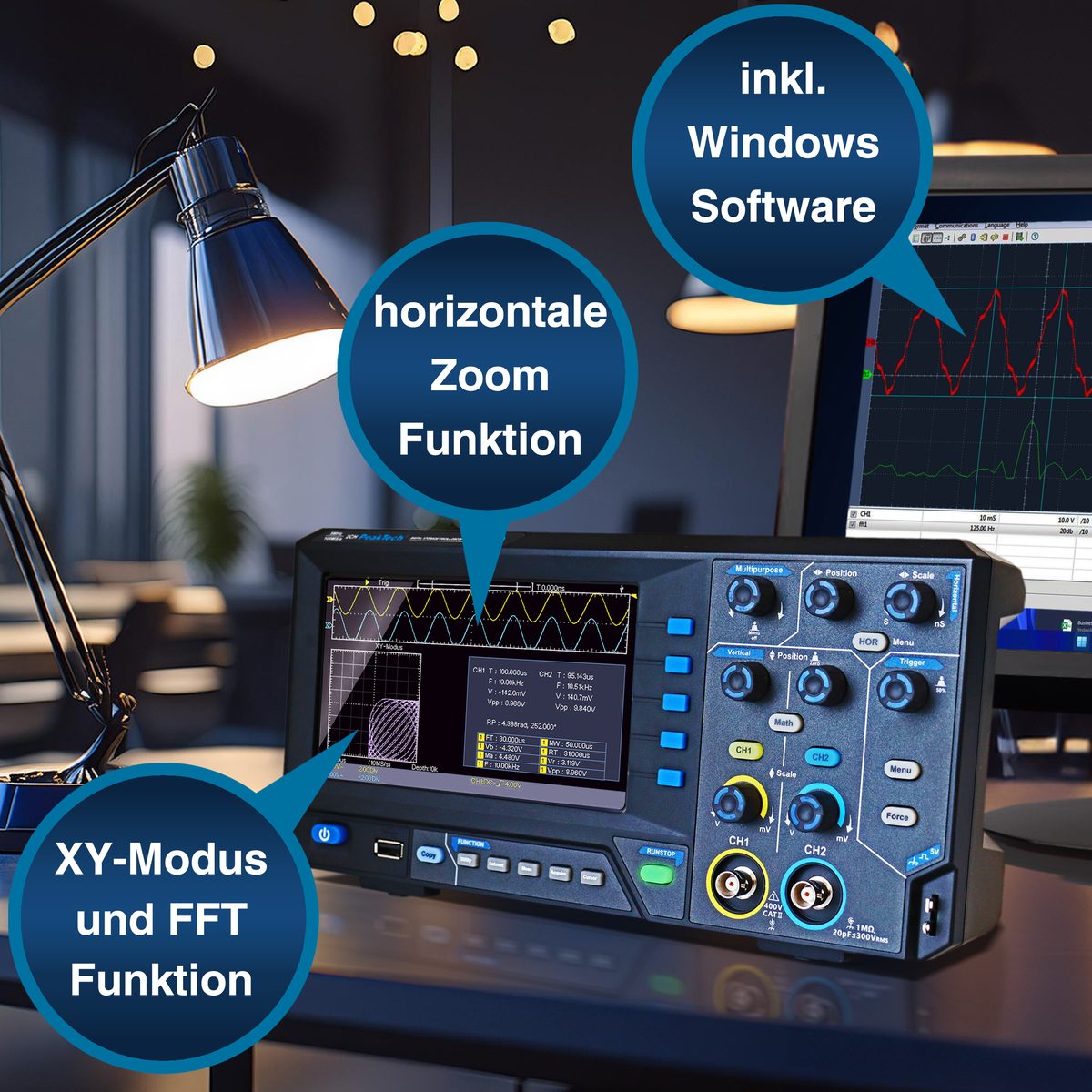

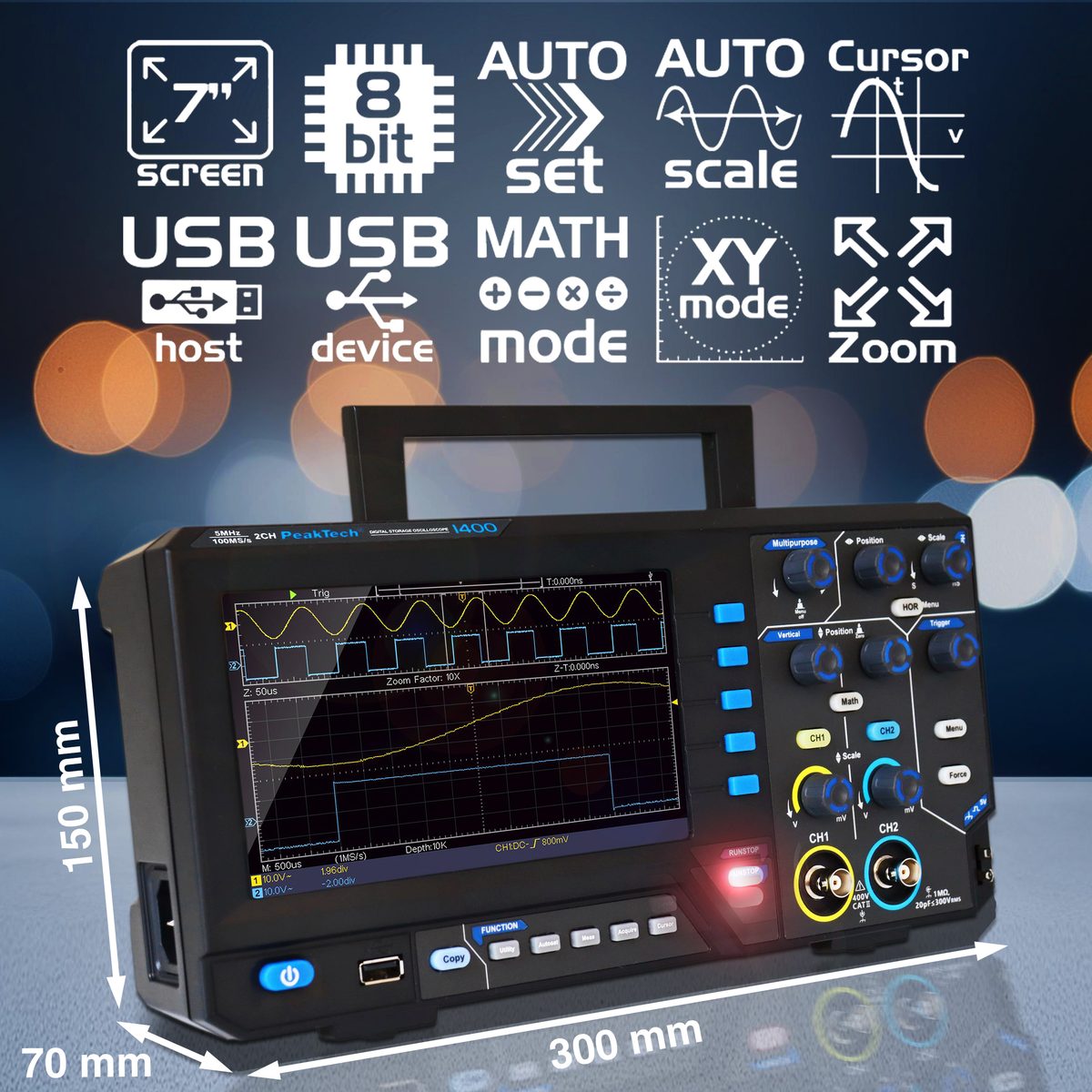

Digital storage oscilloscope for education and private use, with Autoset, Autoscale, mathematical measurements, FFT, cursors, XY mode and zoom. Stores 16 waveforms internally or exports TXT, CSV and BIN files to USB memory for reading with the supplied software. Configurations can be saved internally and screenshots to USB memory. Autoset quickly displays signals; Autoscale refines waveform scaling. All settings can also be adjusted manually with the keys.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1404
- Sampling 1 CH
- 1 GS/s
- Sampling 2 CH
- 500 MS/s
- USB
- Yes
- Bandwidth
- 100 MHz
- Channels
- 2 channels
- Display Type
- Colour TFT
- Hor. scale max.
- 1000 s/div
- Hor. scale min.
- 2 ns/div
- Mains voltage
- 110/240 V AC; 50/60 Hz
- Memory depth
- 10 000 points
- Resolution
- 800 × 480 pixels
- Rise Time
- < 3.5 ns
- Screen size (TFT)
- 17,5 cm (7")
- Vert. resolution
- 8 bit
- Vert. scale max.
- 5 V/div
- Vert. scale min.
- 2 mV/div
from
€297.00
Variants & pricing
Digital storage oscilloscope, 100 MHz, 2 channels, 1 GS/s, P 1404
P 1404€297.00
