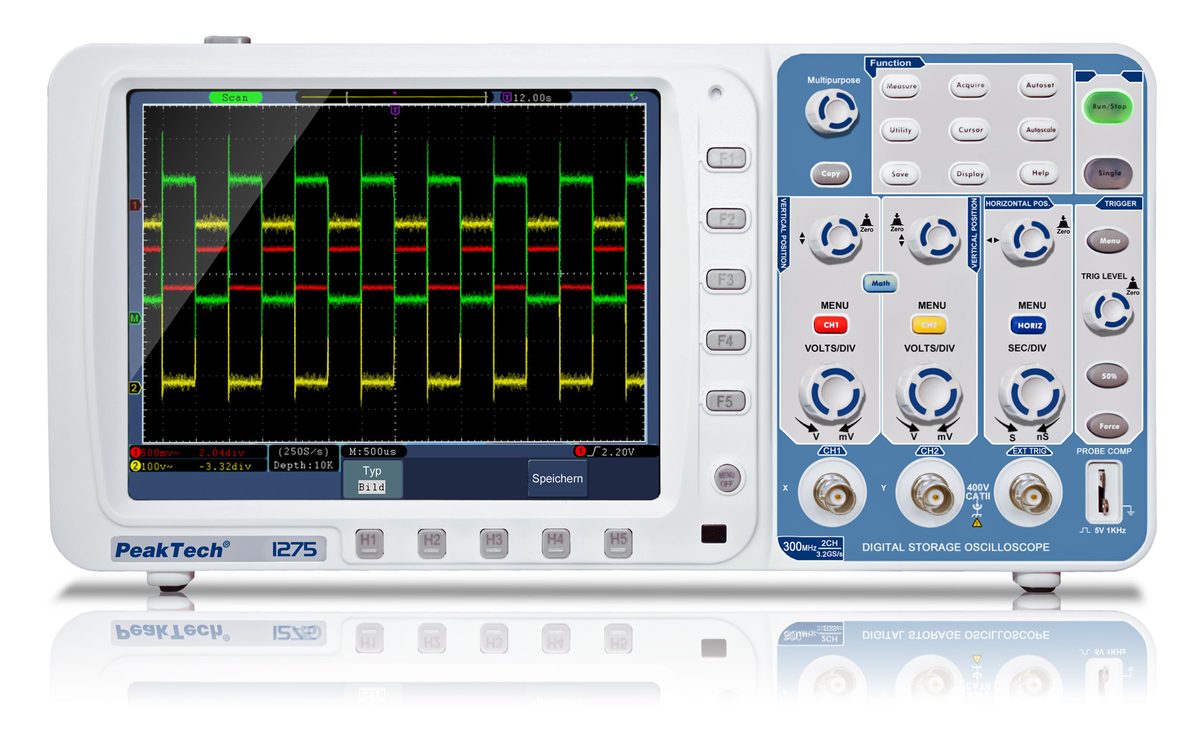

Digital storage oscilloscope, 300 MHz, 2 channels, 3.2 GS/s, P 1275
Two-channel digital storage oscilloscope with 300 MHz bandwidth, high-resolution colour TFT display and sampling up to 3.2 GS/s.
Autoset finds a suitable waveform display; Autoscale adjusts the time-base scaling.
Memory depth of 10 million points supports daily signal analysis in industry, laboratories and training.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1275
- Sampling 1 CH
- 3.2 GS/s
- Sampling 2 CH
- 1.6 GS/s
- USB
- Yes
- Bandwidth
- 300 MHz
- Battery
- Li-Po 8000 mAh (optional)
- Channels
- 2 channels
- Display Type
- Colour TFT
- Hor. scale max.
- 100 s/div
- Hor. scale min.
- 1 ns/div
- LAN
- Yes
- Mains voltage
- 110/240 V AC; 50/60 Hz
- Memory depth
- 10 000 000 points
- Resolution
- 800 × 600 pixels
- Rise Time
- < 1.17 ns
- Screen size (TFT)
- 20 cm (8")
- VGA
- Yes
- Vert. resolution
- 8 bit
- Vert. scale max.
- 10 V/div
- Vert. scale min.
- 2 mV/div
from
€1,793.00
Variants & pricing
Digital storage oscilloscope, 300 MHz, 2 channels, 3.2 GS/s, P 1275
P 1275€1,793.00
