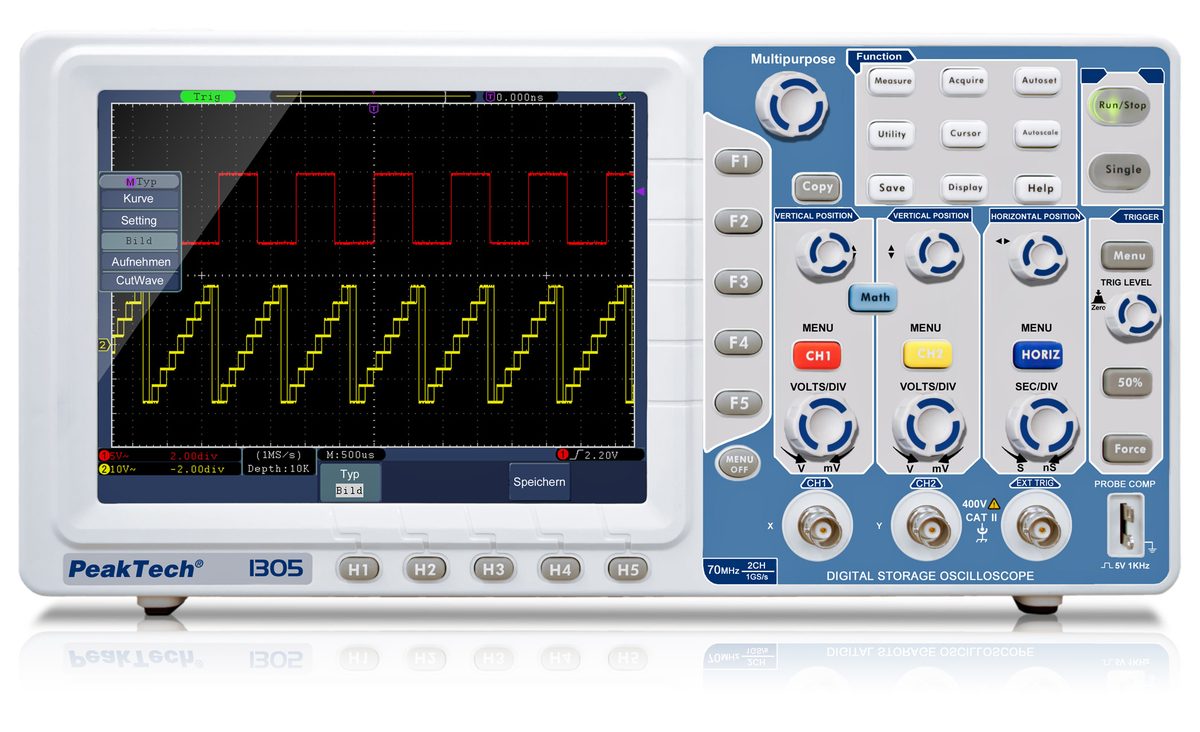

Digital storage oscilloscope, 70 MHz, 2 channels, 1 GS/s, P 1305
Two-channel digital storage oscilloscope with 70 MHz bandwidth, high-resolution colour TFT display and sampling up to 1 GS/s. Includes XY mode, FFT and an integrated frequency counter. LAN and USB transfer data to a PC; waveforms can also be saved to a USB stick.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1305
- Sampling 1 CH
- 1 GS/s
- Sampling 2 CH
- 500 MS/s
- USB
- Yes
- Bandwidth
- 70 MHz
- Channels
- 2 channels
- Display Type
- Colour TFT
- Hor. scale max.
- 100 s/div
- Hor. scale min.
- 2 ns/div
- LAN
- Yes
- Mains voltage
- 110/240 V AC; 50/60 Hz
- Memory depth
- 100 000 points
- Resolution
- 800 × 600 pixels
- Rise Time
- < 5 ns
- Screen size (TFT)
- 20 cm (8")
- VGA
- Yes
- Vert. resolution
- 8 bit
- Vert. scale max.
- 5 V/div
- Vert. scale min.
- 5 mV/div
from
€594.00
Variants & pricing
Digital storage oscilloscope, 70 MHz, 2 channels, 1 GS/s, P 1305
P 1305€594.00
