Heating, drying & sterilisation
Drying / Heating Oven SWON, Natural Convection, SmartLab, 32/50/105/155 L, 230°C

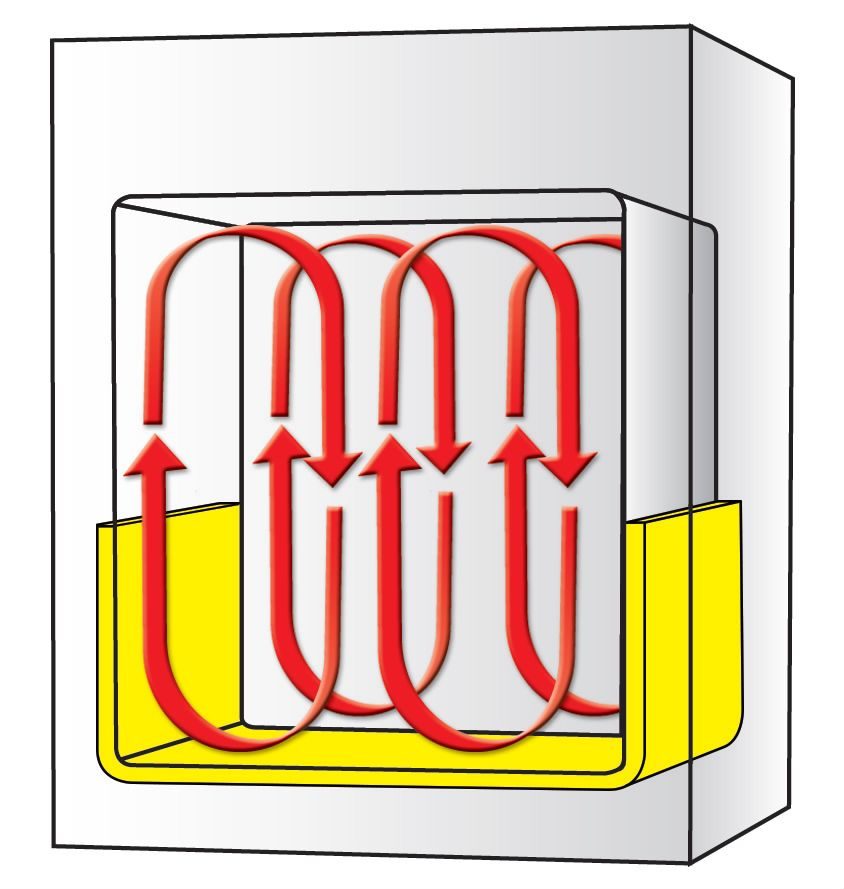

The SWON is a natural-convection drying and heating oven with a SmartLab controller for drying, baking, conditioning, curing, pre-heating and ageing. Optimised natural airflow and 3-sided heating deliver uniform temperature from room temperature +5°C up to 230°C, with ±0.5°C fluctuation at 100°C. It features a stainless steel chamber, powder-coated steel housing with glass-wool insulation, and is also available with a viewing window (SWON-W models).
Specifications
- Brand
- Witeg · DH.SWON05032 +5
- Airflow
- Optimised airflow by natural air circulation
- Heating
- 3-sided heating for temperature uniformity and accuracy
- Temperature range
- Room temperature +5°C to 230°C
- Temperature fluctuation
- ±0.5°C at 100°C
- Chamber
- Stainless steel
- Housing / insulation
- Powder-coated steel housing, glass-wool insulation
- Viewing window
- Available (SWON-W models)
- Shelves
- 2x stainless steel wire shelves included
- Controller
- Smart-Lab™ controller with 4″ TFT LCD touchscreen
- Connectivity
- WiRe™ app service, remote control, USB data transfer, Wi-Fi
- Certification
- CE & UL/CUL, serial-number traceability
from
€1,952.00
Variants & pricing
Drying / Heating Oven SWON, Natural Convection, SmartLab, 32/50/105/155 L, 230°C
DH.SWON05032€1,952.00Drying / Heating Oven SWON, Natural Convection, SmartLab, 32/50/105/155 L, 230°C
DH.SWON05050€2,009.00Drying / Heating Oven SWON, Natural Convection, SmartLab, 32/50/105/155 L, 230°C
DH.SWON05105€2,422.00Drying / Heating Oven SWON, Natural Convection, SmartLab, 32/50/105/155 L, 230°C
DH.SWON05155€2,717.00Drying / Heating Oven SWON, Natural Convection, SmartLab, 32/50/105/155 L, 230°C
DH.SWON07105€2,481.00Drying / Heating Oven SWON, Natural Convection, SmartLab, 32/50/105/155 L, 230°C
DH.SWON07155€2,801.00
