Power supplies & measuring instruments

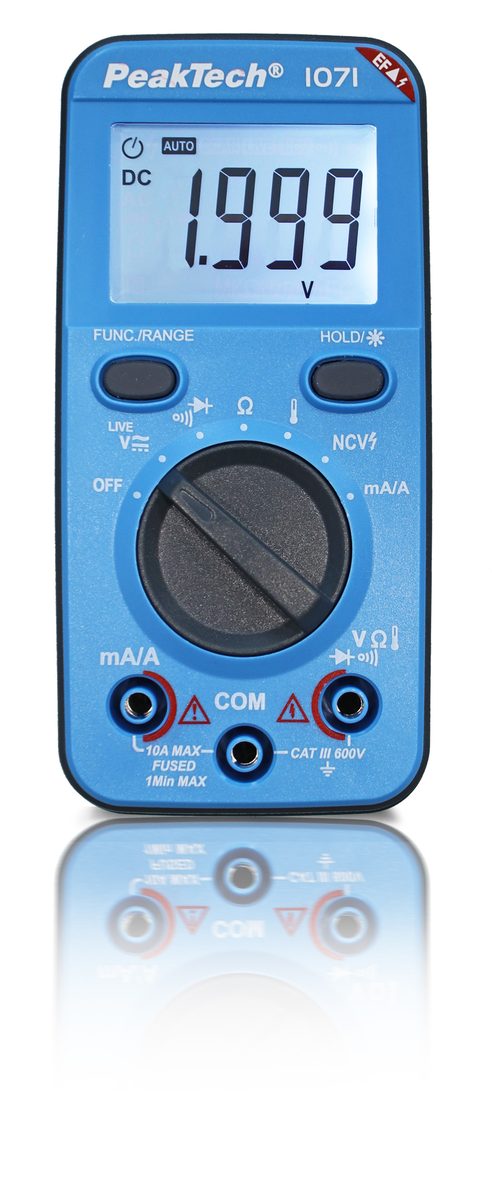

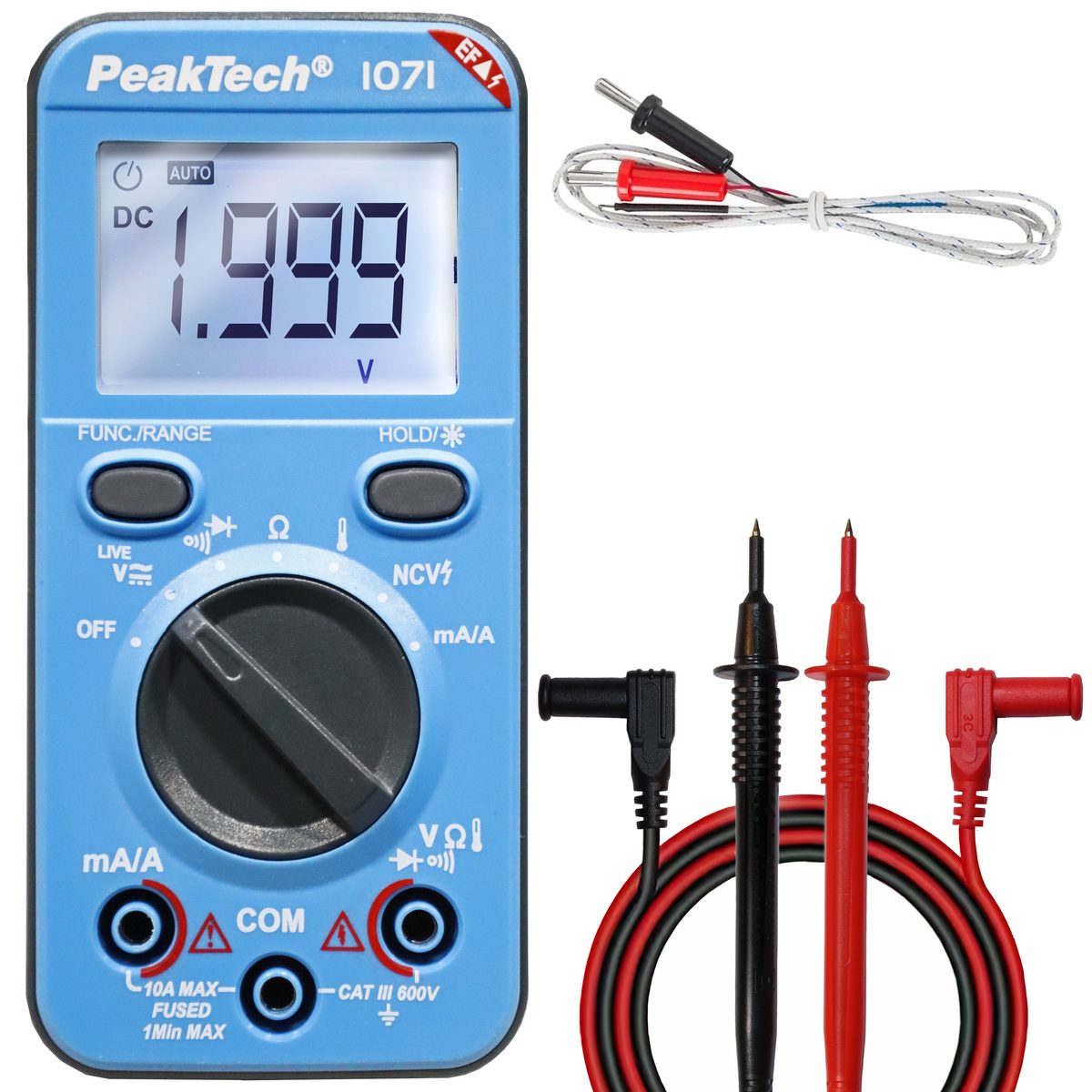

Multimeter, 600 V AC/DC, NCV and LIVE test, P 1071

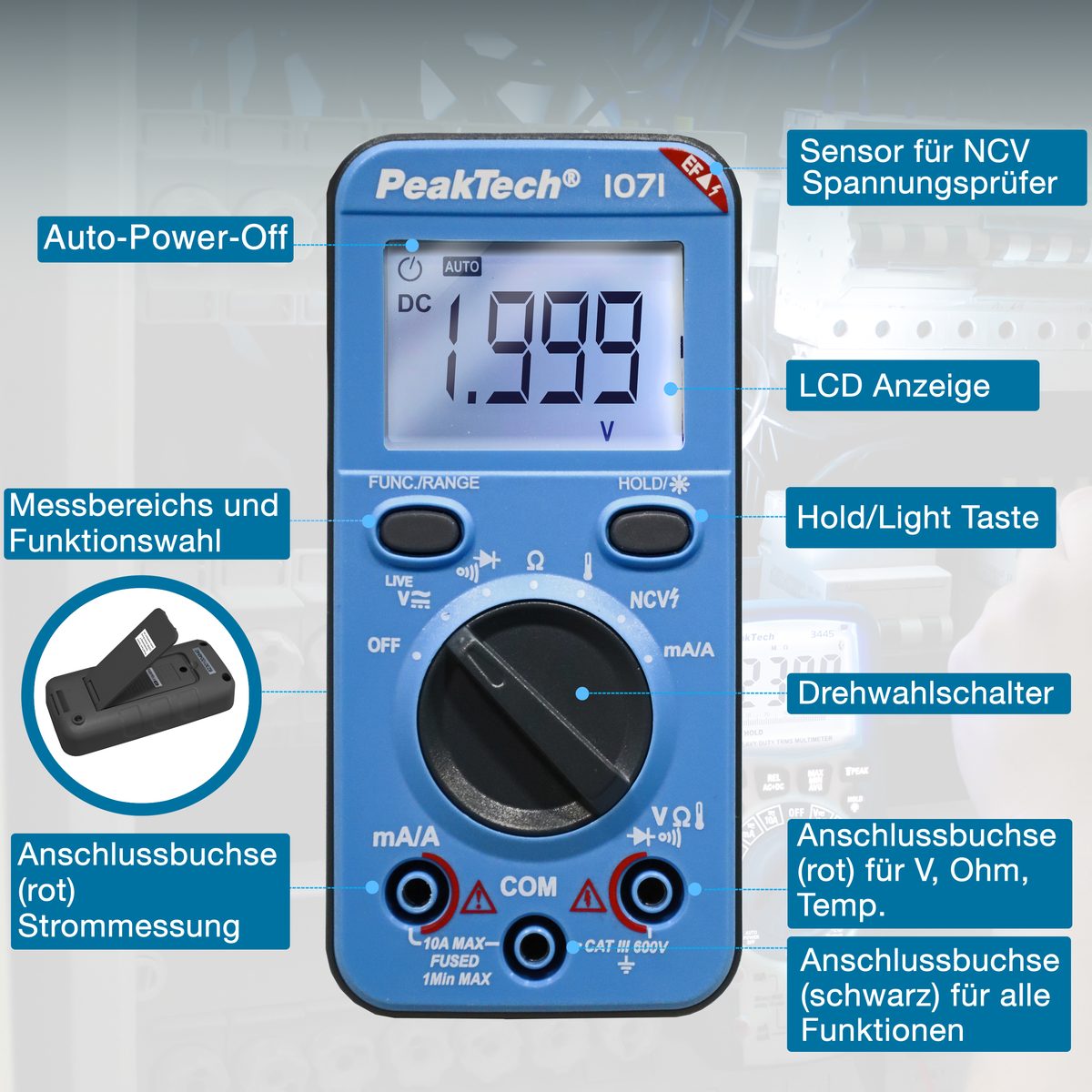

Compact multimeter for up to 600 V AC/DC, rated CAT III. NCV provides non-contact voltage detection; the single-pole LIVE test distinguishes phase and neutral conductors. The 2000-count LCD has blue backlighting that turns red when ranges are exceeded or NCV detects voltage. Measures voltage, AC/DC current, resistance and temperature, with continuity and diode tests. Suitable for training, technical work and private use.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1071
- Basic Accuracy DC
- ± 0,5 %
- Battery
- 1,5 V AAA
- Display counts
- 2 000
- Display Type
- LCD
- LED-lamp
- Yes
- NCV
- Yes
- Over voltage category
- CAT III 600 V
- Range selection
- Automatic
- V DC max.
- 600 V
- A AC max.
- 10 A
- OHM max.
- 20 MΩ
- Temp. max.
- 1200 °C
- Temp. min.
- -200 °C
- mA DC max.
- 2000 mA
- V AC max.
- 600 V
- A DC max.
- 10 A
- mA AC max.
- 2000 mA
from
€18.00
Variants & pricing
Multimeter, 600 V AC/DC, NCV and LIVE test, P 1071
P 1071€18.00
