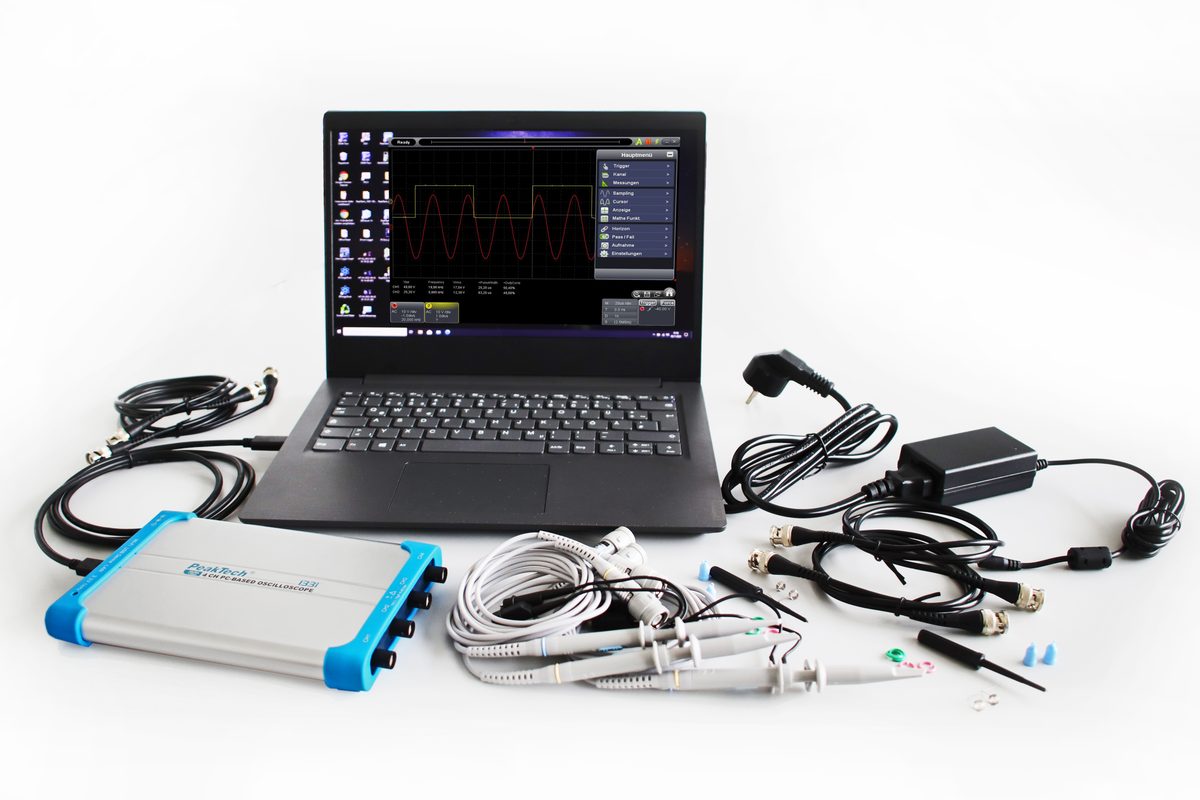

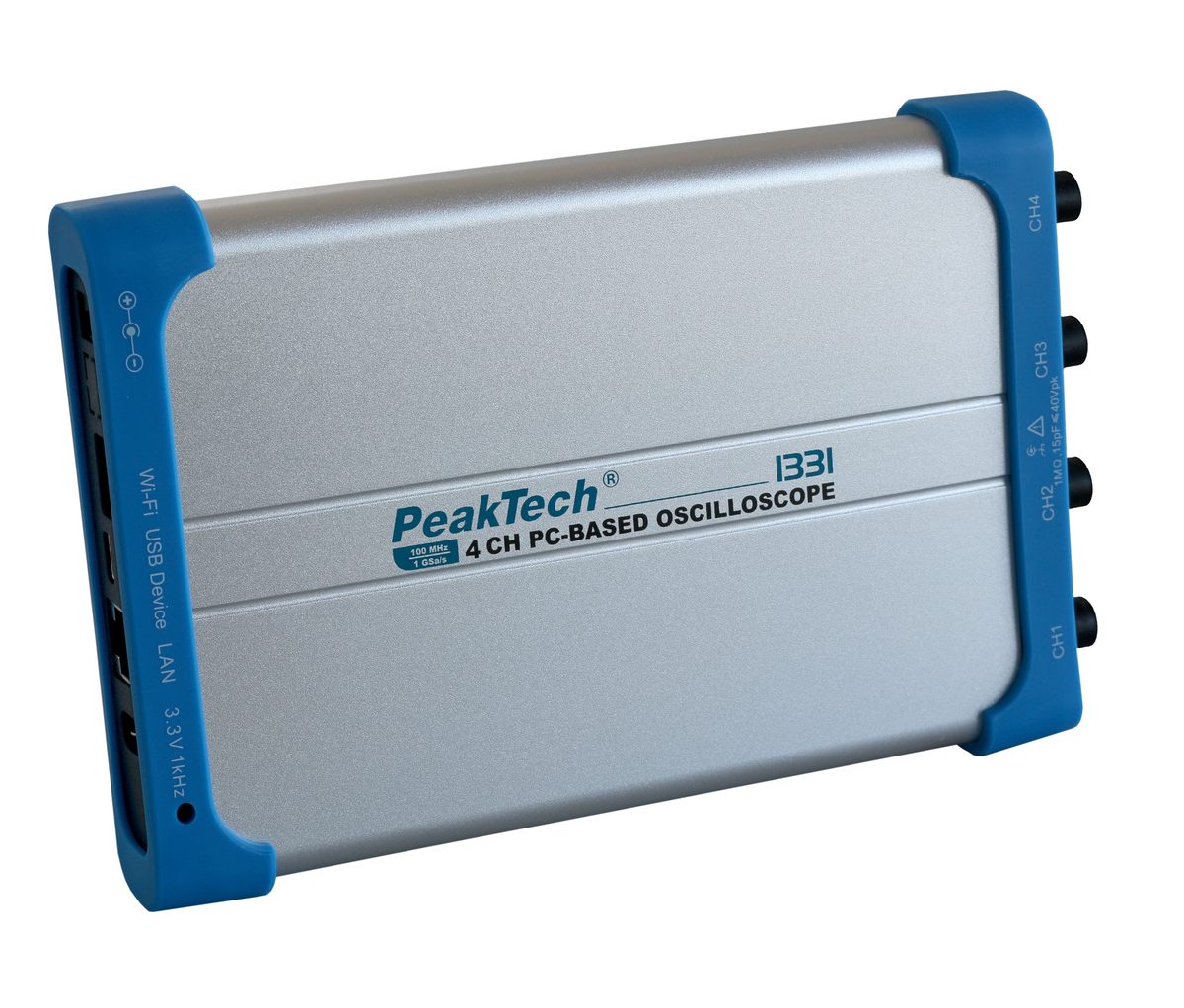

PC oscilloscope, 100 MHz, 4 channels, 1 GS/s, USB and LAN, P 1331
Four-channel oscilloscope for mobile laptop use or permanent installation in control cabinets. Autoset finds a suitable waveform display; Autoscale adjusts the time base. Software controls all functions, including triggers, channel settings, measurements, sampling, cursors and mathematics. PC data transfer uses an isolated LAN connection or USB; USB also supplies power.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1331
- Sampling 1 CH
- 1 GS/s
- Sampling 2 CH
- 500 MS/s
- Sampling 4 CH
- 250 MS/s
- USB
- Yes (isolated)
- Bandwidth
- 100 MHz
- Channels
- 4 channels
- Hor. scale max.
- 100 s/div
- Hor. scale min.
- 1 ns/div
- Memory depth
- 10 000 000 points
- Rise Time
- < 3.5 ns
- Vert. resolution
- 8 bit
- Vert. scale max.
- 5 V/div
- Vert. scale min.
- 2 mV/div
from
€605.00
Variants & pricing
PC oscilloscope, 100 MHz, 4 channels, 1 GS/s, USB and LAN, P 1331
P 1331€605.00
