Photo 1 of 6
Power supplies & measuring instruments

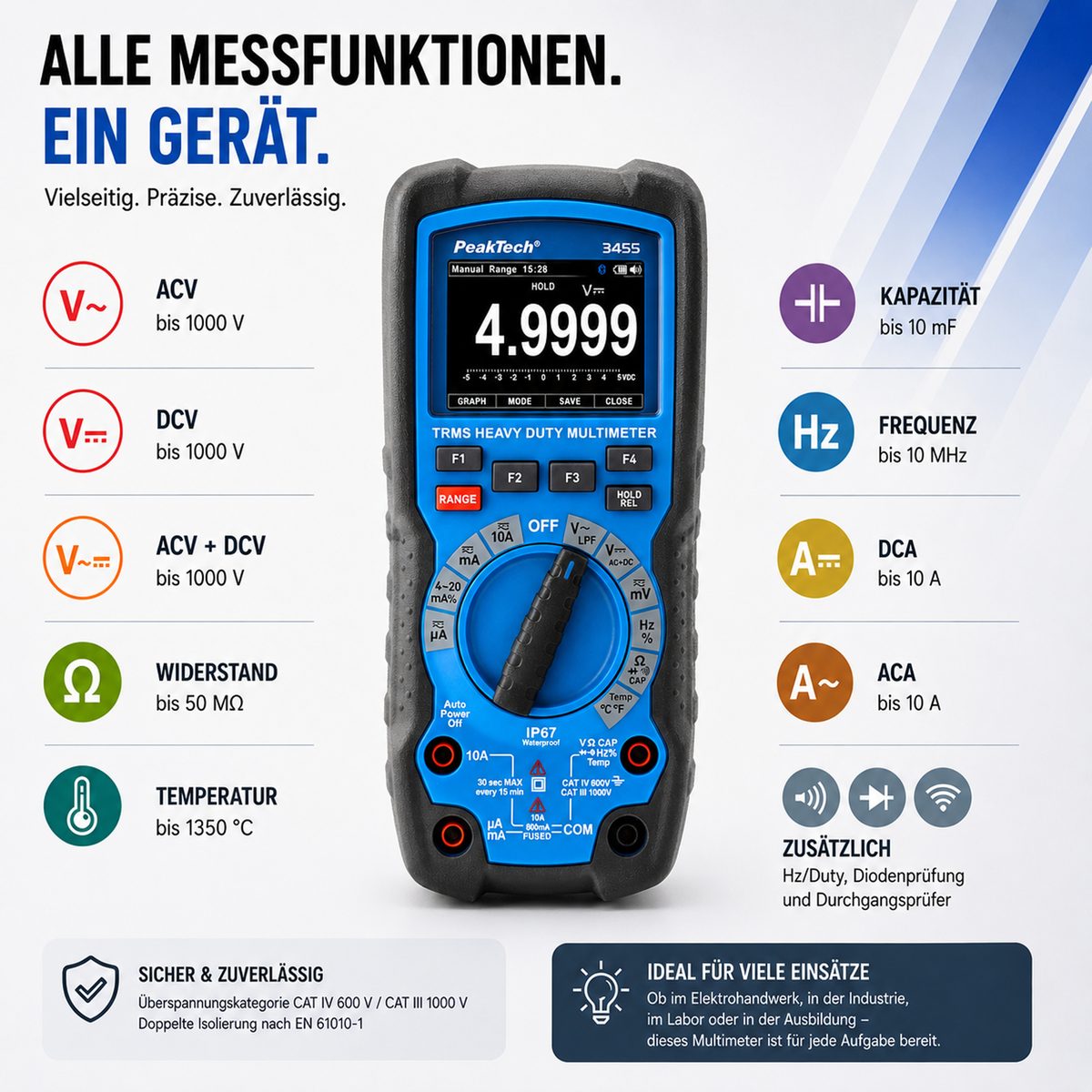

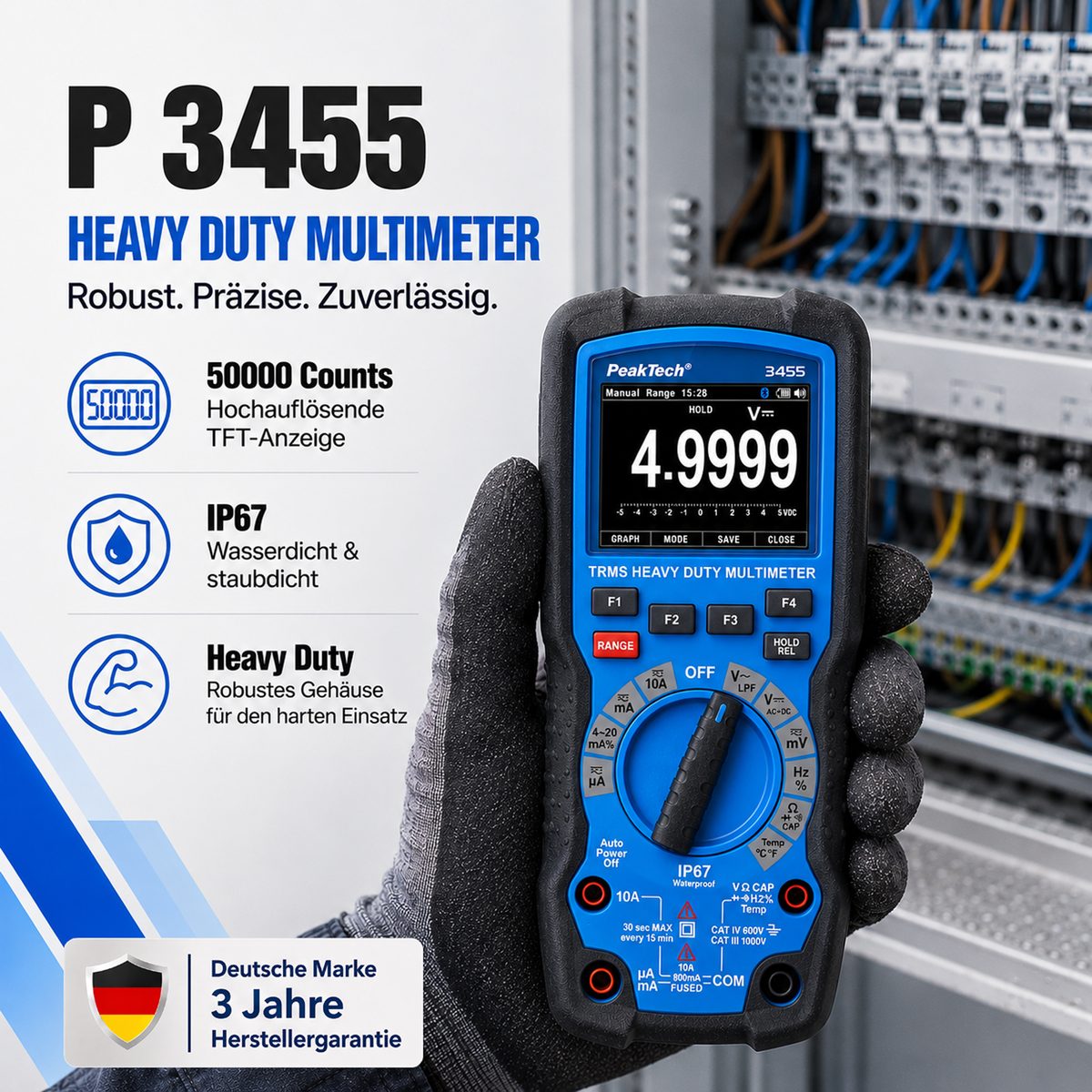

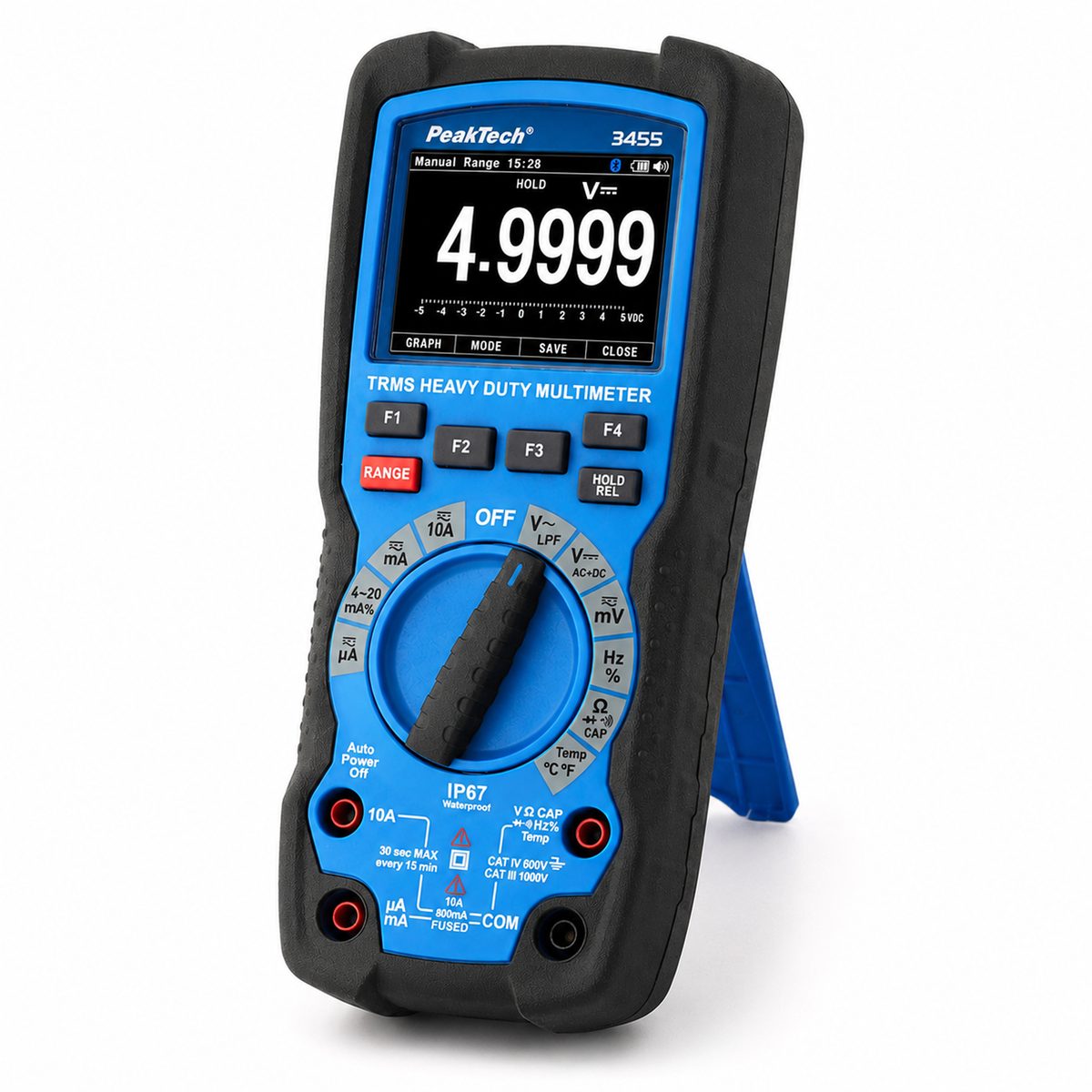

Rugged graphical multimeter, 50,000 counts, TFT, 1000 V AC/DC, True RMS, IP67, Bluetooth, P 3455
Rugged True RMS digital multimeter for diagnostic, testing and maintenance work in electrical trades, industry, service, laboratories and training.

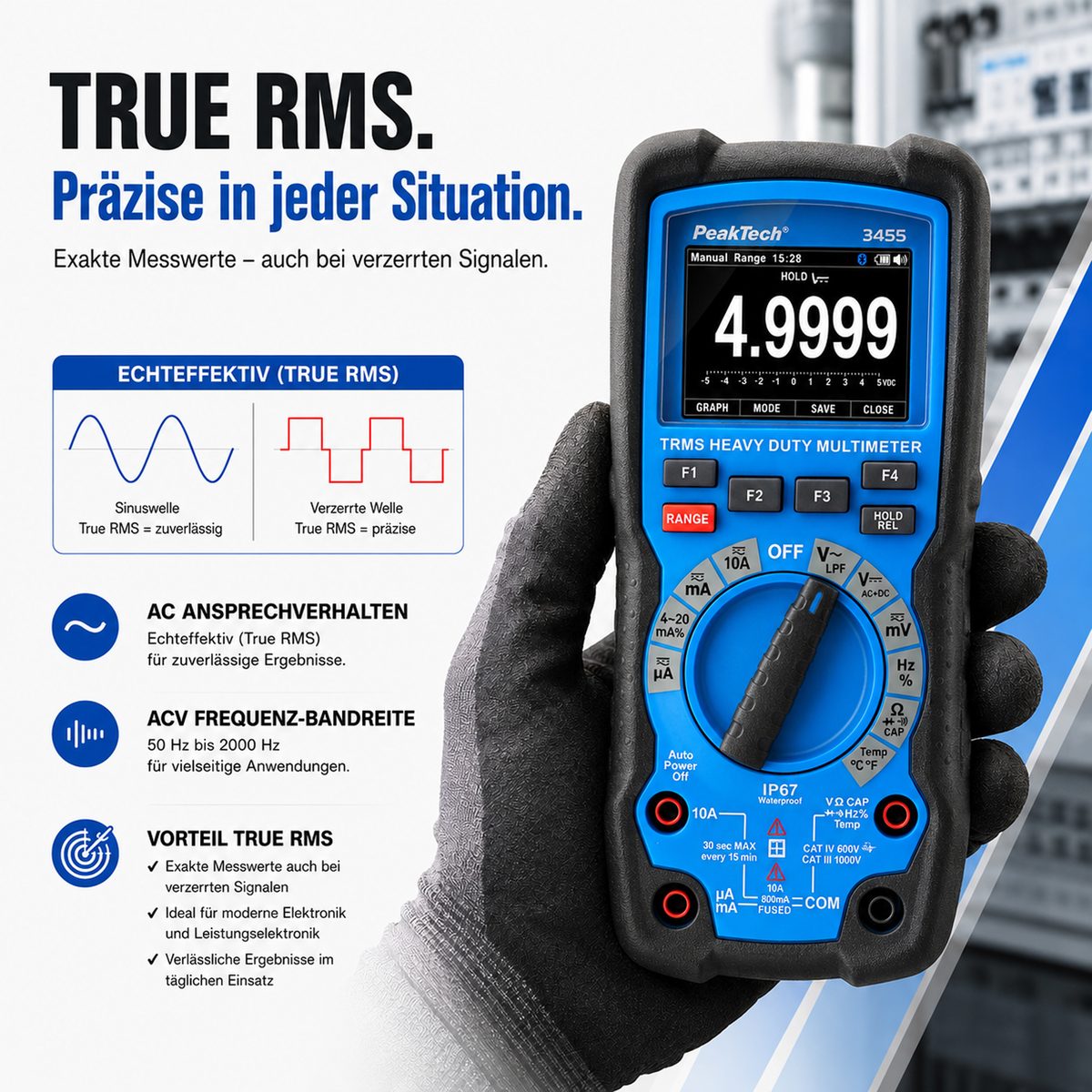

True RMS measures distorted and non-sinusoidal signals, including applications with frequency converters, switched-mode power supplies and industrial controls. Measures voltage, current, resistance and other electrical parameters.
The 50,000-count colour TFT display resolves small changes without premature range switching. Basic DC voltage accuracy ±0.05%.

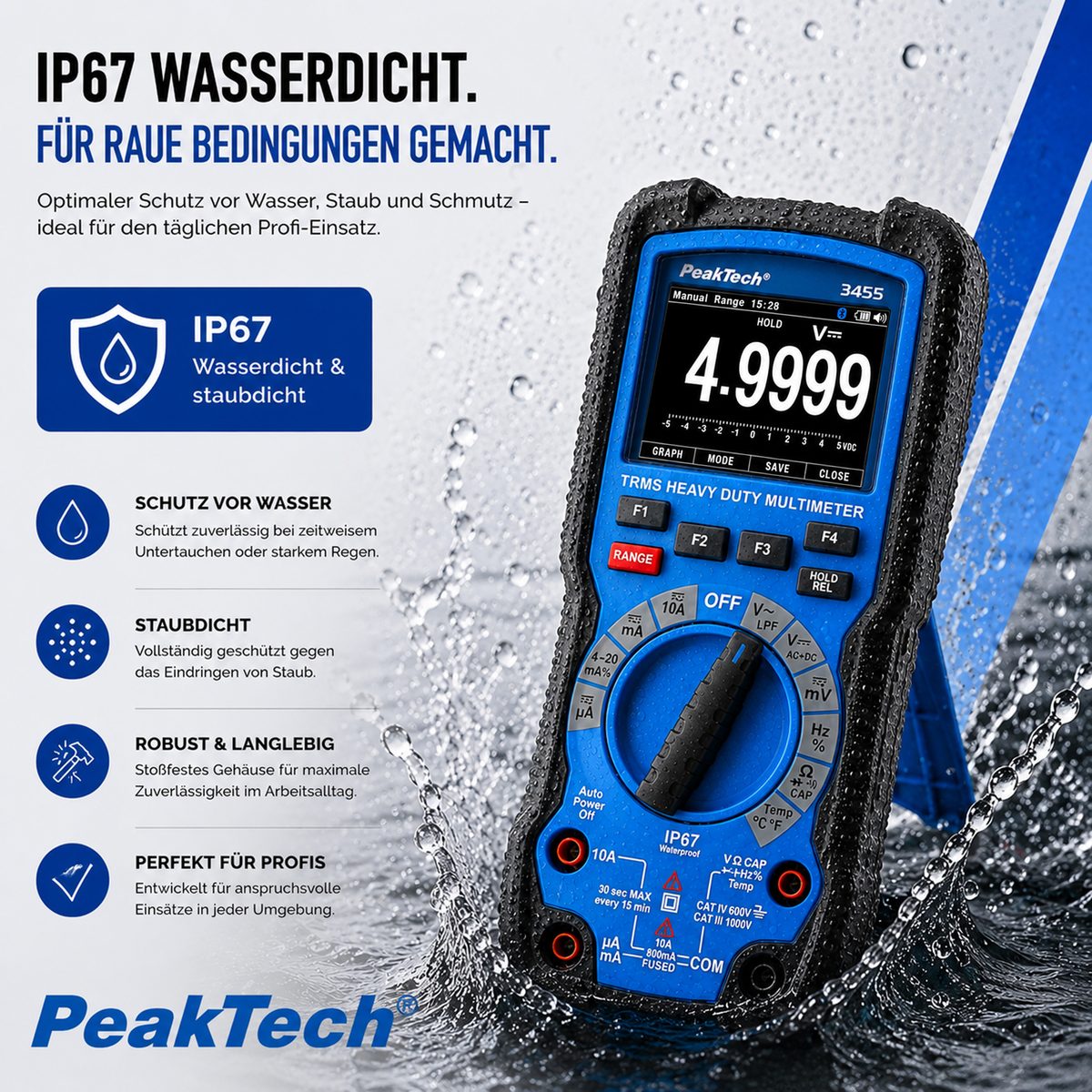

Bluetooth enables real-time display and storage in MeterApp. Internal memory supports data logging and later retrieval. Multifunction keys below the display control the graphical menu. The IP67 housing protects against dust, dirt and water; a shock-resistant rubber casing improves grip.
Accessible controls and a readable display support extended measurements. High measurement categories provide protection for professional work on low-voltage systems.
Suitable for daily use in trades, industry, maintenance, public agencies and technical emergency or disaster relief services.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 3455
- Basic Accuracy DC
- ± 0,05 %
- Battery
- Li-Po 1200 mAh
- Bluetooth
- Yes
- Capacitance max.
- 10 mF
- Display counts
- 50 000
- Display Type
- Colour TFT
- GS - Tested safety
- □
- Ingress protection
- IP 67
- Memory (internal)
- Yes
- OHM resolution min.
- 0,01 Ω
- Over voltage category
- CAT III 1000 V, CAT IV 600 V
- Range selection
- Automatic
- Screen size (TFT)
- 5,6 cm (2,2")
- True RMS
- Yes
- V AC resolution min.
- 0,01 mV
- V DC Resolution min.
- 0,01 mV
- V DC max.
- 1000 V
- A AC max.
- 10 A
- Hz max.
- 10 MHz
- OHM max.
- 50 MΩ
- Temp. max.
- 1350 °C
- Temp. min.
- -200 °C
- mA DC max.
- 500 mA
- mV DC max.
- 500 mV
- µA DC max.
- 5000 µA
- V AC max.
- 1000 V
- mV AC max.
- 500 mV
- A DC max.
- 10 A
- mA AC max.
- 500 mA
- µA AC max.
- 5000 µA
from
€230.00
Variants & pricing
Rugged graphical multimeter, 50,000 counts, TFT, 1000 V AC/DC, True RMS, IP67, Bluetooth, P 3455
P 3455€230.00
