Power supplies & measuring instruments

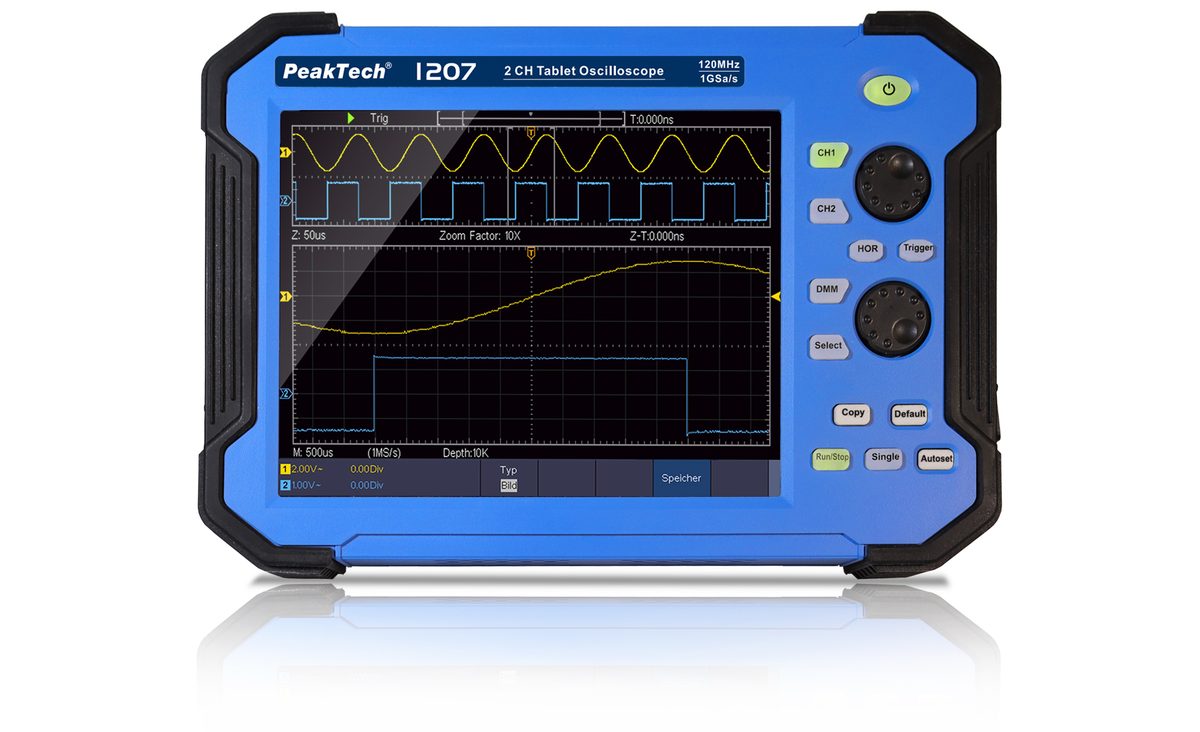

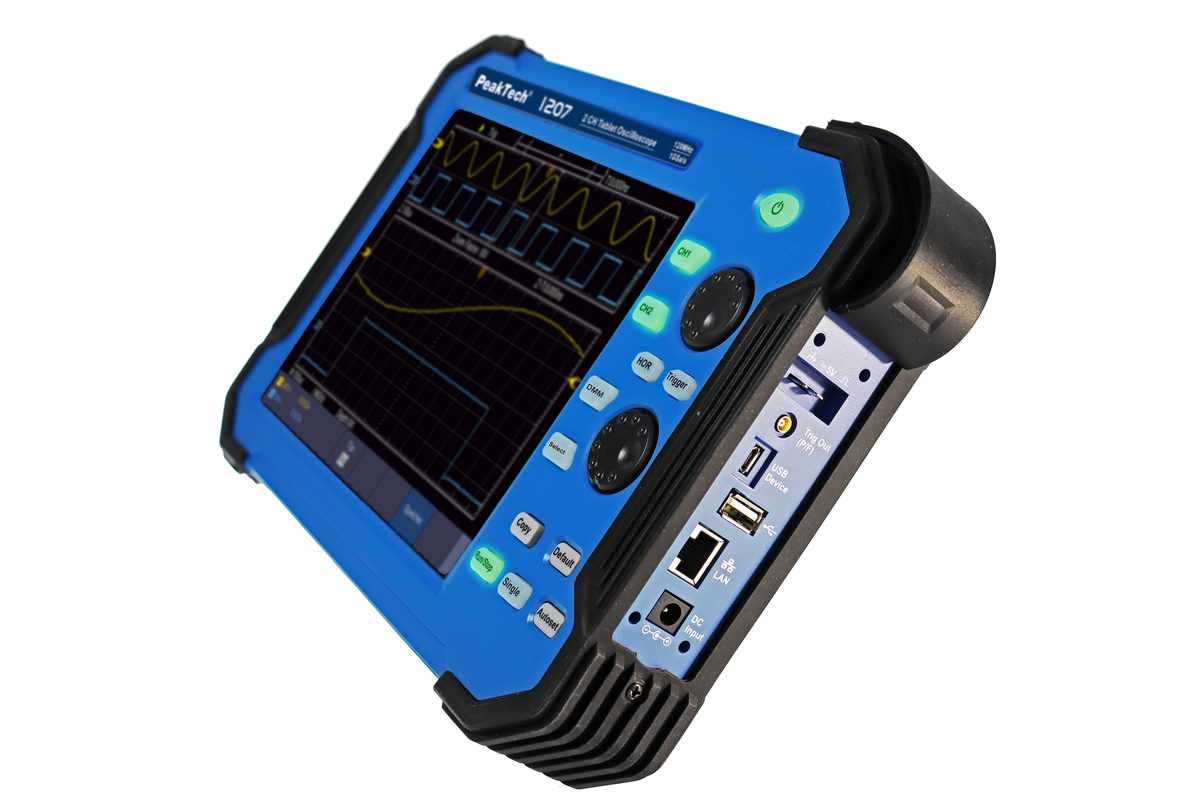

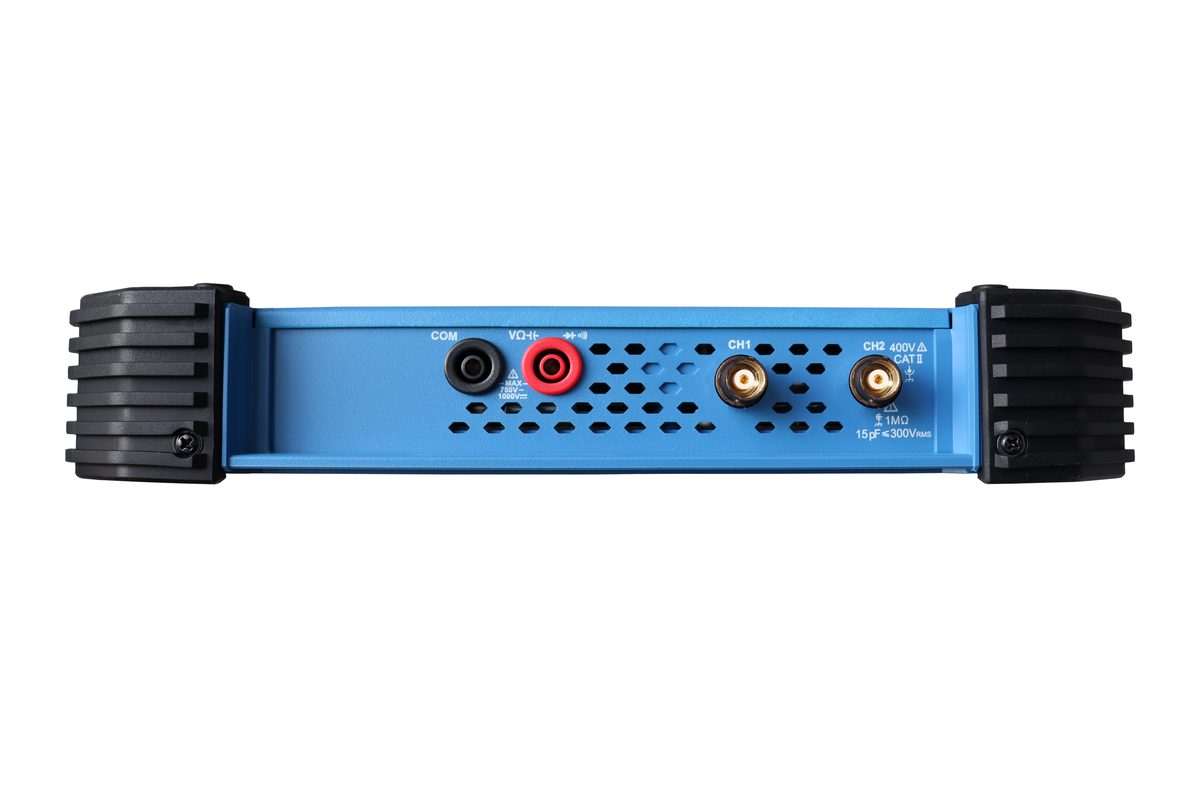

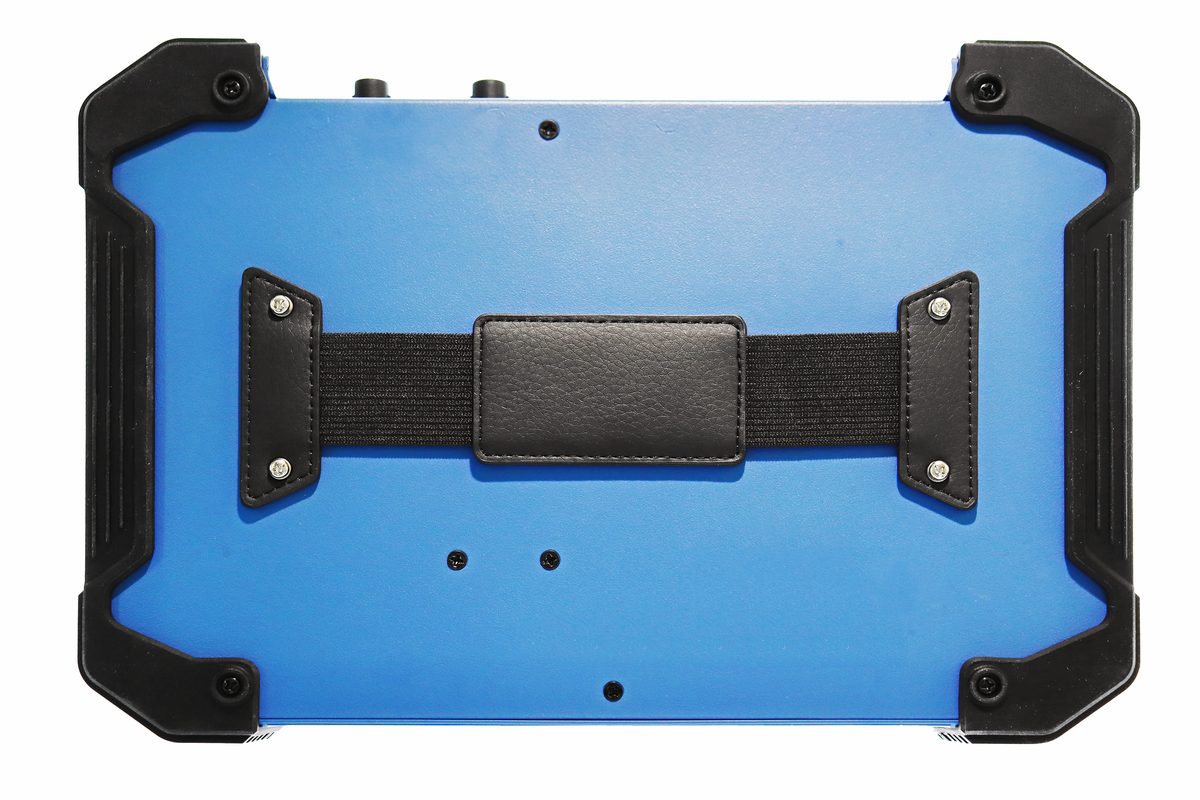

Tablet oscilloscope, 120 MHz, 2 channels, 1 GS/s, P 1207
Tablet-format oscilloscope with the measurement capabilities of a stationary instrument. Two channels, 120 MHz bandwidth and sampling up to 1 GS/s. An integrated multimeter extends its measurement applications. Settings are controlled using the 8-inch touchscreen or function keys.
Portable design for a wide range of electrical engineering applications.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1207
- Sampling 1 CH
- 1 GS/s
- Sampling 2 CH
- 500 MS/s
- USB
- Yes
- Bandwidth
- 120 MHz
- Battery
- Li-Ion 7,4 V 8000 mAh
- Channels
- 2 channels
- Display Type
- TFT touchscreen
- Hor. scale max.
- 1000 s/div
- Hor. scale min.
- 2 ns/div
- LAN
- Yes
- Mains voltage
- 110/240 V AC; 50/60 Hz
- Memory depth
- 40 000 000 points
- Resolution
- 800 × 600 pixels
- Rise Time
- < 2.9 ns
- Screen size (TFT)
- 20 cm (8")
- Vert. resolution
- 8 bit
- Vert. scale max.
- 10 V/div
- Vert. scale min.
- 1 mV/div
- Integr. DMM
- Yes
from
€737.00
Variants & pricing
Tablet oscilloscope, 120 MHz, 2 channels, 1 GS/s, P 1207
P 1207€737.00
